Product Description:
Mechanical Agitators Are Widely Used In: Chemical, Health production, Water Treatment, Scientific Research
Units, and Food and other High-Viscosity Media industries.
According to the physical properties, capacity, and stirring
purpose of different media, the corresponding stirrer can be
selected. This can make the reaction mixture mix more uniformly,
thereby playing a significant role in promoting the reaction speed
and improving production efficiency.
Features:

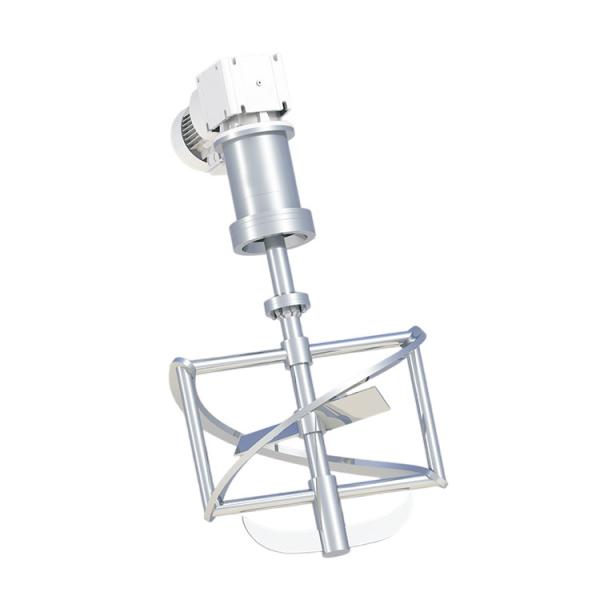

The blade of the spiral belt agitator consists of a spiral belt,
and there are two or three spiral belts installed on the screw at
the center of the agitator. The pitch of the spiral belt agitator
determines the outer diameter of the spiral belt. This agitator is
typically operated in a laminar flow state, making it suitable for
mixing high viscosity liquids and quasi-plastic fluids.
The double-axis double-speed agitator combines high-speed
dispersing and low-speed strong stirring, providing excellent
stirring for medium to high viscosity and thixotropic materials.
The configuration can be customized according to customers'
material characteristics and production process requirements.
Customers have a variety of impellers to choose from.
In the process of rotation, the wall-scraping anchor mixes the
slurry, driving the material to undergo both axial and radial
rotation for thorough mixing. This agitator is equipped with
tetrafluoron scraping boards around the stirrer to prevent residue
from accumulating on the tank wall and bottom. Additionally, the
middle high-speed dispersing plate generates high shear force under
high-speed conditions, ensuring even dispersion of materials in a
short time. This solves the mixing and wall-sticking issues caused
by high viscosity and density materials that traditional agitators
may struggle with.
Technical Parameters:
| Material | SUS304, SUS316L |
| Product Name | Mechanical Stirrer |
| Product Type | Cosmetic |
| Power Source | Electric |
| Voltage | 230V/50Hz |
| Working Temperature | -30-200℃ |
| Configuration | Vertical |
| Mixer Type | Agitator |
| Material Processed | Chemicals, Liquid |
| Range of Spindle Speed (r.p.m) | 180 - 380 R.p.m |
Applications:
Designed and manufactured in China, this pump and agitator product
meets international standards and holds a CE certification,
ensuring its quality and safety. The minimum order quantity is 1
set, and the price is open for negotiation, making it accessible
for different business needs.
The packaging details include a sturdy wooden case for secure
transportation, and the delivery time is guaranteed to be within 35
days after receiving the deposit. Payment terms are flexible, with
30% TT required as deposit and the remaining 70% before shipping.
With a supply ability of 25 sets per month, the MachMix-Series Pump
And Agitator is a reliable choice for businesses with varying
production demands. Its vertical configuration and agitator mixer
type make it suitable for tasks such as reactor agitation and
chemical mixing.
Constructed from high-quality materials such as SUS304 and SUS316L,
this pump and agitator product is durable and resistant to
corrosion, ensuring a long lifespan and consistent performance. The
voltage requirement is 230V/50Hz, making it compatible with
standard industrial power sources.
Support and Services:
Our Product Technical Support team for the Pump and Agitator
product is dedicated to providing you with expert assistance for
any issues or questions you may have. Whether you need help
troubleshooting a problem, understanding product specifications, or
guidance on maintenance, our team is here to help.
In addition to technical support, we also offer a range of services
to ensure that your Pump and Agitator product performs optimally.
These services may include installation support, training programs,
regular maintenance schedules, and access to spare parts.
