PFS-2 Glass Syringe Filling Plugging Machine 3.5 KW Aseptic Equipment

Ask Lasest Price
Brand Name :	LTPM China
Model Number :	PFS-2
Certification :	SGS, CE
Price :	Negotiation
Payment Terms :	T/T, L/C, D/P, Cash, Paypal
Supply Ability :	15sets/month
Delivery Time :	25days

Add to Cart

Product Details
Company Profile

PFS-2 Glass Syringe Filling Plugging Machine 3.5 KW Aseptic Equipment

This product is specially designed by our company for the filling of prefilled syringes. It is an automatic packaging equipment for aseptic and efficient filling of syringes. The equipment runs smoothly, is easy to operate, and is equipped with intelligent detection devices. It has high automation, high work efficiency and easy maintenance. It is an ideal equipment for filling and plugging prefilled syringes.

Technical Parameters

Applicable Materials	Liquid and ointment
Applicable Syringe Specifications	0.5,1,2.25,3,5,10,20ml
Number of Filling Heads	2
Number of Capping Heads	2
Filling Accuracy	≤±1-2%
Production Capacity	1200-1800 p/h
Total Power	3.5KW
Voltage	380V/220V 50-60Hz
Compressed Air	0.55-0.75Mpa 15L/S
Dimensions	L1088×W858×H1800mm
Total Weight	350KG

Features

1.This product is widely applicable to SCF (prefilled syringe) syringes from BD, BG, SCHOTT and major domestic manufacturers. Other types of syringes can also be customized.

2.The surface is made of SUS304 stainless steel, and the contact
parts are made of SUS316L stainless steel and medical silicon
rubber, which fully meets the requirements of GMP specifications.

3.The ceramic plunger pump realizes quantitative filling, is
resistant to acid and alkali corrosion, wear-resisting and high
temperature, and has high filling accuracy.

4.The conveying and sorting of the rubber plugs are realized by the
vibratory feeder, which is made of SUS316L stainless steel clean
plate with bright surface treatment and no clean dead corners.

5.It adopts internationally renowned electrical components and
implements interference-free modular control. Synchronous actions
are all controlled by servo motors. Automatic filling and
stoppering are implemented, which is accurate, reliable and easy to
operate.

6.The operation of the motor is controlled by the PLC programming
controller. The human-computer interaction interface monitors and
displays the working status of each station in real time, and
automatically alarms and displays the fault location in real time,
and the fault prompts.

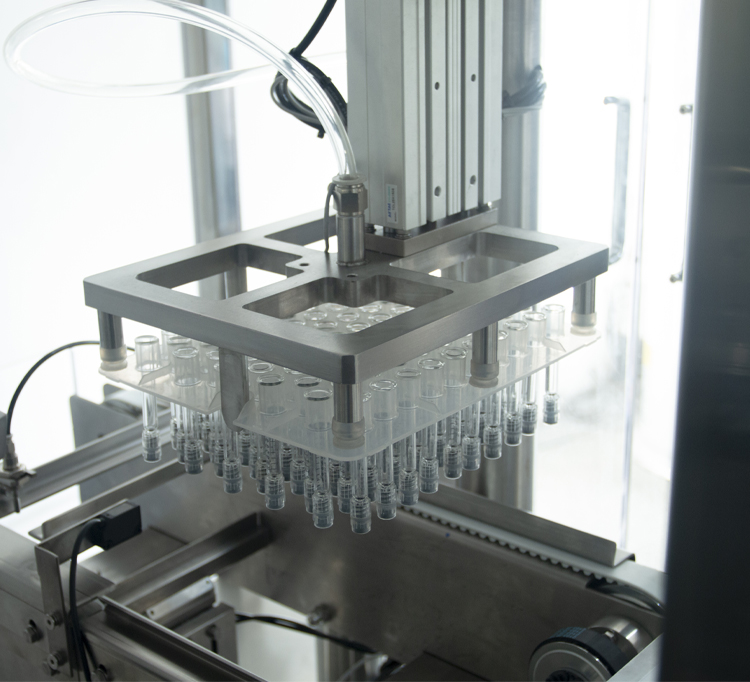

Loading syringe tube
Hang the syringe on the bottle comb plate together with the fetal
membrane at one time.

Filling Pump
Controlled by peristaltic pump, double needle filling, high
precision and easy cleaning.
Final Product
