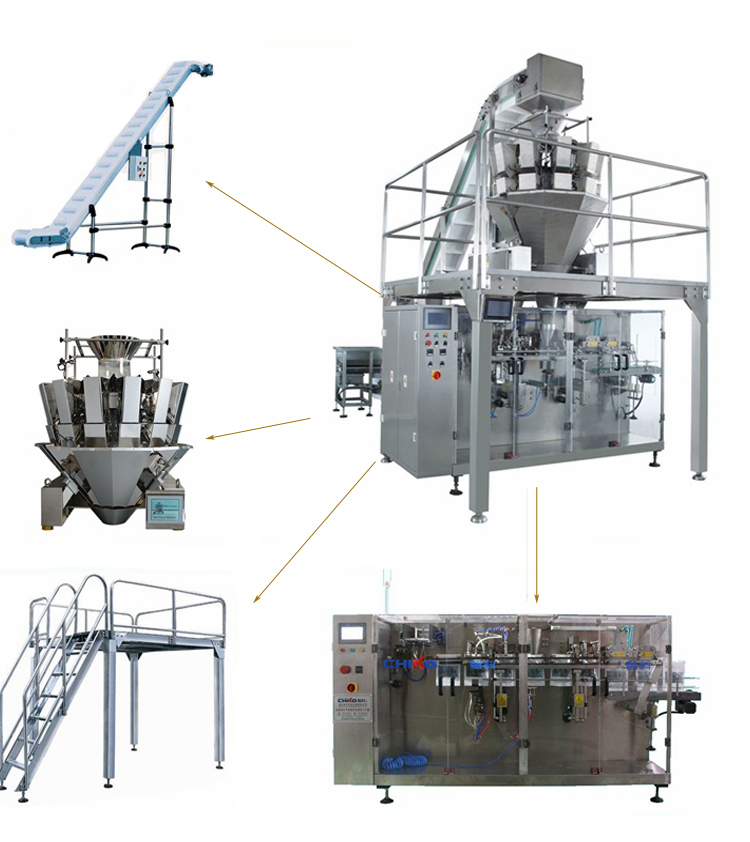

Machine working process
1. Bag pick-up
2. Optional Zipper open and Date print
3. Bag mouth and bottom open
4. Product fill
5. Option: Solid :Nitrogen charge,Powder:Bag mouth clean,
Liquid:Secondary filling
6. First seal
7. Second seal
8. Output
Application
Block: chocolate, candies, cereal, biscuits, cakes, puffed food,
etc
Granule: nuts, capsules, seeds, feeds, pesticides, fertilizers,
etc.
Powder: seasoning, milk powder, washing powder, fine sugar,etc
Main performance and features
1. Easy to operate,adopt advanced PLC from Germany SCHNEIDER, mate
with touch screen and electric control system, the man-machine
interface is friendly
2. Frequency conversion adjusts the speed: this machine uses
frequency changer equipment, can be adjusted within the range
according to the needs of reality in production
3. Safety device: Machine stop at abnormal air pressure, heater
disconnection alarm
4. It machines with the glass safety door. The machine will stop
working when you open the door. So that it could protect the safety
of operators. At the same time, it could prevent dust
5. Product or packing bag contact parts adopt stainless steel or
other materials which accord with the food hygienic requirements,
guarantee hygiene and security of the food
6. With different feeders changed to pack solid, liquid, thick
liquid ,powder and so on.
7. Use no oil vacuum pump and plastic bearing; avoid polluting the
environment in the production.
8. The packing bag suits in extensive range, suit for multi-layer
compound, monolayer PE , PP and so on film.
Technical Specifications:
Working position | eight-working position |
Pouch material | Laminated film PE,PP |
Pouch pattern | stand-up&zipper pouch |
Pouch size | W:100-210mm L:100-350mm |
Filling Scope | 10-5000g( The screw attachment is to be changed) |
Weight Accuracy
| Package weight ≤ 100g, with an error≤±2% 100 — 500g,with an
error≤±1% ≥500G error≤±0.5% |
Speed | 10-45pouches/min(The speed depends on the product status and flling weight)) |
Voltage | 380V 3phase 50HZ/60HZ |
Total power | 8.5KW |
Compress air | 0.6m3/min(supply by user) |
