Description:

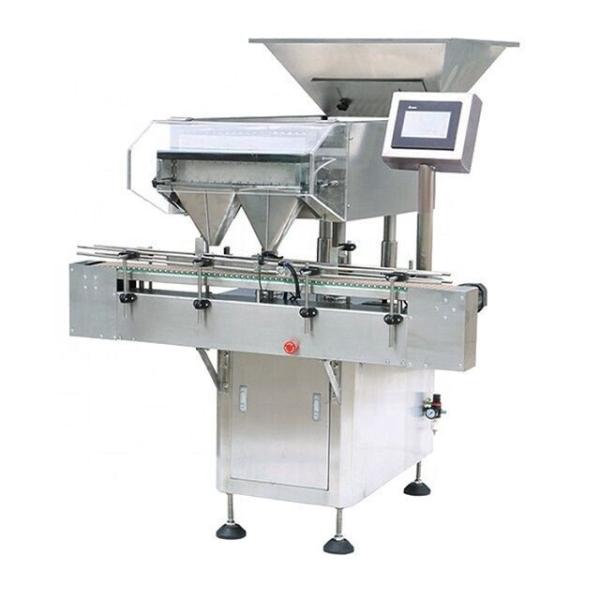

counts grain through 16 strips of channel, medicament can lay off through passing two classes automatically, filling medicines is uniform and counting tablets is precise, being sutiable for all kinds of single bottle filling quantity and tablet type, changing variety without replacing any mould.

It adopts the OMRON PLC control and the sensitive technology of the CCD and its distinguishing rate is high, responding speed is fast, and the operating is the stepless timing. It is very convenient to operate; its control system is controlled by adopting the man machine interface touch screen.Adopting international name brand photo-electricity controlling system, controls when bottles are lacking and blocking then cease automatically, the operating is stable and reliable. Materials touching with the medicine conforms to the requirement of GMP.

Features:

1. Speeds up to 60 cpm based on 100-count bottles with vibration system;

2. Counter discrepancies is less than 1‰;

3. Operation stable and lower noise;

4. Bottle convey smoothly with dual-track conveyor;

5. Full-set protecting device keep operation steady and reliable;

6. Touch screen Control System which is easy to control;

7. Simple Straight Forward Operator Controls;

8. On-Screen trouble description which is easy to solve;

9. Stainless Frame;

Machine Induction

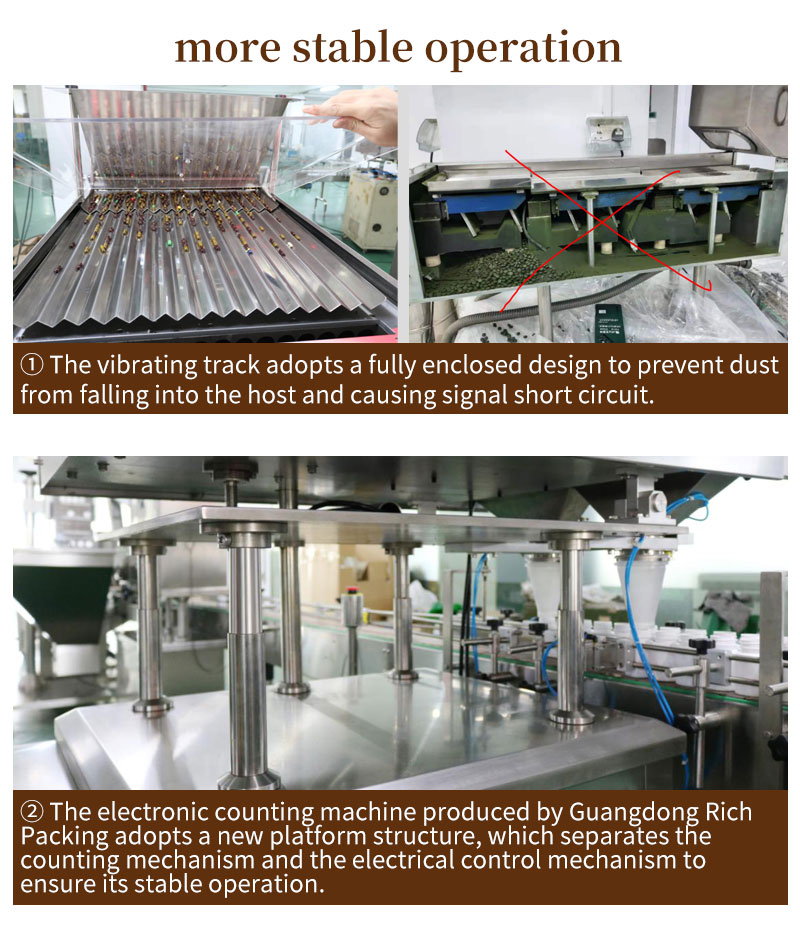

Under the driving of the vibration, the pills pass through the regulating valve below the material container, moving forward in order and fall into counting tunnels. When the pill reaches raster holes, the counting photoelectric will produce a pulse signal and counting. The signal is grouped into the left and the right, accumulated and sent to the PLC. When the set quantity is reached, the flashboard will close. At the same time, the bottle to be filled is already in its position. The funnel cylinder board opens, and the counted pills fall into the bottle. Then the tunnel begins another counting, the positioning cylinder opens, and the filled bottle is sent to the next process. A new bottle is placed under the funnel, a new round of counting and filling starts.

Service Center All Over world:

Headquarter China: LTPM CHINA

Add:28th,Jiuan Rd,Jiuli Industrial Zone,Shangwang. Ruian city,Zhejiang,CHINA

America:
Exclusive Agent and Service center in USA:
JRH Pharma R&D Services
River Falls, WI,USA

Pakistan:
Multi Link
Add.:Karachi
Raki Trader
Add.: Lahore
Philippines:
Payo Manufacturing
Add: Davao
Colombia:
LTPM Colombia
Add: Bogota
Latino America:
LTPM Dominican Republic
Add: Domican republic

Our company is recognized as a major pharmaceutical equipment manufacturer and a distributor of packaging materials and pharmaceutical chemicals. Our company is founded in Rui'an, China, with 18 years' (Opened on 1996 year) experience in pharmaceutical industry. This allows us to expand our business in a well-planned manner. We now offer a comprehensive whole production line of quality pharmaceutical machines,packing materials and APIs at competitive prices. Our main products includes:
Fluid Bed Dryer
Spray Drying Machine
Powder Mixing Machine
Granulating Machine
Capsule filling machine
Blister Packing Machine
Cartoning machine
Tablet Pressing Machine
Bottling Machinery
Liquid Production Line
All kinds of lamination films for pharma packaging
Several kinds of APIs

Our Faith: Your Best Pharmaceutical Production Solution!

We offer whole pharmaceutical Production solutions from raw material processing to finished products. We manufacture and distribute different pharmaceutical machinery,packing materials and APIs with our own engineering teams and after-sales service teams.

Based on our experienced engineering team, we produce top quality machines, paking materials and APIs and also help customers select the best quality suppliers. Our company is a technology-driven company and focuses on producing high quality machinery. We employ 15 engineers on machinery design and technology improvement. Each engineer has at least ten years' machining and packaging area experience. We are your extra technical consultant center.

Quality Control:
Our company owns a quality control department to verify each product at different phases, from the procurement of parts to finished products. In order to offer clients the best quality products, we manufacture products in accordance with international standards, such as FDA, GMP and cGMP.

We are your best pharmaceutical production solution!
