    DPH -260H High Speed Capsule Tablet Blister Packer ,Blister Sealing Machine

    Ask Lasest Price
    Brand Name : LEADTOP
    Model Number : DPH-260H
    Certification : CE certification
    Price : discuss personally
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 25 days/month
    Delivery Time : 25days
    • Product Details
    • Company Profile

    DPH -260H High Speed Capsule Tablet Blister Packer ,Blister Sealing Machine

    DPH -260H High Speed Capsule Tablet Blister Packer ,Blister Sealing Machine

    DPH-260H High Speed Roller Type Blister Packing Machine is the new generation product elaborately researched and developed by our company. Its maximum cutting frequency can be 200 times per minute. It combines the advantages of flat type and roller type blister packaging machine, and adopts special feeder for irregular tablet, with high cutting frequency, low energy consumption, accurate action, stable and easy to change mold, high yield, and the stagger blister no horizontal waste edge cutting, highly improves the production efficiency. The machine design is more reasonable, it adopts automatic control technology which integrate frequency control and machine, electricity, light, air, and creative design strictly according to pharmaceutical industry GMP standard.

    Technical Parameter for DPH-260H High Speed Blister Packing Machine
    Cutting Frequency
    70-200 times/min
    Production Capacity
    12600-36000 blisters/hour
    Range Of stroke
    20-100 mm
    Max. Forming Area
    260X250mm
    Max. Formed Depth
    12mm
    Forming power (Upper& Lower)
    2KW(×4)
    Heat-Sealing power
    3KW
    Main Motor Power
    1.5KW
    Total power
    380V 50HZ(220V 60HZ)15.5KW
    Volume Flux Of Air Pump
    ≥0.5m3/min
    Packing Material Specification
    PVC/PVDC/PET: 0.25X260 mm
    Alu Foil (PTP) : 0.02X260 mm
    Overall machine dimension
    4860X1070X1720mm
    Overall Packing dimension
    5260X1170X2150mm
    Weight
    3000Kg

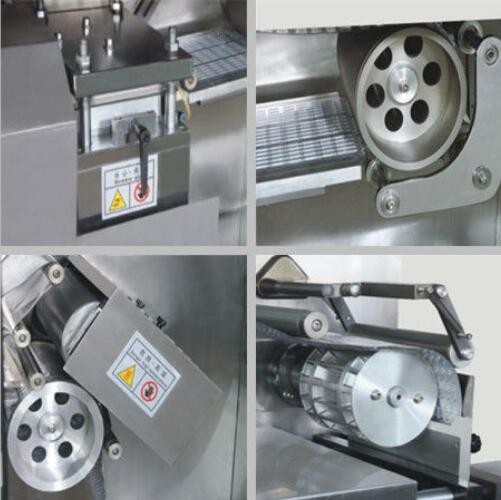

    Detailed Images
    DPH -260H High Speed Capsule Tablet Blister Packer ,Blister Sealing Machine
    DPH -260H High Speed Capsule Tablet Blister Packer ,Blister Sealing Machine
    DPH -260H High Speed Capsule Tablet Blister Packer ,Blister Sealing Machine
    DPH -260H High Speed Capsule Tablet Blister Packer ,Blister Sealing Machine
    Packaging of DPP-250A
    Size
    4800(L) * 1200(W) * 2000(H)mm
    Weight
    3400kgs
    Packaging Details
    The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated according to customers special request.
    Our Service
    FAQ

    Q1: What information should I let you know if I want to get quotation?
    A: -the size of products (Length*Width*Height)
    -the material/ film
    -the required production capacity
    Q2: Is there MOQ for our machine?
    A: 1 set is acceptable. Of course, if you order more, it will be fine and its price will be more competitive.
    Q3: Do you have manual or operation video for us to know more about the machine?
    A: Yes, of course. Please email us and ask for it. We will send you soon.
    Q4: When can I get the price?
    A: We usually quote within 24 hours after getting your inquiry. If you are urgent to get the price, please call us or tell us in your email. We will regard your inquiry priority.
    Q5: How does your factory regard quality control?
    A: Quality is priority. It's the basement of our company's development. From the beginning of opening company, we especially focus on quality job. Our pharmaceutical equipment have passed the GMP model patents and invention patents issued by State Patent Office of China.
