    PLC Controller Blister Packing Machine 10 - 35 Time / Min Punch Speed

    Ask Lasest Price
    Brand Name : LEADTOP
    Model Number : DPP-320F
    Certification : CE certification
    Price : discuss personally
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 25 days/month
    Delivery Time : 25days
    • Product Details
    • Company Profile

    PLC Controller Blister Packing Machine 10 - 35 Time / Min Punch Speed

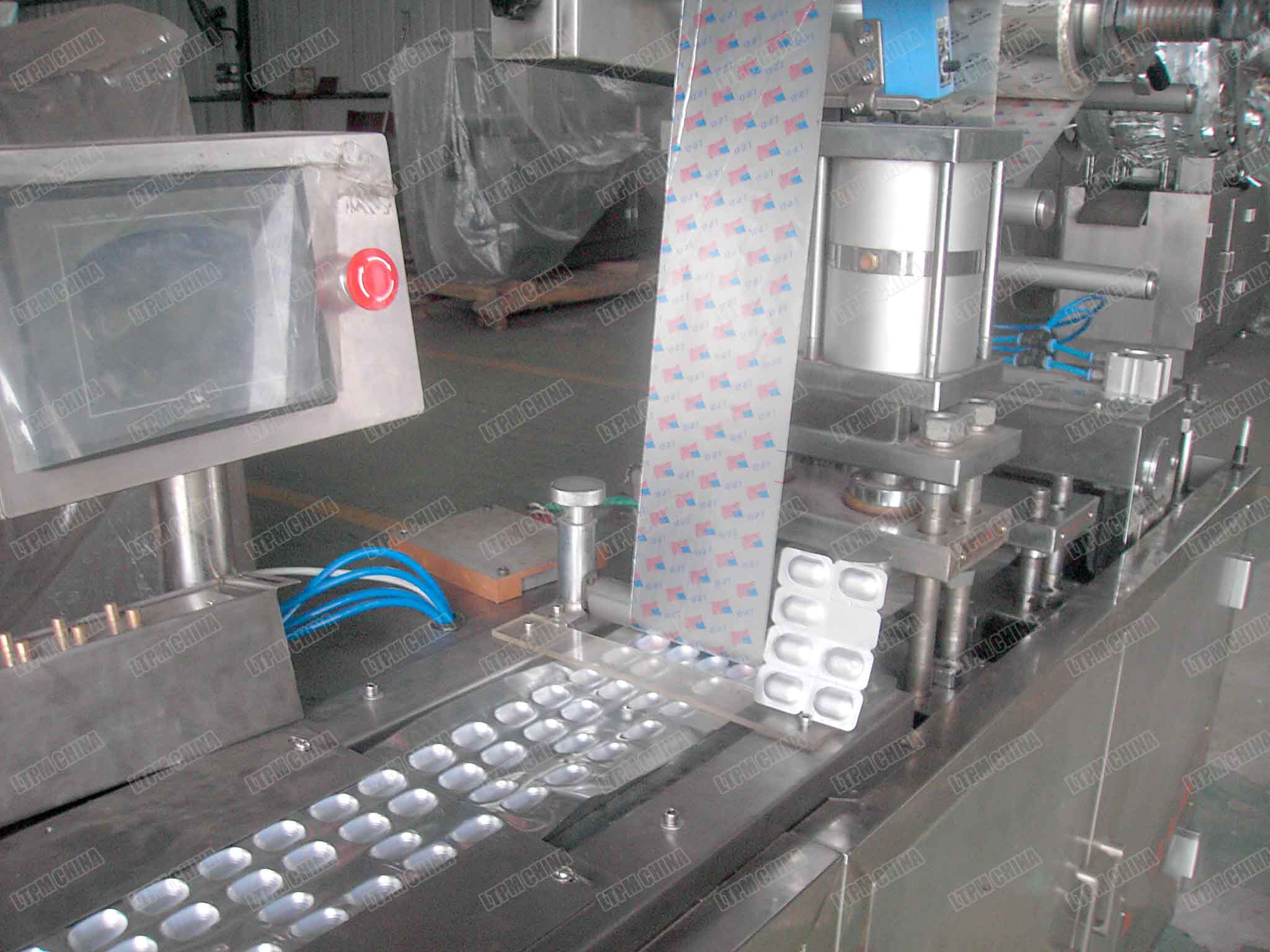

    DPP-320F Automatic Aluminum Plastic Blister Packing Machine

    Application:

    The machine is assembled with three parts and can be packed and transported separately. Under control of PLC, the machine can complete separately all procedures including warm-up, blister forming, automatic feeding, heat sealing and synchronous adjustment of Aluminum-Plastic strip, empty-detecting, hard Aluminum forming, second heat sealing, batch number printing, blanking and scrap-collecting, etc.

    The machine is suitable for blister packing with Aluminum-Plastic, Aluminum-Aluminum and Aluminum-Plastic-Aluminum.


    Feature:

    Travel scope can be adjusted.
    Mould is located by locating groove so that it’s easy to change mould. Adopt the moulds of pressing-and-frothing and cool-forming.
    The material is fed automatically. The mould and feeding equipment can be designed as user’s requirements.
    Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller.

    Technical parameters:

    ModelDPP-320F
    Punch Speed10-35time/min
    Travel Range

    10-170mm

    Forming Area(PVC)

    320*170*25mm

    Forming Area(Tropical Aluminum)

    320*170*15mm

    Overall dimensions (mm)

    4800*718*1500

    Weight (kg)

    2400

    Wrapper Specification(PVC)

    (0.15-0.5)*320mm
