PVC Aluminum Foil Softgel Blister Packaging Machine 2.2kw

Ask Lasest Price
Brand Name :	LTPM CHINA
Model Number :	DPP-Series
Certification :	CE
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	25 SETS Per month
Delivery Time :	25days

Add to Cart

Product Details
Company Profile

PVC Aluminum Foil Softgel Blister Packaging Machine 2.2kw

DPP Automatic PVC Aluminum foil Plastic Pill Soft Gel Capsule Tablet Blister Packaging Machine

The machine is of flat-plate structure, with pressing, molding, meshes heat-sealing, adjustable travel range, for small size of body and ease of operation. It is applied to Al-plastic packaging for capsule, table, candy, healthcare, small hardware etc. It is widely used in small pharmacy factory, preparation-room of hospital institute laboratory, mini-motor test workshop. The machine reaches advanced level in China.

Specifications:

DPP Automatic Blister Packaging Machine
	DPP-80	DPP-140	DPP-250
Blanking frequency	PVC-AL: 10-40 times/min AL-AL: 10-30 times/min	PVC-AL: 10-40 times/min AL-AL: 10-30 times/min	PVC-AL: 10-40 times/min AL-AL: 10-30 times/min
Adjustable scope of feed travel	30-100mm(adjustable)	30-120mm(adjustable)	30-140mm(adjustable)
The max forming area and depth	120mm×90mm×20mm	150mm×120mm×26mm	240mm×130mm×26mm
Wrapper: ALU	Length: 130mm, thickness: 0.02-0.035mm	Length: 160mm, thickness: 0.02-0.035mm	Length: 250mm, thickness: 0.02-0.035mm
Wrapper: PVC	Length: 130mm, thickness: 0.25-0.5mm	Length: 160mm, thickness: 0.25-0.5mm	Length: 250mm, thickness: 0.25-0.5mm
Wrapper: PTP	Length: 130mm, thickness: 0.02-0.035mm	Length: 160mm, thickness: 0.02-0.035mm	Length: 250mm, thickness: 0.02-0.035mm
Wrapper:Dialysis paper	Length:130mm, specification:50-100 gram	Length:160mm, specification:50-100 gram	Length:250mm, specification:50-100 gram
Power of forming heating	1.5KW	2.4KW	3KW
Power of sealing heating	1.5KW	2.4KW	3KW
Main motor power	0.75KW	1.5KW	1.5KW
Machine Voltage	380V/220V 50Hz
Capacity of air compressor	≥0.2m3/min Pressure: 0.4～0.6MPa	≥0.2m3/min Pressure: 0.5～0.7MPa	≥0.2m3/min Pressure: 0.5～0.7MPa
Overall dimension	2070mm×650mm×1060mm	2350×580×1500 mm	3100×670×1650mm
Weight	560Kg	800KG	1500KG

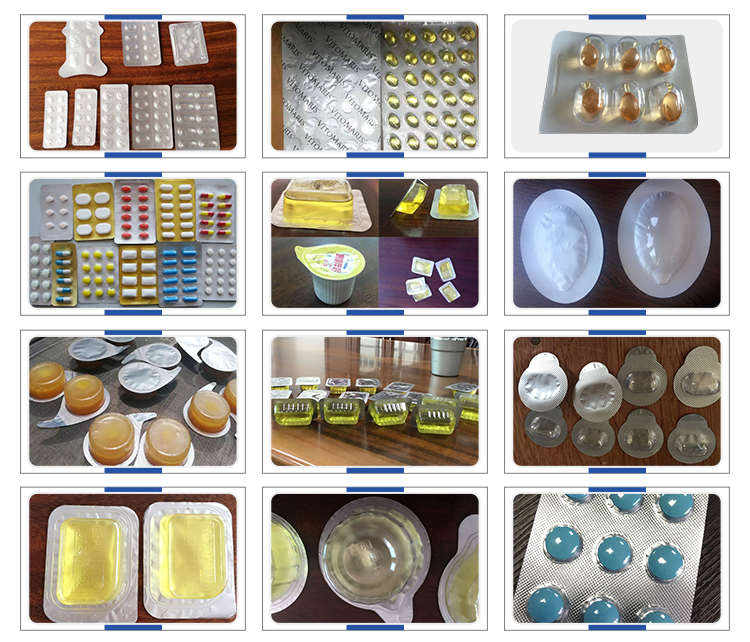

Product design:
Product design: OEM/ODM custom design the shape and size of the blister product

Machine Products

Main features

With manipulator towing and adjustable travel range, it can be suited for blister packing of various sizes.
Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape, liquid, paste and syringe etc.
The whole procedure of feeding, forming, heat-sealing, impressing, batch number printing and cutting is accomplished automatically and continuously. The machine is small in size, with frequency inverter and ease of operation.
