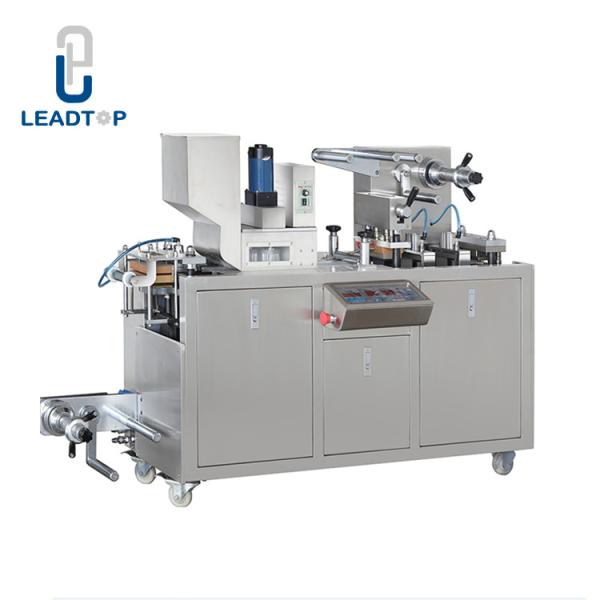

DDP-Series Automatic Pharmaceutical Pill Soft Gel Capsule Tablet
Blister Packing Machine
DPP-Series multifunctional automatic aluminum (aluminum) bubble cap
packing machine, the machine is the company comprehensive domestic
and foreign aluminum plastic packaging machine has the advantages
of innovative design, the contact part of the drug and by stainless
steel and high grade aluminum alloy materials production,
applicable to the pharmaceutical, food, health care products
packaging industry plain tablets, sugar coated tablets, capsules,
can be packaged tomato sauce, chocolate sauce, honey and so on
The machine is China pharmaceutical packaging technology
improvement and implementation of GMP production equipment, the
product has been sold to domestic and foreign pharmaceutical
companies and large and medium-sized hospitals, and exported to
more than 20 countries and regions, favored by customers and
praise.
Specifications:
DPP Automatic Blister Packaging Machine |
| DPP-80 | DPP-140 | DPP-250 |
Blanking frequency | PVC-AL: 10-40 times/min AL-AL: 10-30 times/min | PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min | PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min |
Adjustable scope of feed travel | 30-100mm(adjustable) | 30-120mm(adjustable) | 30-140mm(adjustable) |
The max forming area and depth | 120mm×90mm×20mm | 150mm×120mm×26mm | 240mm×130mm×26mm |
Wrapper: ALU | Length: 130mm,
thickness: 0.02-0.035mm | Length: 160mm,
thickness: 0.02-0.035mm | Length: 250mm,
thickness: 0.02-0.035mm |
Wrapper: PVC | Length: 130mm,
thickness: 0.25-0.5mm | Length: 160mm,
thickness: 0.25-0.5mm | Length: 250mm,
thickness: 0.25-0.5mm |
Wrapper: PTP | Length: 130mm,
thickness: 0.02-0.035mm | Length: 160mm,
thickness: 0.02-0.035mm | Length: 250mm,
thickness: 0.02-0.035mm |
Wrapper:Dialysis paper | Length:130mm, specification:50-100 gram | Length:160mm, specification:50-100 gram | Length:250mm, specification:50-100 gram |
Power of forming heating | 1.5KW | 2.4KW | 3KW |
Power of sealing heating | 1.5KW | 2.4KW | 3KW |
Main motor power | 0.75KW | 1.5KW | 1.5KW |
Machine Voltage | |
Capacity of air compressor | ≥0.2m3/min
Pressure: 0.4～0.6MPa | ≥0.2m3/min
Pressure: 0.5～0.7MPa | ≥0.2m3/min
Pressure: 0.5～0.7MPa |
Overall dimension | 2070mm×650mm×1060mm | 2350×580×1500 mm | 3100×670×1650mm |
Weight | 560Kg | 800KG | 1500KG |
Product design:
Product design: OEM/ODM custom design the shape and size of the
blister product
Machine Details
Main features
1.Frequency conversion stepless speed regulation, mechanical
traction
2.Adjustable stroke, adjustable range of 30-100mm, convenient
adjustment, accurate synchronization
3.Standard is equipped with four stations (molding, heat sealing,
indentation, punching and cutting) and each station to install four
posts, the adjustment is more convenient, stable operation;
4.The use of plate mold, positive pressure molding, batch number,
indentation tangent, aluminum foil / aluminum automatic discharge;
5.The configuration of a set of universal feeder, the filling rate
is as high as 99.5%;
6.The machine has the advantages of small size, light weight,
adjustment and maintenance space, etc.
