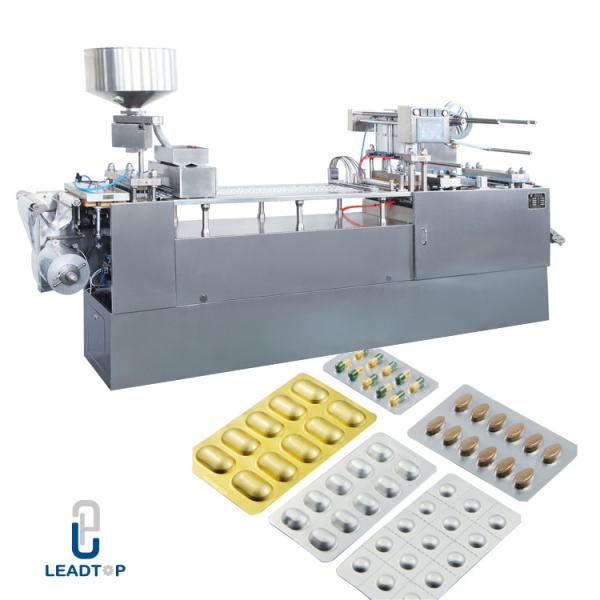

Alu Alu Pill Automatic Pharmaceutical Blister Packaging Machine,
Pharmaceutical Packaging Machines
It is the latest generation product in our company which adopting
PLC Human Interface, with frequency Converter, high automation,
easy operation, novel figure, all-round-functions, advanced
technology, stable running, durable life, conforms to “GMP
Standard”.
It is an ideal blister packaging machine for AL/PL, AL/AL, Paper/PL
packaging. It has passed Province technology production
authentication.It is suitable for capsule, tablet, honey pill,
candy, liquid (ointment), syringe as well as irregular shape Al-al,
Al-plastic or paper-plastic packing in pharmacy, healthcare, food,
cosmetics, medical equipment industry etc.It is the latest
scientific products for pharmaceutical factory and healthcare
factory as well as foodstuff factory; it can check on-line and
eliminate the waste plate by itself. The machine adopts frequency
converter and the whole system was controlled by PLC, which can be
operated in man-machine interface. It is an ideal and popular
packing equipment with high automation, easy for operation,
advanced technology, full purpose, long durability and in
accordance with GMP requirement. The products have passed the
provincial science and technology appraisal.
Specifications:
| MODEL: | DPP-250 |
| Blanking frequency (Cutting/min): | 15-50 |
| Sheet's quantity of one blanking (sheets): | 1-4 |
| Capacity (sheets/hour): | 12,000 |
| Adjustable scope of feed travel: (mm) | 10-160 |
| Max Forming area and depth (mm) | 270×120×25 |
| Capacity of air compressor(m3/min): | ≥0.36 |
| Power supply: | 380V AC, 50 Hz, Three Phase |
| Total Power | 8Kw |
Wrapper specification (mm): PVC Film Blister foil Alu Alu Foil | Max.270× (0.15-0.5) Max.270× (0.02-0.035) Max. 270*(0.11-0.25) |
| Weight (kg): | 1260Kg |
Product design:
Product design: OEM/ODM custom design the shape and size of the
blister product
Machine Details
Main features
1. Equipped with inductive self-checking mechanism, it can
eliminate the waste plate with lack of particle, the qualified rate
reaches 100%. (option);
2. The heat sealing station is fixed, the distances between
forming, perforation and punching etc. Units can be adjusted freely
on the same plane and it is suitable for all kinds of dimensions
with high precision, strong adaptability;
3. Flat structure, registration heating, mechanic(positive
pressure) forming, up and down net web, cylinder heating sealing ,
manipulator draw, adjustable stroke, lower noise and steady of
operation;
4. Main transmission adopts imported gear reducer, with excellent
performance, lower noise, long life, stable operation;
5. Cursor tracking register, sealing with tidiness and good-looking
appearance. (The body can be manufactured separately in order to
easily transport the machine into workshop). (Option);
6. It can be equipped with optical fiber or photographing checking
device according to the customers’ requirements.
