Hand Cream Automatic Tube Filling And Sealing Machine Inner Heating
Quick Detail:
Model: LTRG-60A
Filling Volume: 5-250ml/piece (Adjustable)
Tube Diameter: Φ5mm-Φ60mm
Tube Length: 50-300mm (customizable)
Filling Speed: 30~50 tube/min
Dimension: 1600mm*1640mm*1900mm
Weight: 1100kg
Description:
1. Servo control makes it precise and convenient to adjust the
filling amount by touch screen.
2. Tube feeding, eye marking, tube interior cleaning (optional),
material filling, sealing (tail folding), batch number printing,
finished products discharging can be performed automatically (the
whole procedure).
3. With 12 stations and matching with manipulator, the machine is
able to meet different type of tail folding, sealing requirements
of Alu tube. It is a multi-purpose machine.
4. According to the different length of the tube, height of tube
chamber can be adjusted easily by motor. With external reversal
feeding system, makes tube charging more convenient and tidy.
5. The mechanical linkage photo sensor precision tolerance is less
than 0.2mm. The chromatic aberration scope between tube and eye
mark is reduced.
6. Photo-electronic, electric, pneumatic integrative control is
applied with the machine. No tube, no filling. It gives an alarm
when low pressure occurs. The machine stops automatically if tube
error or open the safety door.
7. Three-layer jacket instant heater with inside air heating, it
won’t damage the pattern on outer wall of tube and achieves firm
and beautiful sealing effect.
Applications:
This machine is a high-tech product which successfully developed
and designed by adopting advanced technology from abroad and
strictly meet GMP requirement. PLC controller and color touch
screen are applied and made it possible for programmable control of
the machine. It can perform the filling for ointment, cream jellies
or viscosity material, sealing or tail folding, batch number
embossing (include manufacture date) automatically. It’s ideal
equipment for aluminum tube filling and sealing for cosmetic,
pharmacy, foodstuff and bond industries.
Specifications:
| Tube Material | Plastic tube, laminated tube |
| Tube Diameter | Φ5mm-Φ60mm |
| Tube Length | 50-300mm (customizable) |
| Filling Volume | 5-250ml/piece (Adjustable) |
| Filling Accuracy | ≤±1% |
| Product Capacity (Pcs/min) | 30-50 0.1m3/min |
| Air Supply | 0.55-0.65Mpa |
| Motor Power | 4kw (380V/220V 50Hz) |
| Heat Sealing Power | 5kw |
| Overall Dimension(mm) | 1600*1640*1900mm (L*W*H) |
| Machine Weight (kg) | 1100kg |
Competitive Advantage:
1. We have seven technicians who gets passport ready to travel all
over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine
problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor),
Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho

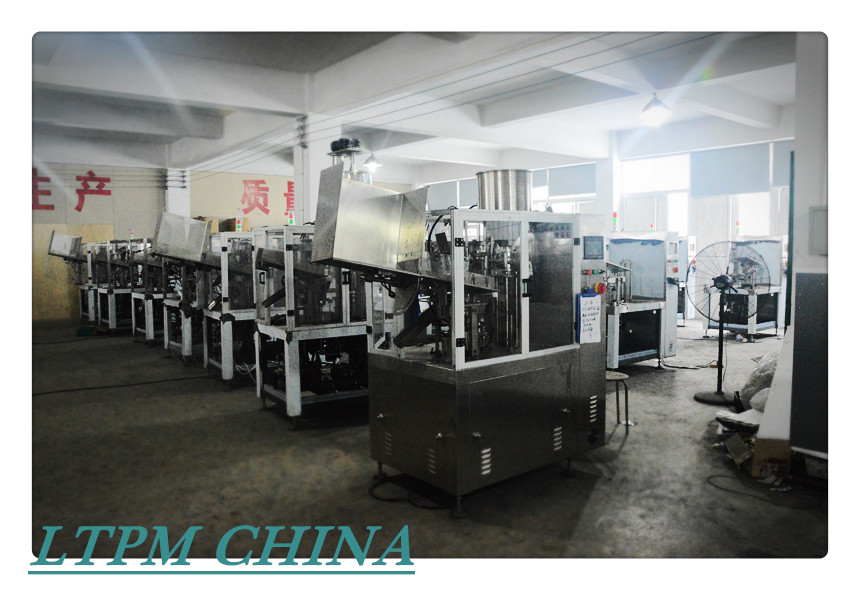

Our Work Shop:
