Introduction

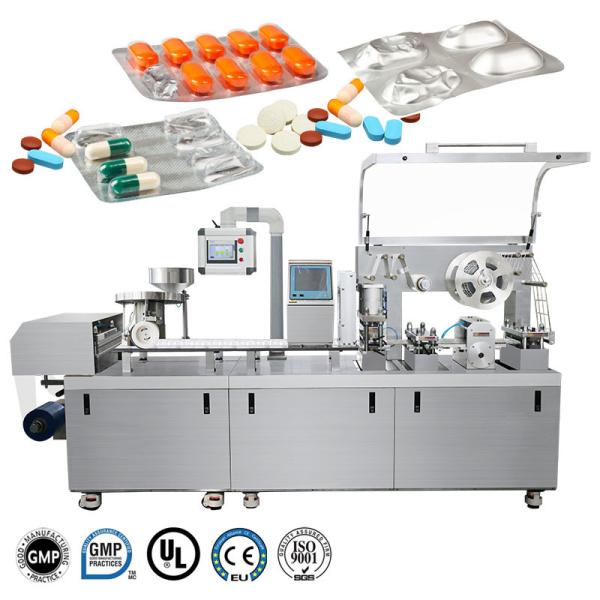

Aluminum Plastic/duralumin Packing Machine with advanced
performance, simple operation, high output is the latest improved
equipment in our company. It is the best ideal packing equipment
for large and medium-sized pharmaceutical plant, health care
factory and food industry.
Features
Ø Adopts top brand PLC controller with touch screen displayed in
Chinese and English, Frequency inverter for speed control, servo
traction, which can ensure the length of blister traction
adjustable within the range.
Ø With thermal temperature control and test, main machine over
loading protect, PVC and PTP packing material position test, feeder
material position test, failure automatic debug and alarm,
automatic protection and stop running.
Ø The machine station module type design of level frame, good
sight, safe and convenient operation.
Ø Thermal with contact type, positive press formed, air cushion
thermal seal upper and lower net, photo register make your product
package better.
Ø PVC exchange support with bigger type material support, whole
roller, which makes the equipment more practicability.
Ø The special design of mould in rectangle shape, ladder type
fixing, provide much convenience and easy to mould replacement. All
material contact parts adopt high quality stainless steel and
aluminum metal, slap-up surface treatment craft.
Specifications:
| MODEL: | DPP-250 |
| Blanking frequency (Cutting/min): | 15-50 |
| Sheet's quantity of one blanking (sheets): | 1-4 |
| Capacity (sheets/hour): | 12,000 |
| Adjustable scope of feed travel: (mm) | 10-160 |
| Max Forming area and depth (mm) | 270×120×25 |
| Capacity of air compressor(m3/min): | ≥0.36 |
| Power supply: | 380V AC, 50 Hz, Three Phase |
| Total Power | 8Kw |
Wrapper specification (mm): PVC Film Blister foil Alu Alu Foil | Max.270× (0.15-0.5) Max.270× (0.02-0.035) Max. 270*(0.11-0.25) |
| Weight (kg): | 1260Kg
|
Competitive Advantage:
1. we have seven technicians who gets passport ready to travel all
over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine
problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor),
Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent),
Laho(Distributor)
