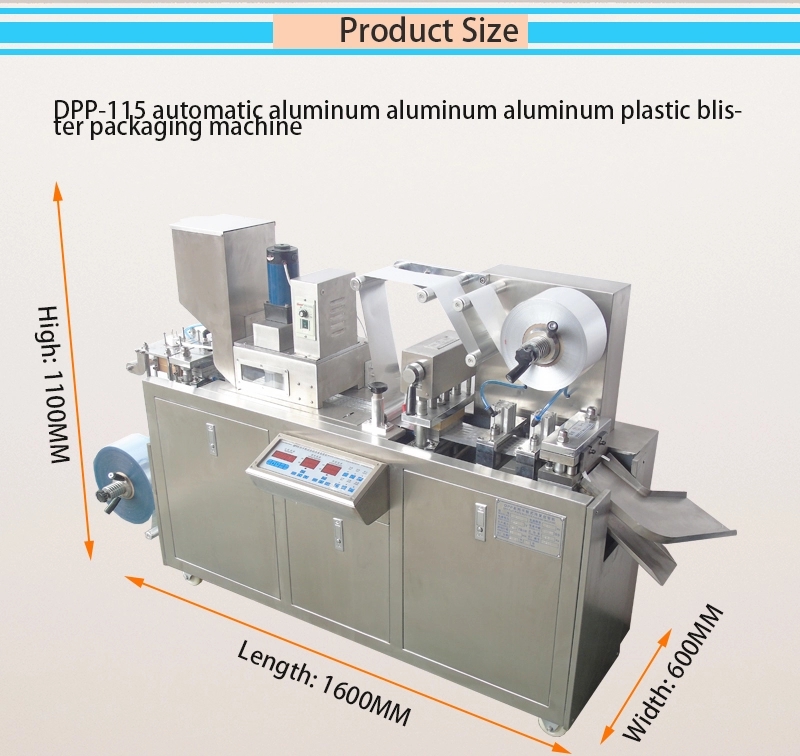

The Blister packing machine is of flat-plate structure, with
pressing, molding, meshes heat-sealing, adjustable travel range,
for small size of body and ease of operation. It is applied to
Al-Al, Al-PVC, Al-plastic packaging for capsule, table, candy,
healthcare, small hardware etc. It is widely used in small pharmacy
factory, preparation-room of hospital institute laboratory,
mini-motor test workshop. The machine reaches advanced level in
China.
Applications:
This machine is our engineer update based on DPP-160Fmodel and our
clients' feedback infomation,and fetch in advanced technology from
aboard .Strickly improve it according to GMP standard.A waste
material collecting device has been designed to this machine which
can make its function much perfect.
Adjustable stroke:freely change the size of sheet and suitable for
productioln of various kinds of specifications.
Flat-plate framework :It is suitable for pack any kind of shape
,such as square ,triangle.oval and etc.
Positive press forming : makes the bubble's symmetrical
,upright,and make the finished products much perfect.
Specifications:
| Model | 320F |
| Blanking Frequency(times/min) | 5-25 |
| Sheet’s Quantity of One Blanking(sheets) | 5-6 |
| Capacity(sheets/hour) | 7500-9000 |
| Adjustable Scope of Feed Travel(mm) | 40-150 |
| Max Forming Area and Depth (mm) | 320*130*15 |
| Capacity of Air Compressor(m3/min) | ≥0.8 |
| Power supply | 380V 50HZ 16.5KW |
| Wrapper Specification (mm) | PVC For Medicine320*(0.15-0.5) |
PTP Aluminum Foil 320*(0.02-0.035) |
| Overall Dimensions (mm) | 5800*850*1800 |
| Weight (Kg) | 2400 |
Competitive Advantage:
1. we have seven technicians who gets passport ready to travel all
over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine
problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor),
Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent),
Laho(Distributor)
