LTRG 60A Tube Filling Machine Automatic Capsule 180ml

Ask Lasest Price
Brand Name :	LEADTOP
Model Number :	LTRG-60A
Certification :	CE certification
Price :	discuss personally
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	25 days/month
Delivery Time :	25days

Add to Cart

Product Details
Company Profile

LTRG 60A Tube Filling Machine Automatic Capsule 180ml

Application:

The machine can automatically feed tube, orientate eye marks and is used for filling cream (paste)-like and liquid-like materials into plastic tube or plastic-aluminium laminated tube and then sealing them, pressing data or product numbers on the end of the tube and cutting the end. This machine is widely used in daily cosmetics, medicine and food industries.

Characteristics:

1. High grade liquid crystal display programming controller and button combination operation screen, a comprehensive grasp of stepless speed, parameters of the equipment and production count statistics, pneumatic equipment instructions, fault display operation status, the operation is simple and user-friendly.

2. Feed tube ,photocel,inert body temperature (optional), filling, sealing, printing, finished the whole products automatic.

3.High accuracy photocel system , to reduce the mistake sealing of tube body color .

4. adjusting the position of the external, digital display, adjust fast and accurate (applicable to multi specification, multi
variety production).
5. machine, light, electricity, gas integration, no tube no filling, for the pipe is not in place, low pressure, automatic display
(alarm); open the protective door can automatically shut down, such as automatic functions.

6.Having nine stations, full function, convenient for variety, metal pipe, plastic pipe, composite pipe mould can be

interchangeable, suitable for any folding metal tube.

Main technical parameters
Model	LTRG-100
Production Speed	70-95 pcs/min
Filling Quantity	3-180 ml
Dosage Precision	≤±1℅
Tube Diameters Sealed	ф12-ф35mm
Power Supply	380V/50Hz 1.5KW
Air Consume	<0.6m3/min
Dimensions(L×W×H)	2450×1200×2100 mm
Weight(kg)	1500kg

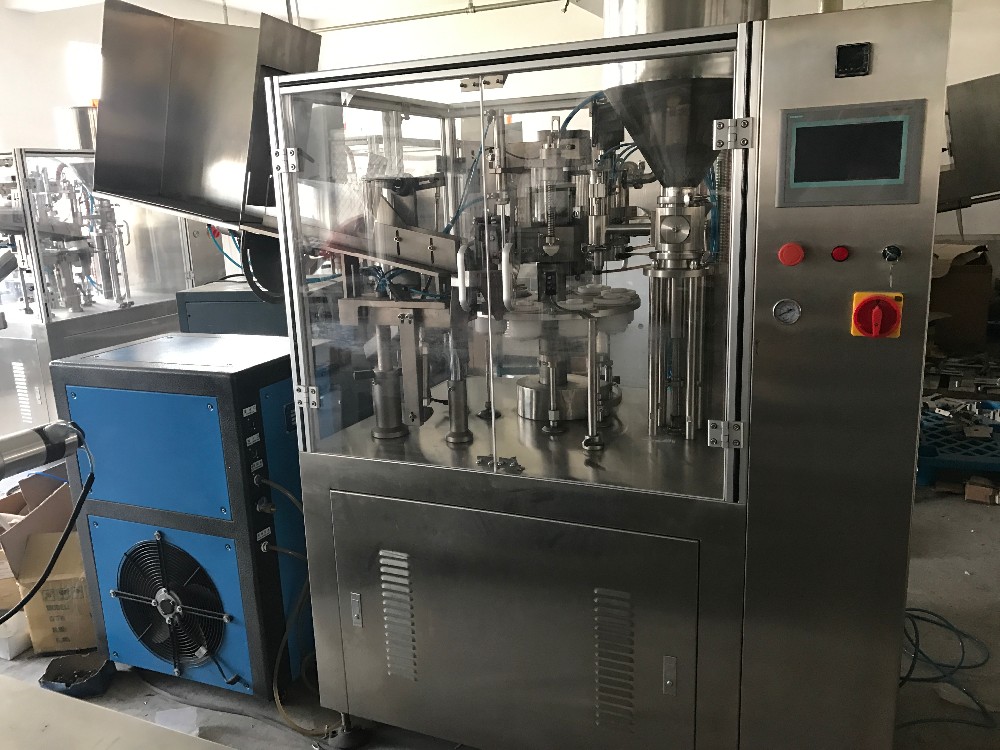

Detailed Images
