    Soft Automatic Tube Filling And Sealing Machine For Cream

    Ask Lasest Price
    Brand Name : LEADTOP
    Model Number : LTRG-60
    Certification : CE certification
    Price : discuss personally
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 25 days/month
    Delivery Time : 25days
    • Product Details
    • Company Profile

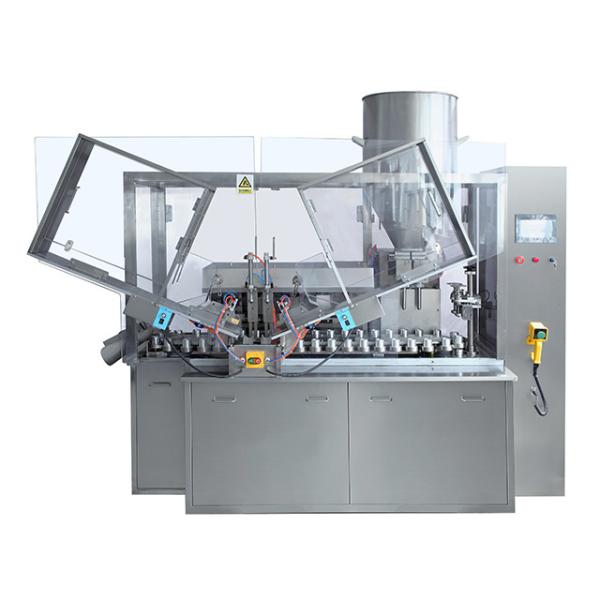

    Soft Automatic Tube Filling And Sealing Machine For Cream

    Economical Full-Auto Soft Tube Plastic Bottle

    Filling Sealing Machine For Cream

    Product Usage:
    This product is our company's first high-tech equipment that has been successfully designed and developed by introducing foreign products and combining with GMP requirements. It has the characteristics of reasonable structure, uniform functions, convenient operation, accurate loading, stable operation and low noise. PLC programmable controller is used to program the whole machine. From liquid to high-viscosity fluid material (paste), filling and sealing to coding batch number (including production date) and other processes are fully automated. It is an ideal equipment for filling and sealing aluminum tubes, plastic tubes and composite tubes in cosmetics, pharmaceuticals, food, adhesives and other industries, and meets the requirements of GMP regulations.


    Features:
    1.PLC and touch screen operattion.
    2.The transmission part is enclosed below the platform, which is safe, reliable and pollution-free;
    3.The filling and sealing part is installed in the semi-closed static-free outer frame visible cover above the platform, which is easy to observe, easy to operate and easy to maintain;
    4.oblique hanging and straight hanging pipe warehouse, optional;
    5.The upper tube handrail automatically feeds the hose to the upper tube workstation;
    6.Photoelectric benchmarking workstation, using high-precision probes, stepping motors and other control hose patterns at the correct position
    7.At the end of the injection, the air blowing device blows off the tail of the paste;
    8.No filling without filling;
    9.The end-sealing temperature adopts PID to control external heating
    10.The type code workstation automatically prints the character code at the position required by the process;
    11.Fault protection alarm, overload shutdown;
    12.Ounting and quantitative shutdown;

    Technical Parameter

    Model
    LTRG-Series
    Filling range
    3-300(ml)( can be customized)
    Filling speed
    40-60(pics/min)
    Gas source(Mpa)
    0.55-0.65
    Filling accuracy
    ≤±0.05%
    Tube diameter(mm)
    Φ10- Φ32(can be customized)
    Tube Length(mm)
    45-250(can be customized)
    Supply Power
    380v/220v
    Head
    1
    Power
    2kw
    Net weight
    800kg
