    240mm Aluminum Tube Sealing Machine 5kw Automatic Capsule Filling Machine

    Ask Lasest Price
    Brand Name : LEADTOP
    Model Number : LTRG-60A
    Certification : CE certification
    Price : discuss personally
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 25 days/month
    Delivery Time : 25days
    • Product Details
    • Company Profile

    240mm Aluminum Tube Sealing Machine 5kw Automatic Capsule Filling Machine

    This equipment can automatically fill, seal, stamp batch numbers and exit tubes(with 8 tube position) . Inner-heating and outside -heating method is adopted in the heating section, which can blow hot-wind to the tube tail-ends inner wall.The parts touched with material adopt 304 stainless steel, which can proof acid, alkali and corrosion. All the channels can be unloaded fast and agilely.

    The material-valve can be rotated, it can be cleanout easily, so there's no place for the dirty. Fixing organization can fix position precisely and firmly.

    The position-turning part can change speed by using different-frequency. Customers can adjust the working speed themselves.


    Main Features

    This machine can be used for both plastic and laminated tubes.
    This equipment is widely used in industry of toothpaste, cosmetic,pharmaceutical and food etc., it is applicable for various plastic tube and plastic-laminated-tube.
    It can fill-pack all kinds of cream, latex, lotion, oil and water etc.
    Before you use our equipment, read this user manual carefully, so that you can make a good use of our products.


    Main technical parameters
    ModelLTRG-60
    Tube MaterialPlastic tube, laminated tube,Aluminum Tube
    Tube DiameterΦ5mm-Φ50mm
    Tube Length50-240mm (customizable)
    Filling Volume5-250ml/piece (Adjustable)
    Filling Accuracy≤±1%
    Product Capacity (Pcs/min)60pcs/min
    Air Supply0.55-0.65Mpa
    Motor Power4kw (380V/220V 50Hz)
    Heat Sealing Power5kw
    Overall Dimension(mm)2807*1240*1900mm (L*W*H)
    Machine Weight (kg)

    1100kg

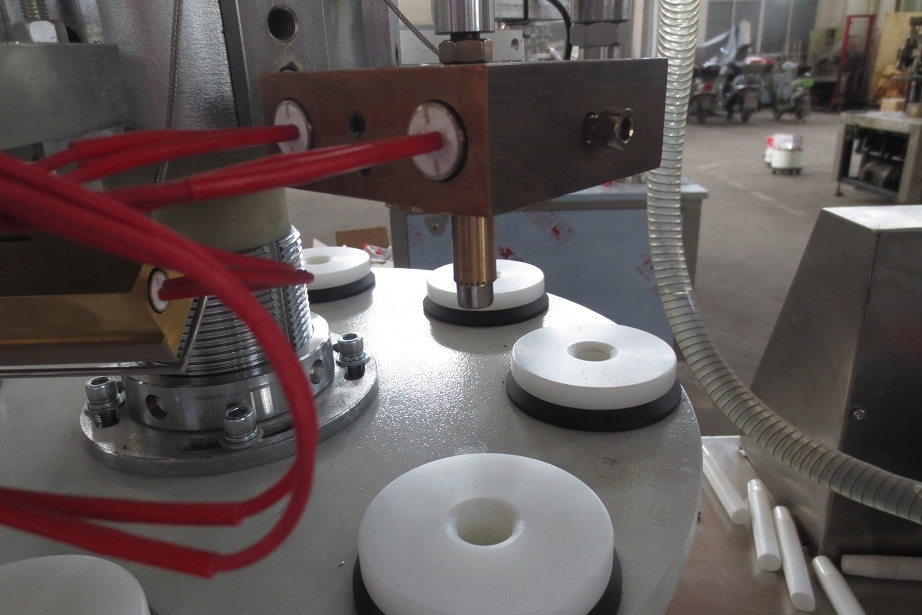

    Detailed Images
