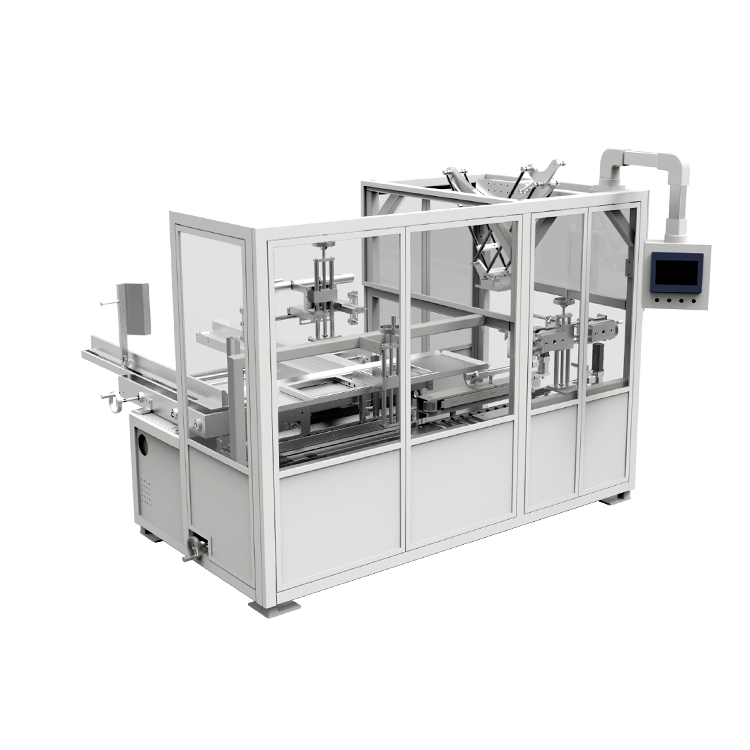

Full Automatic Horizontal Biscuit/Chocolate Bar Cartoning Machine
Introduction:
Cartoning machine is a packaging machine which form a carton board
blank into a carton, filled with a product or bag of products or
number of products into single carton via robot, after the filling,
the machine close both the ends of carton completely sealing the
carton.
All our cartoning solutions are designed to improve productivity
for our customers with easy-to-use equipment that can increase
output while reducing labor cost.
Cartoning Machine Features:
The cartoning machine system consists of three modules: unpacking
module, robot hand filling module, sealing module, etc. The
modules can be freely combined to meet the customized needs of
customers.
The system can meet the requirements of regular shape items such as
food, household paper, etc., as well as special-shaped
products such as pillow bag packaging, gusset bag packaging, etc.
The storage tank for folded carton is big and can be increased the
storage tank position according to customer requirements.
With intelligent control system of HMI , effective monitoring of
equipment operation and fault prompts, easy to operate.
Applications:
Mainly used for cartoning bakery food, snack food, frozen food,
medicine, daily necessities and any other solid product.
Specifications:
| Model | ZH-120 |
| Weight in kg | 1100 |
| Steady production speed | 50-100 cartons/min |
| Grammage | Between 60-70g/m2 |
| Size range | (80-250) ×(90-170)mm (L×W) |
| Fold range | (1-4 )fold |
| Notice: The leaflet can be folded by the machine |
| Grammage | Between 250-350g/m2 |
| Carton Size mm | (65-125)×(30-85)×(12-50)mm |
| Standard power supply | 220V – 50Hz |
| Power consumption in KW | 0.75 |
| Air consumption | 120-160L/min |
| Compressed Air Pressure | 0.6MPa |
| Noise | <70 dB |
Competitive Advantage:
1. we have seven technicians who gets passport ready to travel all
over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine
problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor),
Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore
