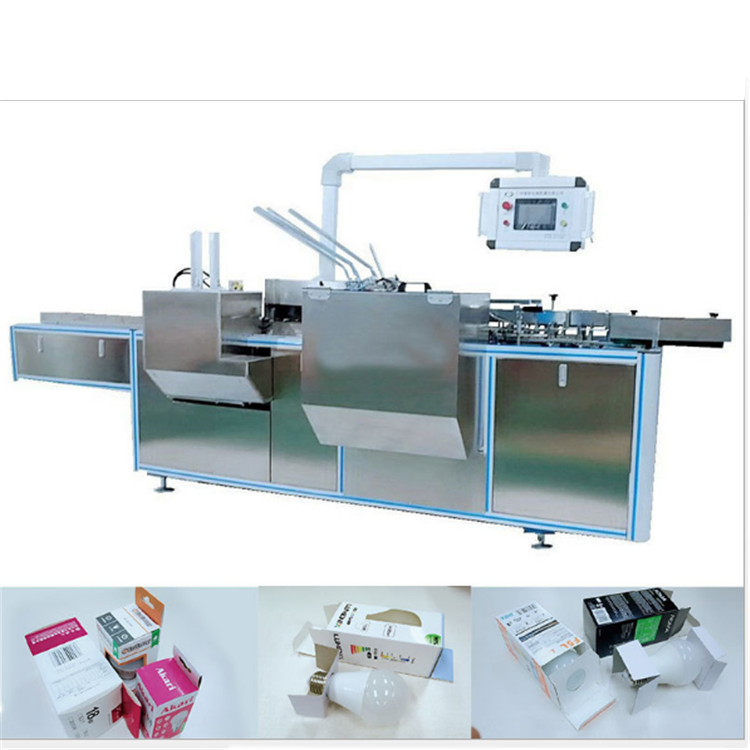

New Auto Feed Touch Screen High Technology Automatic Cartoning
Machine

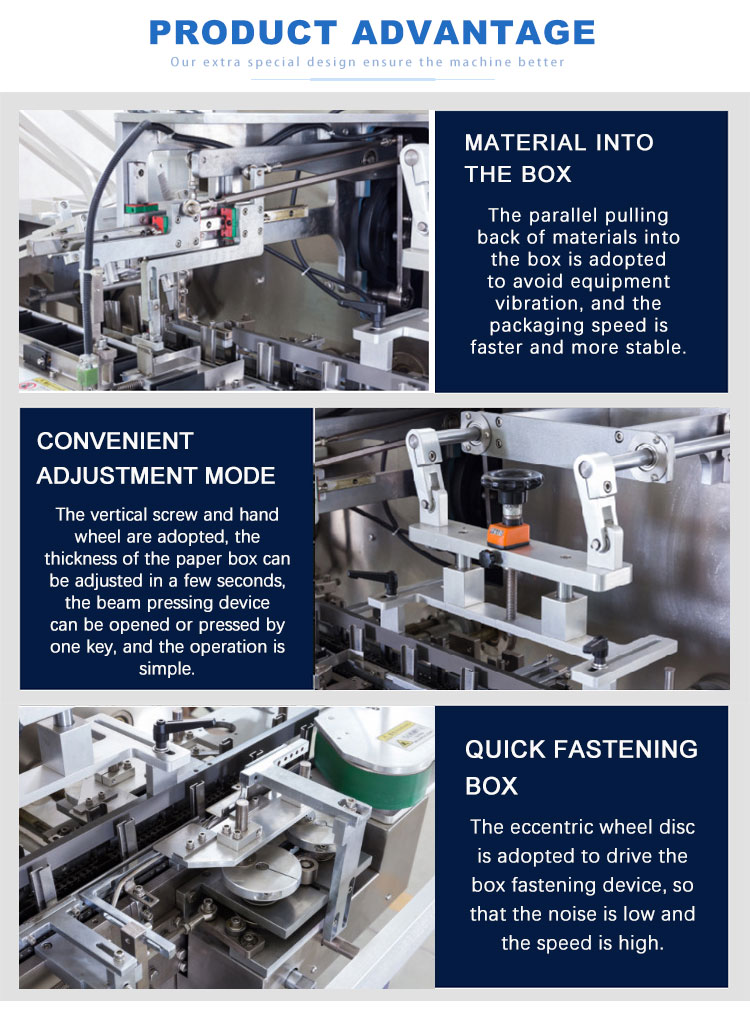

CHARACTER:
1.auto feed , open the box , fill the box , sealingbox and select
box once time ;
2.Touch screen ,PLC control , high technology,operate easy ;
3. Photo electricity trace system check the ,removethe empty box ,
save the packing material ;
4.For difference packing size , adjustable easy ,noneed change the
mode ;
5.Auto protect system, once the goods not entrybox fully ,or
overloading ;
6.With the glass cover ,safety and beautiful ;
7.This machine can join with packing machine , 3Dpacking , filling
machine , labeling machine ,codemachine work together ,become the
completelyline ;

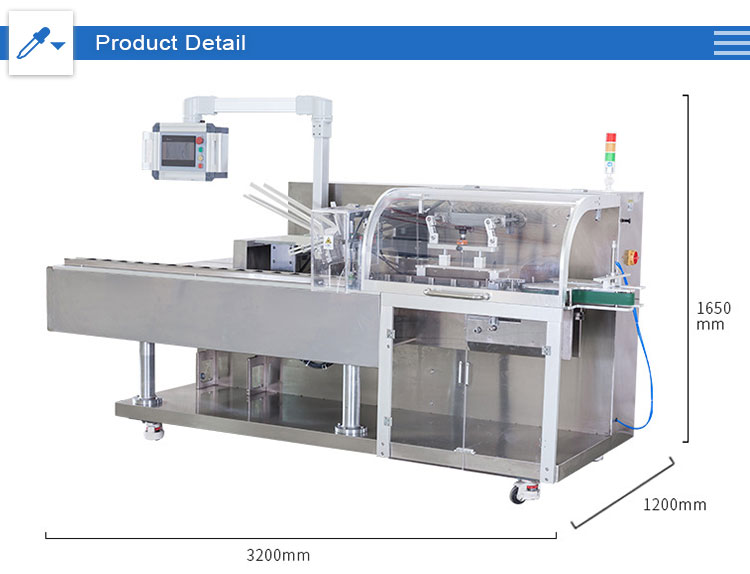

Specifications:
| Model | ZH-120 |
| Weight in kg | 1100 |
| Steady production speed | 50-100 cartons/min |
| Grammage | Between 60-70g/m2 |
| Size range | (80-250) ×(90-170)mm (L×W) |
| Fold range | (1-4 )fold |
| Notice: The leaflet can be folded by the machine |
| Grammage | Between 250-350g/m2 |
| Carton Size mm | (65-125)×(30-85)×(12-50)mm |
| Standard power supply | 220V – 50Hz |
| Power consumption in KW | 0.75 |
| Air consumption | 120-160L/min |
| Compressed Air Pressure | 0.6MPa |
| Noise | <70 dB |
Competitive Advantage:
1. we have seven technicians who gets passport ready to travel all
over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine
problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor),
Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore
Machine Loading Job for shipment:
Clients' Site Traing and Adjusting Job:
Certification and Workshop:
