ZH-100 High Speed Cartoning Machine 1100kg Bottle Packaging Machine

Ask Lasest Price
Brand Name :	LEADTOP
Model Number :	ZH-100
Certification :	CE certification
Price :	29,000usd per set
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	25 sets/month
Delivery Time :	35days

Add to Cart

Product Details
Company Profile

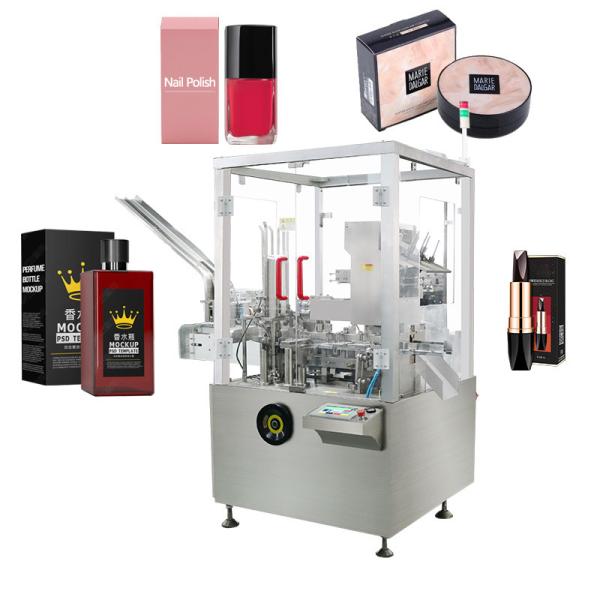

ZH-100 High Speed Cartoning Machine 1100kg Bottle Packaging Machine

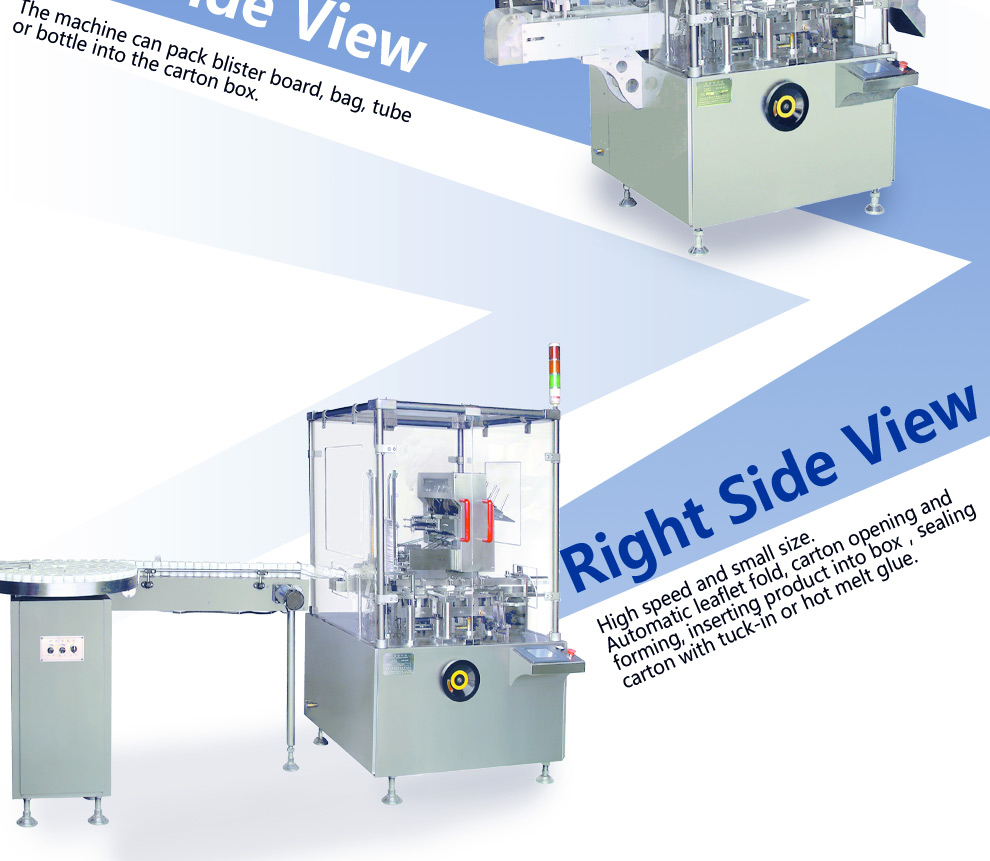

Automatic vertical cartoning packing machine high speed can packed various products. Those materials can be pack by cartoning machine high speed aluminum plastic plate and aluminum aluminum plate. And these machine high speed can cartoning electronic cigarette,facial cleanser,ointment,Sealed pouch various bottled products. These type cartoning packing machine high speed can be connected with the blister packing machine. And machines high speed can line with three dimensional transparent film wrapping machine and strapping machine high speed to form a production line. The automatic cartoning packing machine high speed has strong compatibility and can pack products of various specifications on one machine. The feature of machine high speed is High degree of automation,from feeding, suction carton, forming. And the cartoning machine high speed has on line transmission and folding of leaflet(1-4 folds). these machine high speed with top fold flaps,carton sealing(mechanical sealing or hot melt glue).

Main Technical Data

Model	ZH-100
Weight in kg	1100

Output & Speed

Steady production speed

50-100 cartons/min

Unfold Leaflets

Grammage	Between 65-80g/m²
Size range	(80-210) ×(70-210)mm (L×W)
Fold range	(1-4 )fold
Notice: The leaflet can be folded by the machine

Carton (Card Board)

Grammage	Between 250-350g/m²
Carton Size mm	(40-200)×(12-85)×(16-70)mm

Utilities

Standard power supply	220V – 50Hz
Power consumption in KW	1.5
Air consumption	120-160L/min
Compressed Air Pressure	0.5-0.8MPa

Capacity and Characteristic:

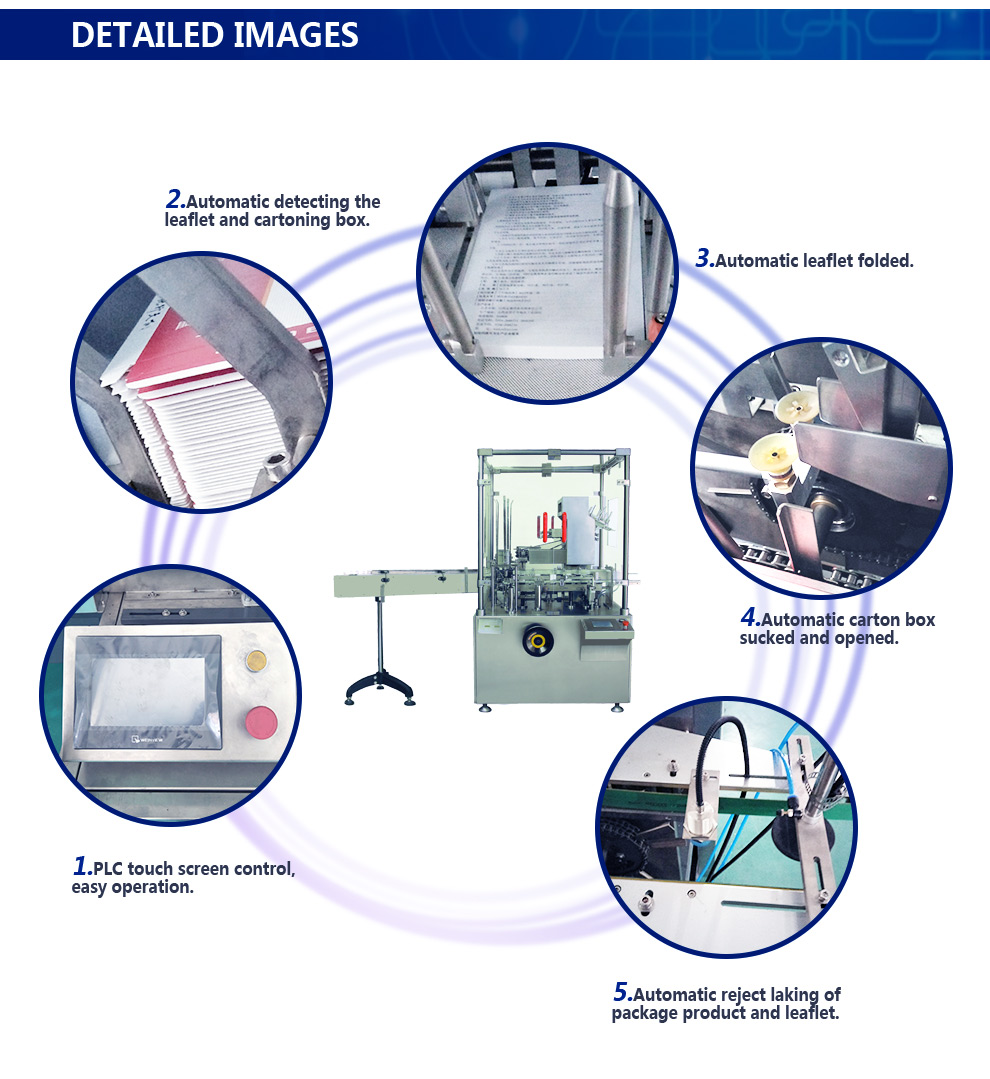

Continuous mechanical feeding materials and carton, and working of each function part are in harmony, stable and reliable.
When material do not reach correct position, the pusher has an alarm and half facility for that, in order to ensure good quality of carton packaging and safety in operation effectively.
Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable.
Vibrating material categorizing and feeding mechanism is stable and reliable.
Half facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.
It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.
Variable frequency speed regulation, PLC automatic control, Operating on the touch screen, words and numeric display, easy to operate, stable coefficients in operation.
Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure
