    Vertical Automatic Cartoning Machine Pharmaceutical 160L

    Ask Lasest Price
    Brand Name : LTPM CHINA
    Model Number : ZH-120
    Certification : CE
    Price : Negociation
    Payment Terms : 30% TT as deposit and 70% before shipping
    Supply Ability : 25 sets
    Delivery Time : In 25 days after receiving the deposit
    • Product Details
    • Company Profile

    Vertical Automatic Cartoning Machine Pharmaceutical 160L

    Industry production Automatic Vertical Cartoning Machine For Condom and pharmaceutical equipment with china market best


    This equipment is new model developping base on integrated domestic and foreign vanguard technology .It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.

    This machine is suitable for condom, pouch, soft al/al strips, wound plaster, ointment plaster, facial mask plaster, coffee bag into carton. On line product feeding and detecting, leaflet fold (1-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.


    2. Features:

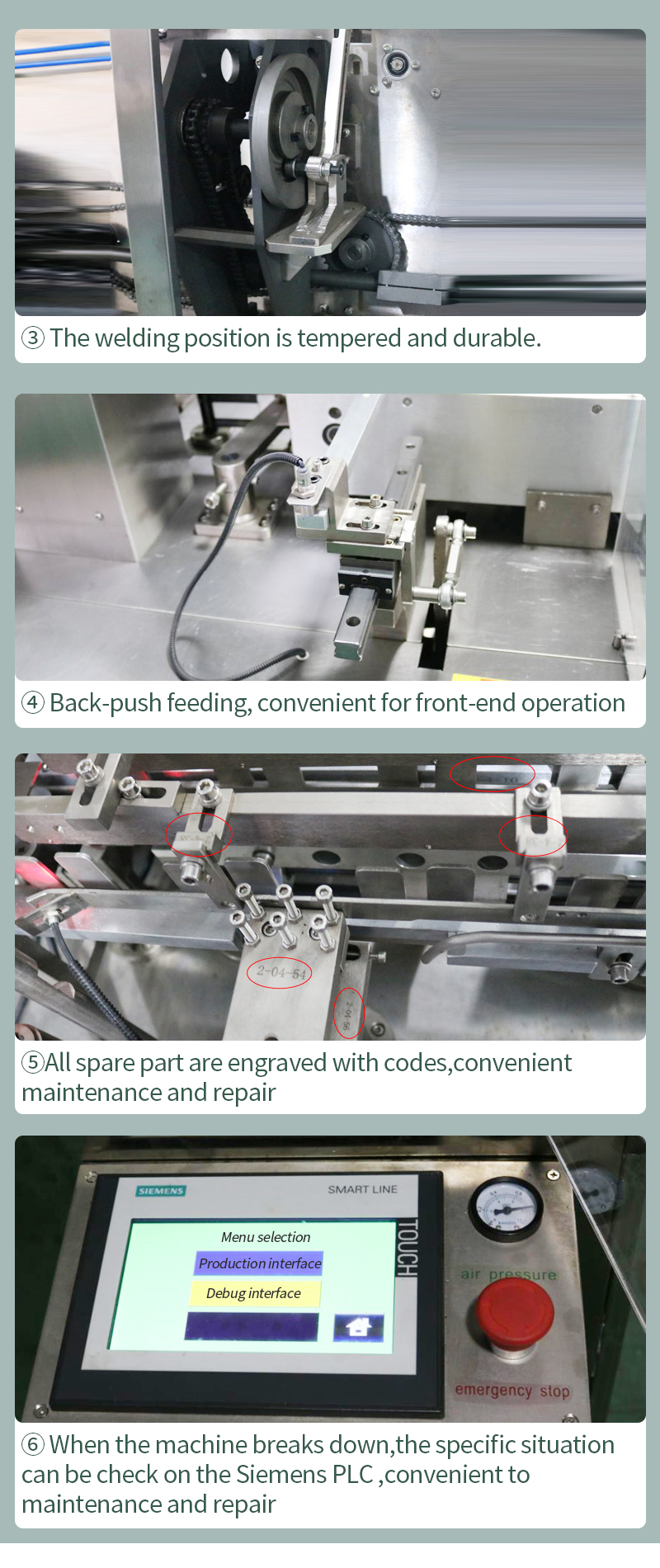

    All the materials are madeof stainless steel and nickel-chromium platedmaterial stable chemicalperformance, corrosionresistance, non-toxicityand harmlessness. Thewelding position istempered and durable.
    When the main motoroverload or foldingmachine failure, startprotection function toensure the safety of equipment and personnel.
    Machine equipped multiple detection points,intelligence is highly,theloading accuracy is 100%
    Lift the head to separatethe pull-down action,making it easier toseparate the paper
    Easy to operate andmaintain equipment


    Product Parameters:


    Encasing speed30-120 boxes/min
    BoxQuality requirement250-350g/m2
    Dimension range (L*W*H)(65-125)mm*(30-85)mm*(12-50)mm
    Quality requirement60-70g/m2
    LeafletUnfolded leaflet specification (L*W)(80-250)mm*(90-170)mm
    Fold range(1-4) fold
    Compressed airWorking pressure≥0.6mpa
    Air consumption120-160L/min
    Power220V/380V
    Motor power0.75kw
    Machine dimension(L*W*H)2150mm*1140mm*1800mm
    Machine weight1100kg
    Machine Details
    Product Application
    It is widely used for different packing including drug, food, commodity and cosmetic. For drug industry such as: cover box for solid torch and capsule, soft box for liquid paste, grease and colloid, tray box for vial, ampule bottle, and injector, as well as bottle box for solid and liquid drug and bag bx for powder and grain products. For food field such as: carton for cans, sweet, chocolate, candy, biscuit, wine, and freezing food, and so on. For commodity and cosmetic industry such as: carton for cream, grease, lotion, colloid, soap, lamp, computer floppy disk.
