Brand Name : | LTPM CHINA |
Certification : | CE |
Model Number : | ZH-120D |
Price : | Negociation |
Delivery Time : | within 25 days after receiving the deposit |
Payment Terms : | 30% TT as deposit and 70% before shipping |
Supply Ability : | 25 sets |
Wholesale China Factory Supply Simple Operation Automatic Vertical Cartoning Machine
Product Description
Cartoning Machine is a new type of machine developed by our company
in combination with advanced technology at home and abroad.Thus,
the performance and working efficiency of the equipment have been
greatly improved, and the requirements of fast packing have been
realized. Moreover, the equipment still maintains a stable and
reliable state during fast operation.

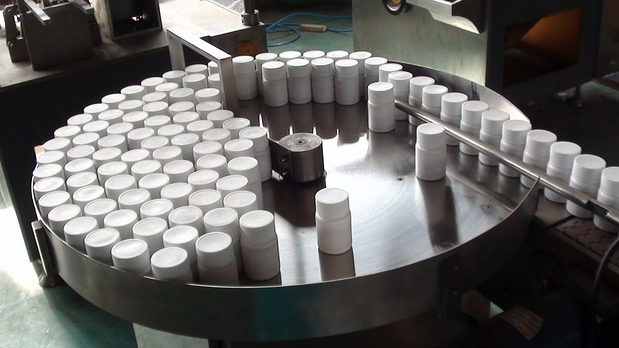

This machine is suitable for automatic feeding and packing of
bottle-shaped articles.The whole process of online automatic bottle
sorting and conveying, manual folding (1-4 times folding) and
conveying, manual detection, carton drawing and forming and
conveying, material entering the carton, stamping batch number,
paper tongue packaging at both ends of the carton (also applicable
to hot melt adhesive), missing material elimination and finished
product output are all completed automatically.
Features:
1.Electric appliances, including the PLC, the touch screen and the
frequency convertors are from well-known international brands.
2.There is the HMI.
3.Errors, working speed and the final-product counting can be
automatically displayed.
4.When the box’s feeding position is not correct, or there is no
box, or there is no leaflet’s feeding, the machine will be stopped
automatically.
5.When there is no content, there is no leaflet’s taking. When
there is no leaflet feeding, there will be no cartonning.
6.There is the protecting if it’s overloaded.
7.Stable properties & convenient operation.
Specifications:
Model | ZH-120 | ||
Weight in kg | 1100 | ||
Steady production speed | 50-100 cartons/min | ||
Grammage | Between 60-70g/m2 | ||
Size range | (80-250) ×(90-170)mm (L×W) | ||
Fold range | (1-4 )fold | ||
Notice: The leaflet can be folded by the machine | |||
Grammage | Between 250-350g/m2 | ||
Carton Size mm | (65-125)×(30-85)×(12-50)mm | ||
Standard power supply | 220V – 50Hz | ||
Power consumption in KW | 0.75 | ||
Air consumption | 120-160L/min | ||
Compressed Air Pressure | 0.6MPa | ||
Noise | <70 dB | ||
Competitive Advantage:
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
![]() |
