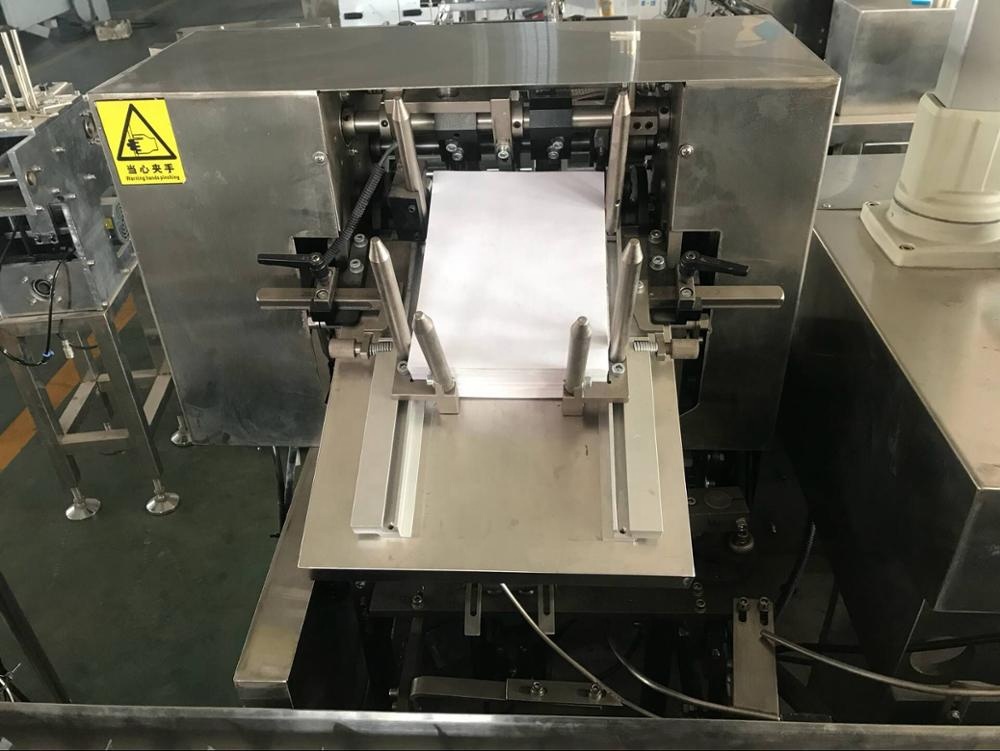

Quality And Quantity Assured Automatic High Speed Carton Box Making Machine

Description:

It is suitable for packing pharmaceutical AL/plastic plate and other related similar contact compact with automatic fish folding ,forming. Opening and loading, batch number printing as well as sealing processes and soon on. It adopts PLC control, photoelectric supervision to coordinate with every parts. Once something unexpected happens when its operating, it can stop and display the reasons automatically, it'sconvenient to solve the troubles in time. This machine can be used separately, and also can used with other blister packing machine.

Features:

1. Touch screen and PLC control

2. GMP standard

3. Easy and fast size change range

4. Secure inserting of product and leaflet

5. Various coding, such as emboss

6. Carton rejection by mission leaflet.

Technical parameters:

1) Running speed: 60 - 120 boxes/min

2) Size range of cardboard box: L*W*H From 65 x 20x 12mm to 220 *88* 60mm

3) weight of cardboard box: 250 - 350gram

4) weight of operation manual: 55 - 65gram

5) Electric source: 380V, three-phase A.C., 50Hz, power: 1.5kW

6) Compressed air: 0.6MPa

7) Air compressor: more than 0.22m3/min (self -prepared)

8) Overall dimensions: 2800*1400* 1650mm

9) Weight: 1200kg

Specifications:

Competitive Advantage:

1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore

Machine Loading Job for shipment:

Clients' Site Traing and Adjusting Job:

Certification and Workshop:

Service Center All Over world:

Headquarter China: LTPM CHINA

Add:28th,Jiuan Rd,Jiuli Industrial Zone,Shangwang. Ruian city,Zhejiang,CHINA

America:
Exclusive Agent and Service center in USA:
JRH Pharma R&D Services
River Falls, WI,USA

Pakistan:
Multi Link
Add.:Karachi
Raki Trader
Add.: Lahore
Philippines:
Payo Manufacturing
Add: Davao
Colombia:
LTPM Colombia
Add: Bogota
Latino America:
LTPM Dominican Republic
Add: Domican republic

Our company is recognized as a major pharmaceutical equipment manufacturer and a distributor of packaging materials and pharmaceutical chemicals. Our company is founded in Rui'an, China, with 18 years' (Opened on 1996 year) experience in pharmaceutical industry. This allows us to expand our business in a well-planned manner. We now offer a comprehensive whole production line of quality pharmaceutical machines,packing materials and APIs at competitive prices. Our main products includes:
Fluid Bed Dryer
Spray Drying Machine
Powder Mixing Machine
Granulating Machine
Capsule filling machine
Blister Packing Machine
Cartoning machine
Tablet Pressing Machine
Bottling Machinery
Liquid Production Line
All kinds of lamination films for pharma packaging
Several kinds of APIs

Our Faith: Your Best Pharmaceutical Production Solution!

We offer whole pharmaceutical Production solutions from raw material processing to finished products. We manufacture and distribute different pharmaceutical machinery,packing materials and APIs with our own engineering teams and after-sales service teams.

Based on our experienced engineering team, we produce top quality machines, paking materials and APIs and also help customers select the best quality suppliers. Our company is a technology-driven company and focuses on producing high quality machinery. We employ 15 engineers on machinery design and technology improvement. Each engineer has at least ten years' machining and packaging area experience. We are your extra technical consultant center.

Quality Control:
Our company owns a quality control department to verify each product at different phases, from the procurement of parts to finished products. In order to offer clients the best quality products, we manufacture products in accordance with international standards, such as FDA, GMP and cGMP.

We are your best pharmaceutical production solution!
