Three Phase Blister Packing Machine Automatic Aluminum Plastic 380V
50HZ
Quick Detail:
Adjustable scope of feed travel:10-160mm
Model No.: DPP-250
Sheet's quantity of one blanking:1-4 sheets
Capacity: 12000 Sheets per hour
Material: Stainless steel 304
Blanking frequency:15-50 Cutting/min
Power Supply: 380V 50HZ Three Phase
Certificate: CE Certificate
Description:
1. Travel scope can be adjusted.
2. Alu Alu Blister Packaging is available for this machine.
3. Mould is located by locating groove which makes it easy to
change mould. The machine heats the PVC through conduction and
forms it through pressing and frothing.
4. The material is fed automatically. The mould and feeder can be
designed as user’s requirements.
5. Speed is shifted by step-less transducer. Adopt the interface of
human-machine and PLC programmable controller, it can synchronize
accurately.
6. Adopt the equipment of trace pressing, batch number printing and
scarp-collecting.

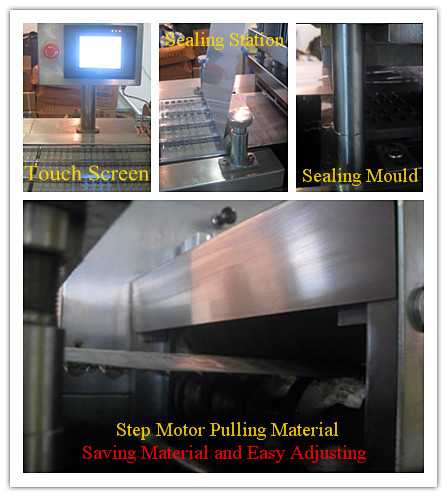

7. Stepping motor Pulling Material more accuracy and easy adjusting
8. The heating moulds will automatically separate when the machine
stops, which contributes to protect the material between them and
extend the machine’s life.
Applications:
The machine is new product which is improved based on customer’s
requirements. It’s suitable for packaging of all kinds of liquid
and solid in large & medium pharmaceutical factory, health medicine
factory, hospital preparation lab, food industry, electronic
industry, hardware industry, etc. It can protect the material from
steam or dust, improve product packing degree, and increase the
additional value. The machine is used to produce large quality and
single product.
Specifications:
| MODEL: | DPP-250 |
| Blanking frequency (Cutting/min): | 15-50 |
| Sheet's quantity of one blanking (sheets): | 1-4 |
| Capacity (sheets/hour): | 12,000 |
| Adjustable scope of feed travel: (mm) | 10-160 |
| Max Forming area and depth (mm) | 270×120×25 |
| Capacity of air compressor(m3/min): | ≥0.36 |
| Power supply: | 380V AC, 50 Hz, Three Phase |
| Total Power | 8Kw |
Wrapper specification (mm): PVC Film Blister foil Alu Alu Foil | Max.270× (0.15-0.5) Max.270× (0.02-0.035) Max. 270*(0.11-0.25) |
| Weight (kg): | 1260Kg |
Competitive Advantage:
1. we have seven technicians who gets passport ready to travel all
over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine
problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor),
Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent),
Laho(Distributor)
