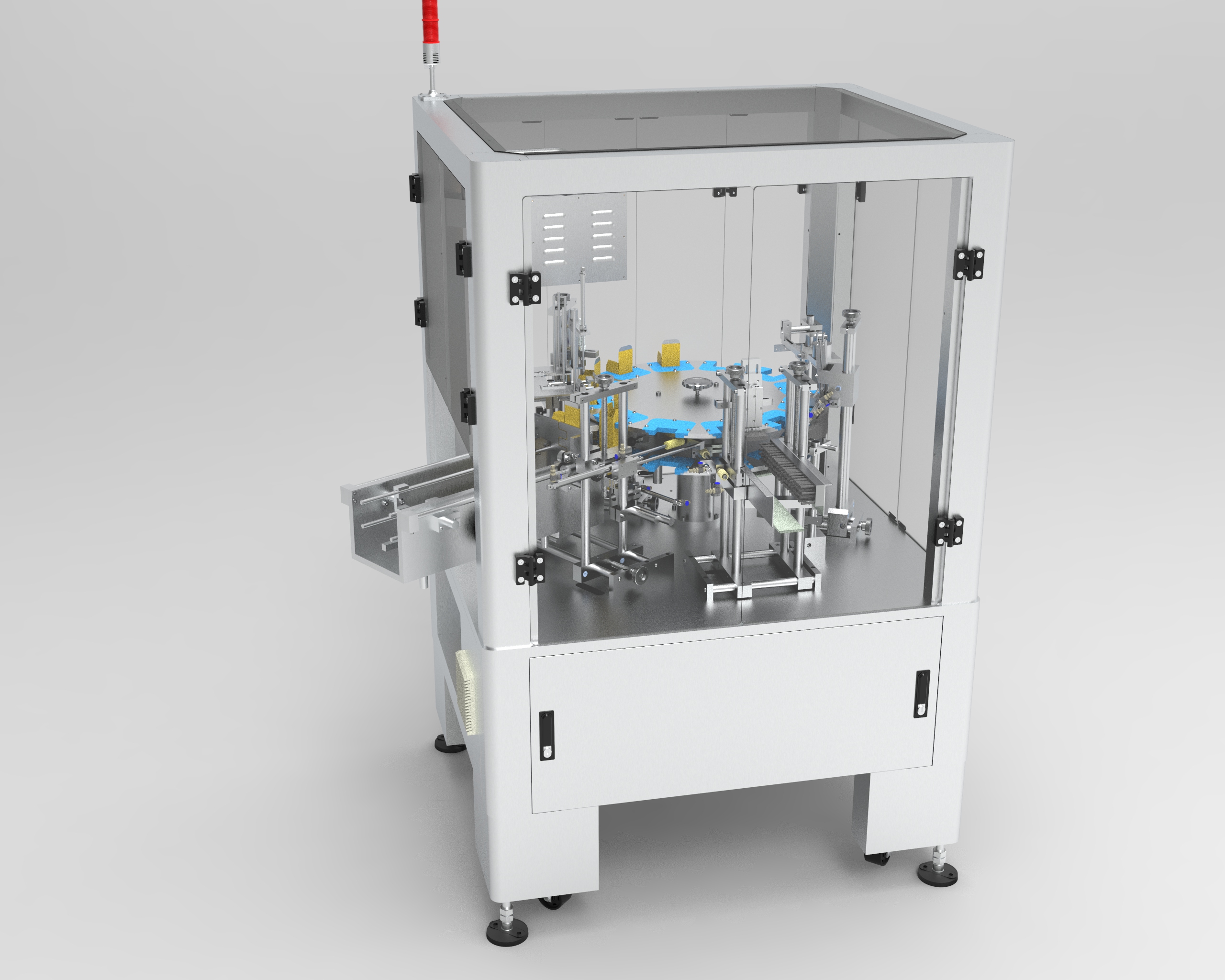

It is applied to a variety of foods and daily necessities. The
operation process is as follows: automatic carton forming,automatic
feeding, automatic forming of carton hooks, and bottoming of
products. Push the paper tray and seal the box.
APPLICATION :
Round bottled medicine, food-stuff, cosmetic, etc. packing into
square box.
OPTION :
Leaflet Inserting , Hot Glue, Hot Ribbon Date Code , Embossed date
Code
FEATURES:
1.This equipment is specially designed for small output and
multi-size carton packaging.
2.Small footprint, economical and practical and suitable for a
variety of boxes.
3.Save labor cost, 40 boxes per person per minute, greatly
improving production efficiency.
4.The whole equipment is made of stainless steel 304.
5.The equipment adopts advanced PLC control with touch screen
operation function, and the production speed can be adjusted at
will without adjusting any other parameters.
6.Advanced electrical control system: the imported encoder is used
to control the electrical centralized, which is convenient to use
and simple to operate.
7.The first carton feeding system in China, which realizes the
function of adding new carton without stopping the machine.
8.This equipment can be connected with the front-end liquid filling
machine, aluminum-plastic packaging machine, pillow packaging
machine and other packaging machines, and realize fully automatic
work. The back end can be connected to the labeling machine,
strapping machine, heat shrinking machine and three-dimensional
packaging machine.
9.Available optional functions: print production date,
automatically add instructions, hot melt adhesive sealing device,
automatic feeding device, etc.
Packing Process:
1. Push box into star wheel.
2. Fold box lower small flap.
3. Press both lower big flaps.
4. Flatten both big flaps.
5. Product fall into box.
6. Fold box upper small flap.
7. Press both upper big flaps.
8. Flatten both big flaps.
9. Product push out.
Product Parameters:
| Model No. | ZH-50 |
| Packing speed: | 20-50box per min |
| Paper box's largest size | 200*80*80mm |
| Paper box's smallest size | 60*20*20 mm |
| Paper quality of carton | 250-350g/m3 |
| Motor horsepower | 1/4HP 15:1 |
| Power supply | 220V 50/60HZ single phase |
| Machine noise | ≤80dB |
| Gas source | 0.5-0.8 Mpa |
| Compress air consumption | 150L/min |
| Machine measurement: | 1100*1500*1900 mm |
| Machine weight | 250Kg |
