The machine adopts PLC and touch screen display control. The dual
servo system can complete any reasonable position curve, with small
impact on the moving track and high moving speed. Equipped with
bottle shortage alarm and shutdown, no bottle, no packing, safe
configuration, which greatly facilitates operation and reduces
production management personnel and labor intensity.
characteristic:
(1) The main drive adopts frequency conversion speed regulation and
PLC control technology, combined with man-machine interface to
realize stepless speed regulation, convenient operation, compact
and reasonable structure and high degree of automation.
(2) It adopts oil-free pneumatic components, and most moving parts
adopt humanized design without oil lubrication for life, which
reduces a lot of use costs for users. The centralized lubrication
scheme is adopted for the parts of a small number of moving parts
that need to be lubricated by the user, which is convenient for
refueling and easy for daily maintenance; At the same time, the
noise is low and there is no oil pollution.
(3) The box entry operation is equipped with manual box entry and
automatic box entry, which is convenient to adjust the equipment.
(4) It is equipped with a variety of protection functions to shut
down in time in case of failure. For example, when the box is not
full, it will automatically stop and wait; There is no product
automatic shutdown waiting at the whole train;
(5) According to the packing requirements, the products can be
sorted and arranged automatically.
(6) Novel design and compact structure.
(7) It is applicable to a wide range of products.
(8) It is especially suitable for matching with the packaging
assembly line and is easy to move.
(9) Computer program control, simple operation and stable action.
(10) Bottle, box, bag and barrel series.
Product Parameters:
| Model No. | ZH-50 |
| Packing speed: | 20-50box per min |
| Paper box's largest size | 200*80*80mm |
| Paper box's smallest size | 60*20*20 mm |
| Paper quality of carton | 250-350g/m3 |
| Motor horsepower | 1/4HP 15:1 |
| Power supply | 220V 50/60HZ single phase |
| Machine noise | ≤80dB |
| Gas source | 0.5-0.8 Mpa |
| Compress air consumption | 150L/min |
| Machine measurement: | 1100*1500*1900 mm |
| Machine weight | 250Kg |

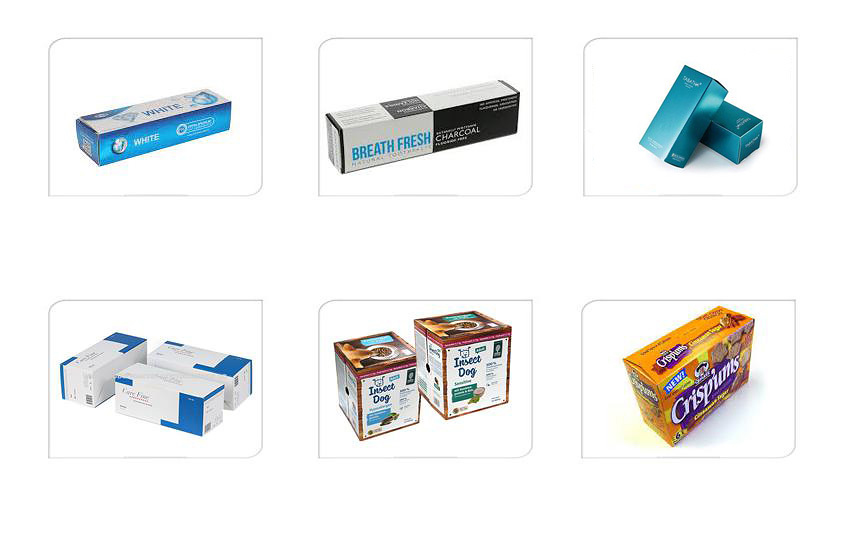

Application
