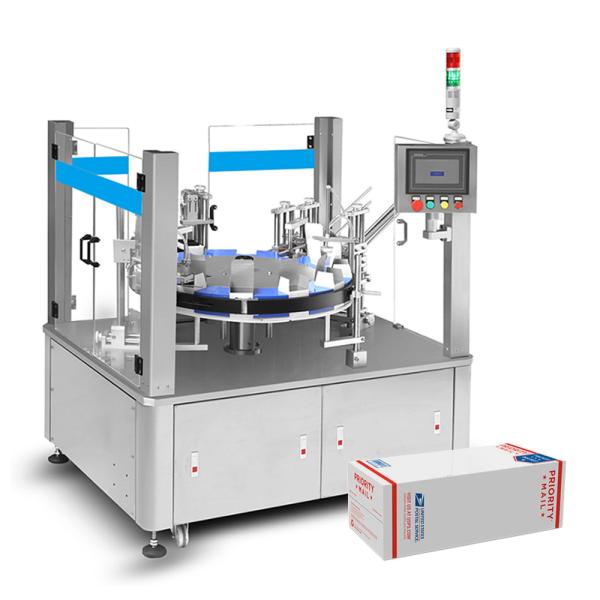

0.5Mpa Vertical Cartoning Machine 380V 50Hz Semi Automatic Packing Machine

LeadTop Pharmaceutical Machinery Co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 0.5Mpa Vertical Cartoning Machine 380V 50Hz Semi Automatic Packing Machine from wholesalers

    Buy cheap 0.5Mpa Vertical Cartoning Machine 380V 50Hz Semi Automatic Packing Machine from wholesalers
    • Buy cheap 0.5Mpa Vertical Cartoning Machine 380V 50Hz Semi Automatic Packing Machine from wholesalers
    • Buy cheap 0.5Mpa Vertical Cartoning Machine 380V 50Hz Semi Automatic Packing Machine from wholesalers

    0.5Mpa Vertical Cartoning Machine 380V 50Hz Semi Automatic Packing Machine

    Ask Lasest Price
    Brand Name : LEADTOP
    Model Number : ZH-50
    Certification : CE certification
    Price : discuss personally
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 25 days/month
    Delivery Time : 25days
    • Product Details
    • Company Profile

    0.5Mpa Vertical Cartoning Machine 380V 50Hz Semi Automatic Packing Machine


    pick-place carton packing machine is used for grasping and placing bottles by air inflation and deflation. Through the mechanical operation, pneumatic and electric control, the bottles are accurately and steadily loaded into the carton from the conveyor belt.


    According to customer requirements for product packaging, the product feed for accurate whole column grouping, while underlying pre-sync to the product carton boxes preset position, and then by the lifting mechanism rear jacking good product grouping randomly fall into cartons, lifting mechanism automatically drops to a horizontal position and the outlet conveyor, cartons output by the transport section; each part of the linkage is adjusted by the electric air control to simultaneously ensure that each group of products can be accurate and effective automatic packing and output. Application: Fields of food, beverage, pharmaceutical, cosmetic, chemical, and other. Common to all types of PET bottles, cans, Pak packaging.


    Application:

    Automatic High speed continuous cartoning machine is new model which innovation design base on bringing in foreign advanced technology, also strictly according to pharmaceutical industry “GMP “standard to manufacture. With high efficiency, high performance production capacity, leaflet folding and conveying, carton opening and forming, posterior pushing structure and related technology all reach Europe and USA standards.

    Item


    Features:

    1. Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.


    2. No products not suction leaflet, no leaflet not suction carton.


    3. Automatic detection and rejection device for lacking blister goods and leaflets.


    4. Protecting automatically for overloading.


    5. Stable performance , operation is easy.


    Main Technical Data:

    ModelZH-50
    Packing speed30-60 Cartons/min
    Carton size rangeL(40-100)mm×W(12-60)mm×H(12-60)mm
    Carton gram requirements250-350g/m3
    Motor power1.5KW
    Power supplyThree phase 380V 50Hz
    Machine noise≤80dB
    Air pressure0.5-0.8 Mpa
    Air consumption150L/min
    Dimension1100×1500×1900 mm
    Weight250Kg
