Tube Vertical Cartoning Machine Round 1.5Kw Rotary Packing Machine

Ask Lasest Price
Brand Name :	LEADTOP
Model Number :	ZH-50
Certification :	CE certification
Price :	discuss personally
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	25 days/month
Delivery Time :	25days

Add to Cart

Product Details
Company Profile

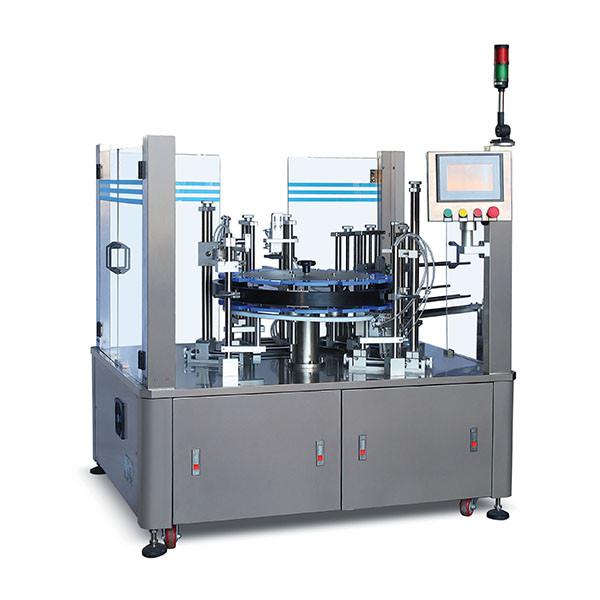

Tube Vertical Cartoning Machine Round 1.5Kw Rotary Packing Machine

Suitable Usage

Packing Round bottles into square box for medicine, food-stuff, cosmetic and other industries’

Brief Introduction

1.Model semi-automatic cartoning machine (carton-folding-filling-packing) is specialy design to pack small quantities multi-size box.

2.With low cost and only require small area. It is suitable for various sizes of box. The machine is a vertical type with multiple functions, and is required a short time to change mould.

3. The machine is made of aluminum alloy with anode treatment. Rust proof long service life cycle and easily clean.

Application:

Carton semi automatic packaging and sealing in pharmaceutical industry, food industry, cosmetics industry and auto parts industry.

Main Technical Data:

Model	ZH-50
Packing speed	30-60 Cartons/min
Carton size range	L(40-100)mm×W(12-60)mm×H(12-60)mm
Carton gram requirements	250-350g/m³
Motor power	1.5KW
Power supply	Three phase 380V 50Hz
Machine noise	≤80dB
Air pressure	0.5-0.8 Mpa
Air consumption	150L/min
Dimension	1100×1500×1900 mm
Weight	250Kg

Detail

1.Large capacity storage box rack

With the long boxes' feeding shelf design, you can place up to 1000 pcs boxes, the machine will alarm and stop automatically when

the boxes are going to running out.

2.Sensor Identify the box

The box storage shelf will stop to feed boxes once there is no box get detected on the conveyor, which will prevent from the box wasting.

3.Automatic feeding device

Pneumatic manipulator can fill materials accurately and at a high speed.

Different products we packed:
