Description:
1. The machine adopts step motor for driving, high accuracy
working. (Servo Motor is also an optional)
2. PLC control with Touch screen for operation. This controlling
system are Taiwan Delta Brand.
3. The sensors of the machine are Japan imported brand, Keyence,
High speed and accurate working.
4. The machine comes with automatic alarming system when lack of
label, breaking label, lack of ribbon.
5. Whole body stainless steel 304 with T6 Aluminum Alloy meets GMP
Standard.
The position of height and backwards or forwards are adjustable
Applications:
MT-200 model vertical type round bottle Round Bottle Labeling
machine, in order to achieve rationalization of production target
and design. The machine comes with automatic labeling process,
simple operation, high speed running, accurate labeling position,
beautiful labeling. The machine can be used for pharmaceutical,
chemical and foodstuff Industry labeling.
Main Features:
1) Wide application range, can meet the needs of all round bottle
labeling or semi circle labeling, labeling switching between the
bottle is simple, easy to adjust
2) The label accuaracy is good, the tape detour adopts the
rectifying mechanism, the tape does not deviate, the three
directions of the labeling position x / y / z and the inclination
are adjustable with eight degrees of freedom, and the adjustment
has no dead angle.
3) The label quality is excellent, adopt the elastic press cover
belt, the label is flat, no wrinkle, improve the packing quality.
4) The application is flexible , the bottle standing type labeling
machine is provided with an automatic bottle separating function ,
can be produced in a single machine , and also can be connected
with the production line.
5) Intelligent control , automatic photoelectric tracking , non -
labeling , non - standard automatic correction and label auto -
detection , prevention of leakage and label waste.
6)High stability, The supporting equipment runs 7 × 24
hour,Mitsubishi PLC,SIEMENS Touch ,KEYENCE bottle sensor,Leuze high
accuracy label sensor.
7)The adjustment is simple , the labeling speed , the conveying
speed and the bottle separating speed can realize stepless speed
regulation , and the adjustment is carried out according to the
requirement.
8)Strong and durable, adopt three bar adjusting mechanism, make
full use of the stability of triangle, the whole machine is solid
and durable. It is made of full ss304 stainless steel,which is in
line with the requirements of GMP production.
Specifications:
| Driver Motor: | Stepping motor |
| Operation: | Right or left |
| Running speed: | 10-200 PCS/min |
| Packaging Range: | Ф 15 - Ф diameter 100mm Height 25-350mm Label size width 10-150mm length 15-200mm |
| Maximum diameter of label: | Ф 300mm |
| Coil diameter: | Ф 75mm label |
| Weight: | 200kg |
| Power supply: | AC220V 0.5Kw 60HZ |
| Overall Size: | 2000X1300X1500 |
| *Ribbon Coding machine: | HP 260Q |
Competitive Advantage:
1. We have seven technicians who gets passport ready to travel all
over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine
problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor),
Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho

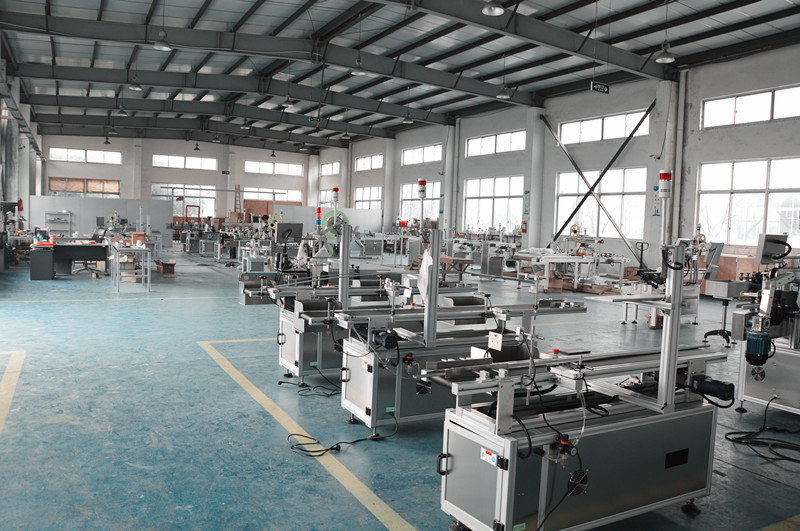

Our Work Shop:
