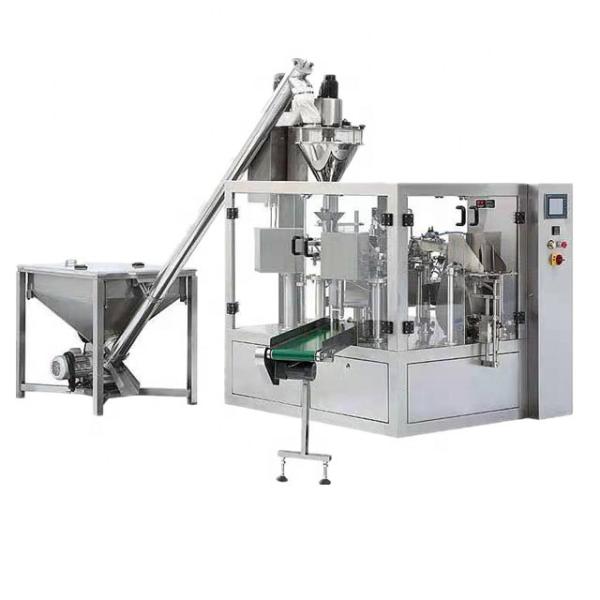

Spice 300A Powder Sachet Filling Machine Bag 2kw Pillow

    Buy cheap Spice 300A Powder Sachet Filling Machine Bag 2kw Pillow from wholesalers

    Buy cheap Spice 300A Powder Sachet Filling Machine Bag 2kw Pillow from wholesalers
    • Buy cheap Spice 300A Powder Sachet Filling Machine Bag 2kw Pillow from wholesalers

    Spice 300A Powder Sachet Filling Machine Bag 2kw Pillow

    Ask Lasest Price
    Brand Name : LTPM CHINA
    Model Number : DXD-Series
    Certification : CE, GMP, SGS, BV
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, MoneyGram
    Supply Ability : 45 sets/month
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    Spice 300A Powder Sachet Filling Machine Bag 2kw Pillow

    High Efficiency Automatic Preformed Bag Powder Packing Machine For Spice Powder Coffee Powder

    Product Description:

    High efficiency automatic preformed bag powder packing machine for spice powder coffee powder

    1 Convenient operation, using German Siemens PLC control, with touch screen man-machine interface control system.


    2 Frequency conversion speed regulation, this automatic preformed bag packing machine uses frequency conversion speed regulation device, the speed can be adjusted at will within the specified range


    3Automatic detection function, if the bag is not opened or the bag is incomplete, no feeding, no heat sealing. The bag can be reused, no waste of materials, saving production costs for users.


    4The temperature is adjusted by PLC, which can be changed arbitrarily on the coffee powder packing machine touch screen according to the packaging bag.


    5The machine adopts the function of parking brake, which plays a role of safety protection when it is stopped.


    6 This machine adopts imported engineering plastic bearings, no need to add oil and no maintenance, reducing the pollution of materials.


    7 Meet the sanitary standards of the food processing industry, and the parts of the powder bag packing machine in contact with the materials are made of stainless steel or materials that meet the food sanitation requirements.


    8 The packaging bag has a wide range of applications. For multi-layer composite film, single-layer PE, PP and other materials made of prefabricated bags and paper bags can be applied.


    Main Features:


    1 Automatic weighing products,production bags,printing dates,sealing,and packaging are automatically completed at one time.
    2 Chinese and English touch screen display, intuitive and simple operation.
    3 PLC computer control system,the operation is more stable, and any parameters can be adjusted without stopping.
    4 Ten sets of parameters can be stored, and the replacement variety is more accurate.
    5 Using servo motor pull, the positioning is more accurate.
    6 Independent temperature control system with an accuracy of ±1 °C.
    7. The horizontal and vertical sealing temperatures are independently controlled, and can be applied to various packaging materials such as composite film and PE film.
    8 Packaging styles are diverse, back seal, gusset, four sides hot, four side seal, standing bag, even bag, punching and so on.
    9 The working environment is clean and the noise is small.

    This equipment is configured as double transport membrane mechanism: the film resistance is small, the film transport speed is fast, etc.


    Technical Parameters:
    Type number200A300A
    Weighing range5-1500 grams100-2500 grams
    Packing speed10-40 bags/minute10-30 bags/minute
    Machine weight1060 kg1280 kg
    Total power1.5 kw2.0 kw
    DimensionsL1650×W1380×H1500mmL2200×W1850×H1500mm
    Packing bag materialComposite film, PE, PP, etc.
    Packing bag sizeL: 350mm W: 100-210mmL200-450mm W:200-300mm
    Compressed gas consumption0.4CBM/Min



    Advantage of Vertical Packing Machine:

    · PLC controller with touch screen interface

    · Servo-driven end seal jaws

    · Servo-driven film transport

    · Hot printer and film feeding system synchronous

    · Quickly changing one-piece bag former

    · Eye mark sensor for film tracking

    · Stainless steel frame


    About Machine:



    FAQ:

    Question 1: What are your advantages?

    Answer:

    With rich industry experience and strict Product Quality Control systems, we provide:

    1). Stable and reliable product with reasonable price

    2). Good customer service: Fast response to any inquiry or question

    3). On-time delivery.

    Question 2: Are you manufacturer?

    Answer: Yes, we have the cooperated factory with more 9 years experience.


    Question 3: What are your Price Terms?

    Answer: Price can be based on FOB, CFR, or CIF, etc.


    Question 4: What are your Payment Terms?

    Answer: Payment could be made by T/T, L/C, or D/P, etc., it varies considerably according to the region that you are in.


    Question 5: What's your Minimum Order Quantity?

    Answer: 1set


    Question 6: Do you have English Manual for each machinery?

    Answer: Yes. The instruction manual would come to you together with the equpment.


    Question 7: Can I print my Logo on the machine?

    Answer: Yes, our pleasure to to do it for you.


    Question 8: Can you customize the machine for me ?

    Answer: Yes, Customized service is available.


    Question 9: What shall we do if breakdown occurs?

    Answer: Please informed us once the breakdown occurs. During warranty period, if breakdown occurs, we shall respond in time after receiving the notification of the buyer. We shall handle failure over the telephone/ fax or arrange relevant personnel to the site according to the buyer’s requirements.


    Question 10: What are your modes of transportation?

    Answer: Courier service, Express service, Air transport, Sea Transport.


    Question 11: Which ports do you usually ship at?

    Answer: We can load container at: Qingdao, Shanghai, Ningbo, Tianjin, Guangzhou etc.
