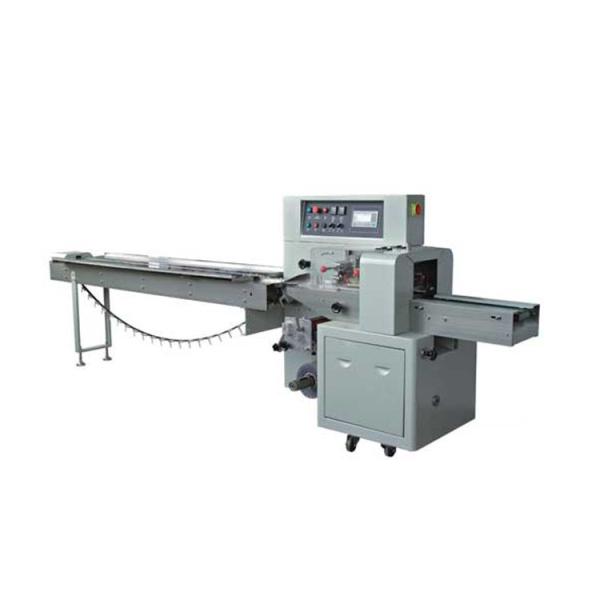

    2.4kW Automatic Pouch Packing Machine

    Ask Lasest Price
    Brand Name : LTPM CHINA
    Model Number : KD-260
    Certification : CE, GMP, SGS, BV
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, MoneyGram
    Supply Ability : 45 sets/month
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    2.4kW Automatic Pouch Packing Machine

    1. Hot selling food packaging machine made in Chinause double motor, double Panasonic transducer and PLC controller,flexible bag length setting and cutting,saving time and film.
    2.Human-machine interface, convenient and quick parameter settings.
    3.Self diagnosis failure function, failure displayed clearly.
    4.High sensitive optical electric color mark tracking system and digital input cut position, which make the sealing and cutting more accurate.
    5.Separated PID control system for temperature, suitable for various packing materials.
    6.Stopping the machine in selected position, no sticking on the knife and no waste of the film.
    7.Simple driving system, reliable working, convenient maintenance.
    8.All controled by program, convenient for function adjusting and upgradin


    Application:


    Apply to the packing of various kinds of items with regular shape in many industries: Food (Snack bar,bread,cookies,ice lolly,cake.chocolate,) Plastic(Cutlery,tray,) hardware(handle,bearing,Car parts, washer, ) Soap,sponge,tissue,Card,vegettable,..... et


    Technical Parameters
    Max.Film width
    260mm
    Max capacity of packing
    20-120 pcs/ min
    Film thickness
    Film thickness
    Bag Length
    60-300 ( Do not exceed this size )
    Packing width
    25-150mm
    Packing Height
    ≤80mm
    Power Supply
    220V 2.4 kW
    Overall dimensions(L*W*H)
    2600*750*4500mm
    Total Weight
    680kg


    Packing&Shipping
    Machine Packing Details:

    1)Dedust & Cleaning
    2) Lubricate Drive Parts
    3) Divide Machine Into Modules
    4) Wrap Modules With Plastic Film
    5)Packing Modules into Plywood Cases
    6)Mark Shipping Mark In The Cases
    If any special requirements, we will pack it as requested.
