Description:
1. This machine is designed for the labeling of vials, ampulla,
plastic bottle, glass bottle, round bottle, square bottle etc.
2. It adopts world-renowned electrical and pneumatic components,
such as MITSUBISHI/ LEUZE/ OMRON/ DANFOSS.
3. SUS304 stainless steel construction, acid and corrosion
resistance.
4. Can be used in food factories, beverage factories, supermarkets,
medicine, chemical, cosmetics and other fields.
5. Two sides labeling, stick two labels at the same time.
Main Feature
1. The pressure roller is made of soft silicone material, which has
no scratch on the product and the label is firmly attached;
2. Ball transfer mechanism is used before and after the conveyor
belt, and the docking production line can avoid bottle pouring,
back pressure bottle and improve transmission efficiency.
3. Adopting International renowned Brand Configurations , improving
machine stability.configurations to improve equipment stability and
electrical components
4. Support header mechanism, using triangular fixed rod support to
improve the stability of the equipment
5. The device feeder puller mechanism is a diamond friction wheel,
which greatly improves the friction force when pulling the label
and improves the labeling accuracy.

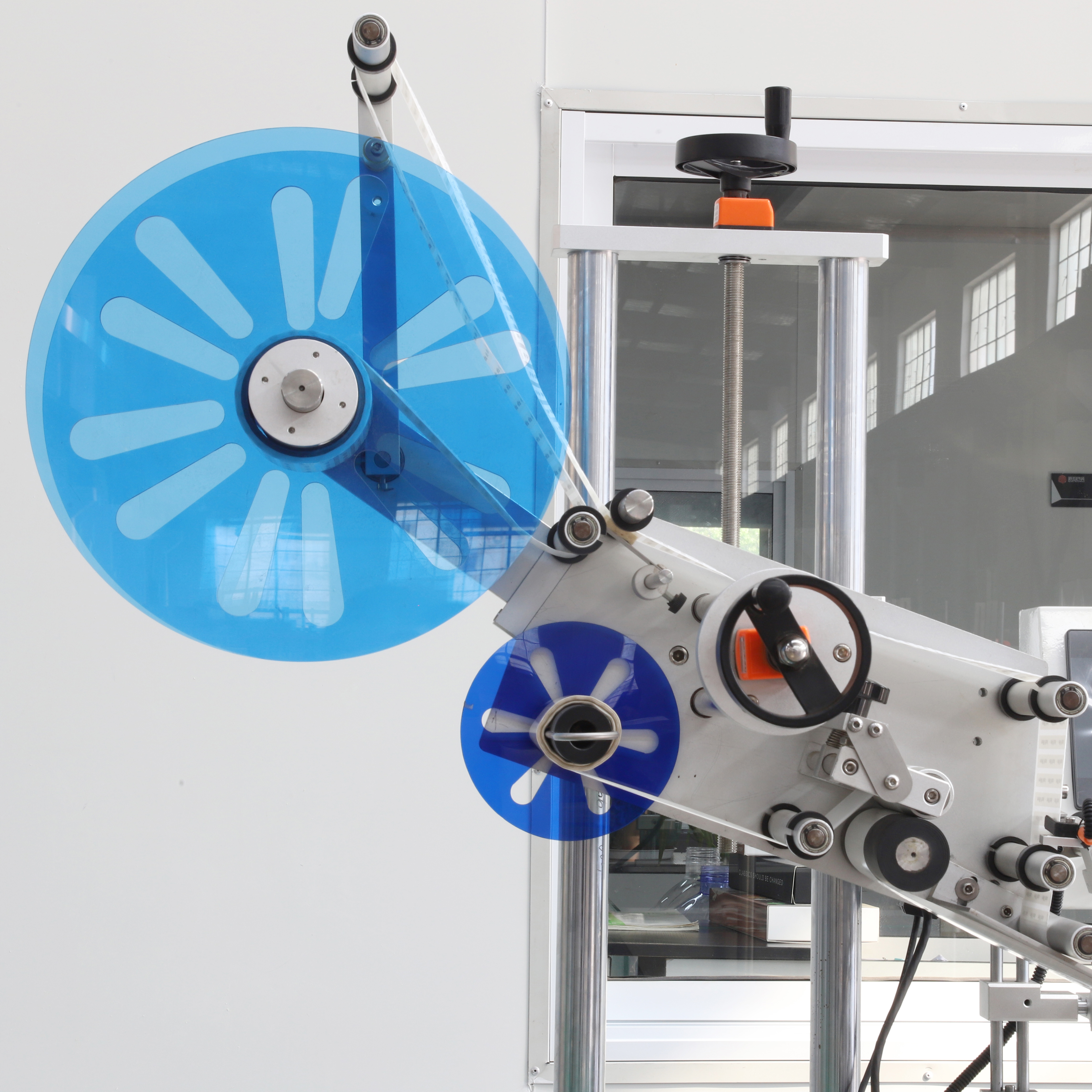

6. Label unwinding disc, in the labeling process, the brake
mechanism of the unwinding disc adopts the cam mechanism principle
to ensure the constant tension of the label, greatly improving the
labeling accuracy and stability.
Specifications:
| Production | 50-130bottle/min |
| Label Specifications | Glassine paper, adhesive sticker opaque label |
| Labeling accuracy | ±1mm (subject to the roughness of the plane) |
| The application of label | Object customizing |
| The application of label | Height 20-70mm Length 25-120mm |
| The inner diameter of label | Roll 76mm |
| The outer diameter of label | Roll 350mm |
| Driving mode | Servo motor |
| Power of motor | 500w |
| Voltage | AC 220V 50/60Hz Single phase |
| Overall dimension | 2200×1000×1800mm |
