    Pouch Automatic Bottle Filling Capping Labeling And Sealing Machine 380V 800W

    Ask Lasest Price
    Brand Name : LTPM China
    Model Number : MT-Series
    Certification : CE, GMP
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 25sets/month
    Delivery Time : 25days
    • Product Details
    • Company Profile

    Pouch Automatic Bottle Filling Capping Labeling And Sealing Machine 380V 800W

    Automatic Bottle Filling Capping Labeling And Sealing Machine

    Products Description

    This automatic round bottle labeling machine is suitable for labeling on the circumferential surface of round bottle objects. It can be affixed to single and double labels. The front and back double standard spacing can be flexibly adjusted. For example, gel water round bottles, food round cans, etc., are widely used in cosmetics, food, medicine, Disinfected water and other industries.Optional circumferential positioning detection device can be used to label the specified position on the circumferential surface.

    The optional color code printer and inkjet printer can print the production date and batch number information on the label to realize the integration of labeling and coding.


    Application:

    This model is applicable to label plane bottles of various sizes in daily chemicals, beverages, medicine and other light industries.


    Features:

    Touch screen operation, easy to learn and simple to manage

    Simple and quick to make adjustment for any product size changes.

    The controlling system adopts SIEMENS PLC and famous human interface, can be operated in Chinese and English, stable and high-speed

    The famous precise sevo motor drive the labeling head and control the conveying of labels.

    Specialized for plane bottle labeling. High accuracy and bubble-free on repeated labeling.

    Can be used alone or join the production line.

    Concise structure, easy to operate and repair for workers


    Structure and performance specification:

    1. The overall appearance material is mainly made of 304 stainless steel and aluminum alloy;

    2. A wider range of application, can meet the full circumference of the round bottle labeling or half circumference labeling,

    double-sided labeling, through simple customization, can also be affixed with tapered bottles.

    3. The labeling quality is excellent, using soft rubber wheel to cover the labeling, labeling smooth, no fold;

    4. Servo motor control label traction, labeling accuracy, efficiency and strength control is more intelligent and stable, with high

    speed and low speed smooth operation, strong overload resistance, fast response speed, and low noise etc.

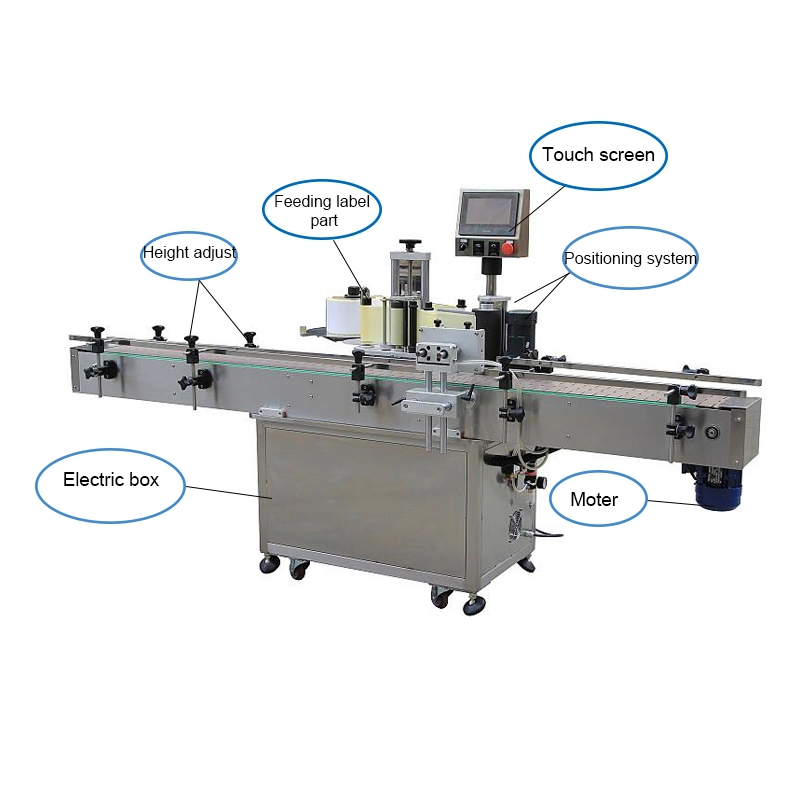

    Product Details

    • The machine is made of 304 stainless steel, which is corrosion-resistant and meets GMP production requirements
    • Touch screen: Human-machine interface, through the touch screen to set the parameters of the whole machine, easy and smart to operate
    • Can use this rocking bar to adjust the machine to suitable for different kinds of bottle height.
    • Optional data coding device: which can help you shorten the production process. It makes labeling and printing at one machine

    Technical Parameters:

    ModelMT-130D
    The standard systemStep Motor
    Capacity20-130 carton/min
    Operating DirectionLeft or right
    Label speed≤35 m/min
    Tags volume inner diameter76 mm
    Tags volume outer diameter350 mm (max)
    Label SpecificationsGlassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand)
    Labeling accuracy±1.0mm (subject to the roughness of the plane)
    Weight200KGS
    Total motor power800W
    Power supplyAC220V 50/60HZ Single phase
    Size appearance (mm)2200 (L) 1800 (W) 1500(H)
