Mechanical Design:
1. Using side label method, add Press carton structure, ensure the
stability of carton.
2. When the label touch the carton, the brush firm the front label,
make sure the label is smooth and firm.
3. Conveyor speed can be adjust to match up the send label speed,
ensure label no wrinkle.
4. The inverter control the Motor, make sure the conveyor
speed,press carton speed and send label 5. speed synchronous
operation, label surface is smooth and label position is accurate.
6. The durable engine and parts are solid and durable, adopt
standardized modular design completely interchangeable, 24-hour
operation ensure the security and stability.
7. The whole machine use S304 stainless steel and anodized senior
aluminum alloy, Never rust and with high corrosion resist
Function and characteristics of granule packing machine
1)Applicable to a wide range of cards, paper sheets of PE bags, tin
foil bags, tea bags and other items labeling, suitable for unfolded
carton labeling.
2) Intelligent control, automatic photoelectric tracking, with no
object and no sticker, no standard automatic correction and
automatic label detection function, prevent leakage and label
waste.
3) Sticker fast and steady, adopt the top roller to caress the
workpiece, transport smoothly.
4)High stability, The supporting equipment runs 7 × 24 hour,Adopts
famous brand configuration.
Machine material
Strong and durable, adopt three bar adjusting mechanism, make full
use of the stability of triangle, the whole machine is solid and
durable. It is made of full ss304 stainless steel,which is in line
with the requirements of GMP production.

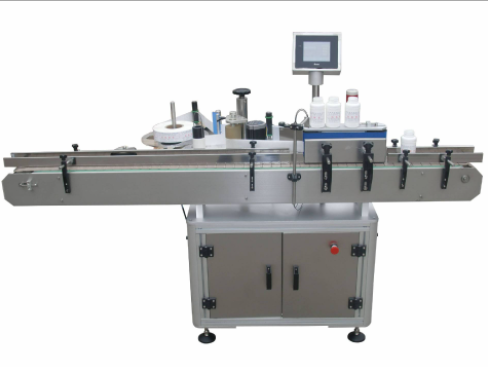

Roller Label
--Label: sticker label, adhesive film, electronic supervision code,
bar code and so on.
--Product: a product that is required to attach a label or a film
to a circumferential surface
--Industry : Widely used in food , medicine , cosmetics , daily ,
electronic , hardware , plastic and other industries
Ribbon Printer
It can be equipped with ribbon printer machine, which can print
production date and batch number on line, reduce the packaging
process of bottle and improve production efficiency.
Applicaiton and the Bag Feeder
Type:Pouch,bag,paper,card,etc.
Material:Plastic,paper.
Label: Preprinted label or transparent label
Technical Parameters:
| Model | MT-130D |
| The standard system | Servo Motor |
| Capacity | 20-130 carton/min |
| Operating Direction | Left or right |
| Label speed | ≤35 m/min |
| Tags volume inner diameter | 76 mm |
| Tags volume outer diameter | 350 mm (max) |
| Label Specifications | Glassine backing Paper , opaque label (The application of carton
Can be customized according to customer’s demand) |
| Labeling accuracy | ±1.0mm (subject to the roughness of the plane) |
| Weight | 200KGS |
| Total motor power | 800W |
| Power supply | AC220V 50/60HZ Single phase |
| Size appearance (mm) | 2200 (L) 1800 (W) 1500(H) |
