introduction
Our shrink sleeve labeling machines series use the newest shrink
technology with large control touch screen.The humanize operation,
the mainframe can be easy adjusted up and down with
automatically.The labelingmachine has been accurately designed,
even use this machine with high speed for a long time, machine
runningis still very stable and smoothly.We have many models with
all kind of speed selection and is suitable for wide range, it can
be modifed according to the package’s shape. We can always meet
your all kind of requirement no matter it is for cap orbottle.The
machine is suitable for pharmaceutical, food industries,
health-food, medicine, juice, milk, drink.We are looking forward to
hear from you.
Application
The machine we can do customizable sleeve labeling for bottle, cap
, cup and so on.
The machine is suitable for pharmaceutical,food
industries,health-food ,medicine,juice,milk, drink,etc.
Remark:
1. Transparent plastic label need match special transparency sensor
2. Need date code shall match printer
Main Configuration:
1.Frame: SUS + aluminum alloy
2. PLC + 7 inch touch screen: Siemens
3. Photo electronic sensor: German LEUZ
4. Relay and air switch: French Schneider
5. Converter: French Schneider
6. Conveyor motor: 750W China brand AC motor
7. Labeling driving motor: 750W French Schneider servo motor
8. Bottle dividing motor: 40W China brand AC motor
9. Bottle turning motor: 90W China brand AC motor
10. Exposed parts: SUS, aluminum alloy, 45 # steel, plastic

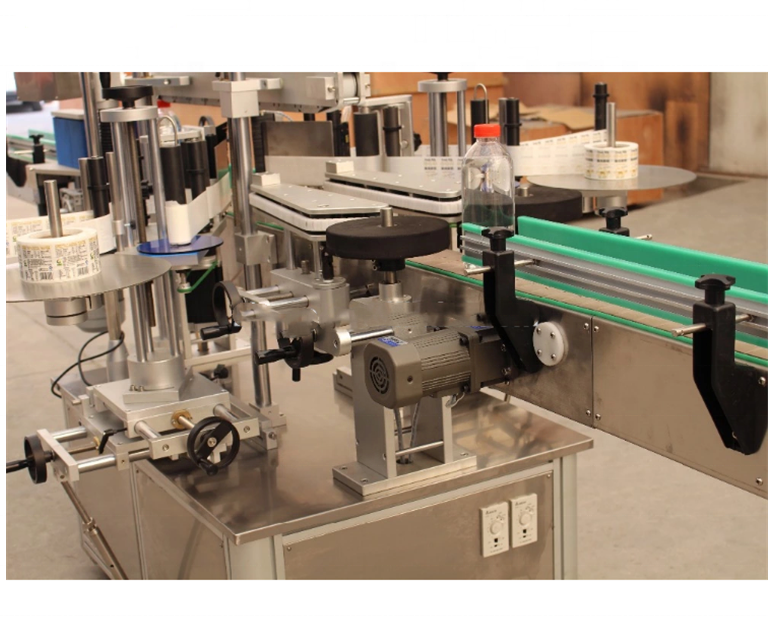

Detail
Automatic sleeve labeling machine id custom built to meet the
exacting demands of manufacturers and suppliers.it can be used
stand alone orintegrated in-line and matching filling quipment
speeds.
The newly designed cutter stepper motor which speed ishigh,action
is exact,the cut is in order and the shrinking is beautiful. This
design cooperate with the label synchronized lacation structure
enable the precisiion of cut location within 1mm.
Unit cutter head plane design in china which apply to the container
of 30mm-130mm. You never need to change or debug it .it also has
unique light touch human-machine screen ,that means ,auto search
original location as well as safety and convenience which is ahead
of other congener products.
Double shrinking label feedplane ,reasonable height which is
convienence to labeling .micro-computer auto figure which avoid
enactment and adjustment . you only need to pressit lightly ,the
label will detect and locate automatically.the change of label is
quick and convenience ,besides , the cut place is absolutely exact.
Specifications:
| Driving Mode | Servo motor |
| Production | 30-150 bottle/min |
| Labeling Speed | ≤40 m/min |
| Operating direction | Left or Right |
| Labeling Accuracy | ±1.0 mm (subject to the roughness of the plane) |
| Label Specifications | Glassine Paper, opaque label |
| The application of bottle | Outer diameter 40-100mm; Height 35-180mm |
| The application of label | Height 20-140mm; Length 23-280mm |
| The inner diameter of label | Min. volume 76mm |
| The outer diameter of label volume | 350mm (max.) |
| The power of motor | 550W |
| Voltage | AC220V 50/60HZ Single phase(Can customized according to Client
country’s voltage) |
| Weight | 170 kg |
| Size appearance | 1800×700×1270mm |
