Description:
1. Using side label method, add Press carton structure, ensure the
stability of carton.
2. When the label touch the carton, the brush firm the front label;
make sure the label is smooth and firm.
3. Conveyor speed can be adjusted to match up the send label speed,
ensure label no wrinkle.
4. The inverter control the Motor, make sure the conveyor
speed,press carton speed and send label speed synchronous
operation, label surface is smooth and label position is accurate.
5. The durable engine and parts are solid and durable, adopt
standardized modular design completely interchangeable, 24-hour
operation ensure the security and stability.
6. The whole machine use S304 stainless steel and anodized senior
aluminum alloy, Never rust and with high corrosion resistance.
7. Using touch-screen control operating system, simple and
efficient;
8. Upgrade new standard station design, the angle can adjust
depends on different carton size;
9. Top press device ensure stability of carton when labeling,
particularly applicable for light and small cartons;
10. Combine the characteristic of light label objects, adopt Belt
conveyor with High stability;
11. Adopt mature technology PLC control system, operation is stable
and high-speed.
Applications:
It is suitable for labeling round bottles such as PET bottles,
plastic bottles, glass bottles and metal bottles. widely used in
cosmetic, beverages, food, medicine and other industries, greatly
improving productivity and labeling quality.
Specifications:
| The standard system | Servo Motor |
| Capacity | 20-130 carton/min |
| Operating Direction | Left or right |
| Label speed | ≤35 m/min |
| Tags volume inner diameter | 76 mm |
| Tags volume outer diameter | 350 mm (max) |
| Label Specifications | Glassine backing Paper , opaque label (The application of carton
Can be customized according to customer’s demand) |
| Labeling accuracy | ±1.0mm (subject to the roughness of the plane) |
| Weight | 180KGS |
| Total motor power | 800W |
| Power supply | AC220V 50/60HZ Single phase |
| Size appearance (mm) | 2200 (L) 1400 (W) 1500(H) |
Product Feature
1.Bottle separator
The bottle separator can control the bottle conveying speed by
adjusting the separator speed, and the operation is simple and
convenient.
2.Senior electric eye control system
Automatic imported fiber amplifier, automatic induction product
labeling, simple and intelligent operation, ensuring the accuracy
of labeling
3.Coneveyor belt
The conveyor belt is made of plastic, and the width of the conveyor
belt can be adjusted according to the diameter of the bottle
(preferably less than 120mm in diameter), and the width can be also
customized if it exceeds the standard range.
4.Labeling belt
Labeling quality, using standard of spring cover belt with long
service life, labeling smooth, flat labeling, no wrinkles, no
bubbles, improve packaging quality.
5.coding machine
This machine can be euipped with a date coder, wihch can help you
shorten the production process.It makes labeling and printing at
one machine (optional).
6.Accessories
All the accessories will be packaged with the machine, which are
used to install the machine and some parts are aged for replacement
after long-term use.

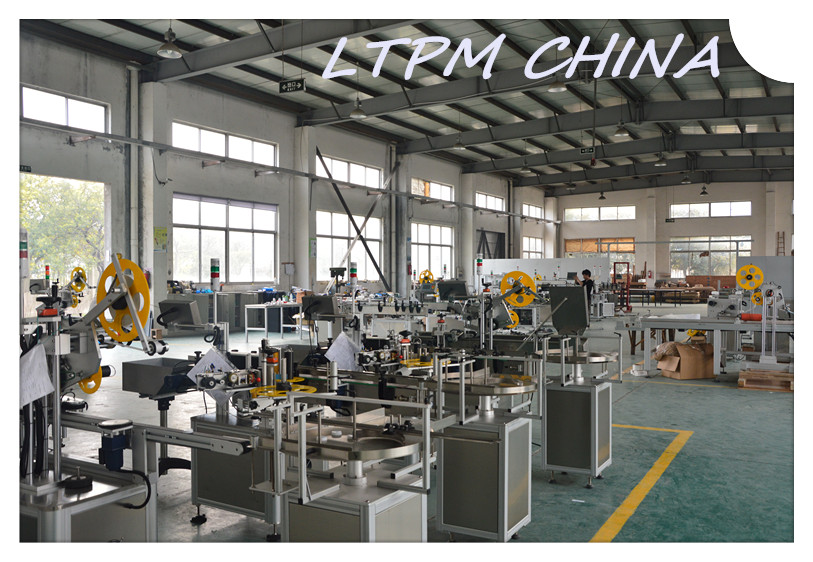

Our Work Shop:
