    380V Automatic Labelling Machine Bottle 780mm 200 Pcs Min

    Ask Lasest Price
    Brand Name : LTPM China
    Model Number : SMT-Series
    Certification : CE, GMP
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 25sets/month
    Delivery Time : 25days
    • Product Details
    • Company Profile

    380V Automatic Labelling Machine Bottle 780mm 200 Pcs Min

    Product Description

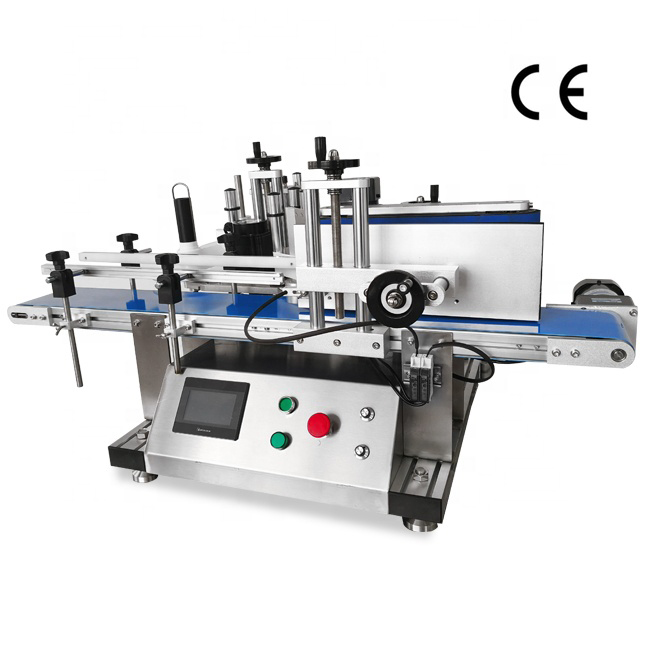

    This round bottle labeling machine can be used for double side labeling.The desktop type labeling machine can save working space,but it can work automatically and accurately after you adjust and test working data.It is widely used to label round bottles like wine bottles,toner bottles,food cans etc.


    Working principle

    The sensor detects the passing bottles and send a sighal back to the control system .at the appropriate position ,the system controls the label to be sent out and attached to the suitable position .the product pass through the labeling device and the label is attached to bottles well.


    Detail

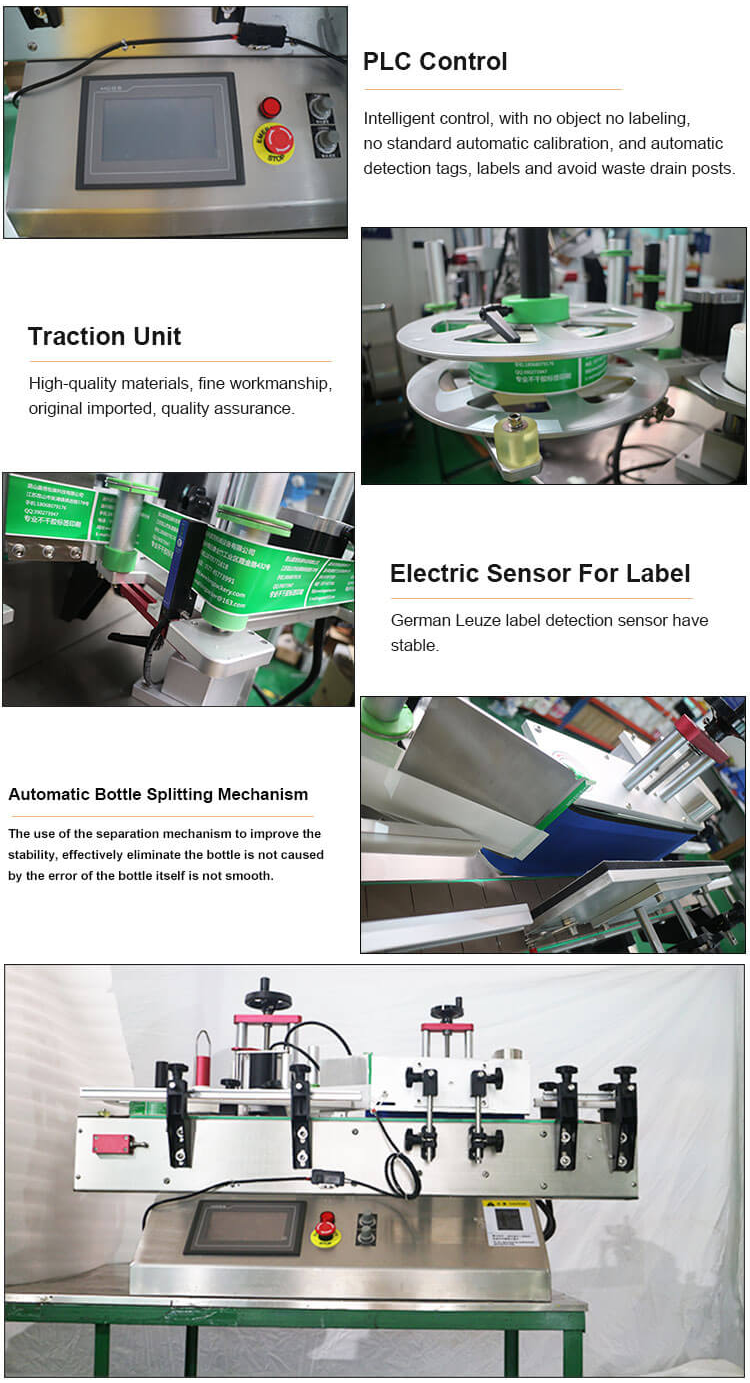

    1. Intelligent operation panel can help you control the machine easily.It can be set into English version,the working data like counting functions,delay time can be controlled by this panel.Beside two black rotary knobs can be used to control working speed.

    2. The feeding inlet can be adjusted according to bottle diameter.This machine is suitable forφ≤100mm bottles.The working speed of

    3. the conveyor can be adjusted as operators' need.This help to improve working efficiency.

    4. The bottle will be detected by this sensor once they pass by the sensor.Reduce labeling error and ensure the labeling working efficiency.

    5. With label sensor and adjusting components,these ensure the sensitivity and accuracy,prevent from missing or wasting label stickers,improve labeling quality.

    6. These three labeling wheels make bottles rotating and then finish labeling,ensure that there is no bubbles under labels .Ensure

    7. the labeling effect.This is suitable for double side labeling.The upgrade variable -speed motor makes the machine work stably and improve labeling speed,ensures the labeling accuracy at the same time.


    Technical Parameters

    Model
    Fully automatic desktop round bottle labeling machine
    Speed
    20-200pcs/min
    Diameter
    30-120mm or customize
    Height
    15-200mm
    Length
    25-300mm
    Accuracy
    ±1mm
    Power
    1500W
    Voltage
    220V/110V 50/60Hz
    Weight
    170kg

    Application


    Machine Details


    1> ightweight & Humanized Design: Small enough to sit on a desk comparing to the normal automatic labelling machine which is giant and uneasy to move around.


    2> Automatic Photoelectric Sensor: Smart controll for labelling and bottle decteting, it has automatic label calibration and detection to avoid any waste of labels.


    3> Automatic Bottle Feeding: Seperates bottles automatically to improve stablity by eliminating the small size difference between each bottles.


    4> Stainless Steel Body: Elegant appearance, non-deformation, high quality 304SS material that meets GMP standard, providing the best using experience.


    5> Best Imported Component: Carefully picking the best component to build the machine, ensures high quality and long service life.


    6> Automatic Batch Process: Easy to operate and maintian, lowering labor cost and improving efficiency.


    7> Multiple Functions: Automatic counting and stopping to save electricity, automatic save settings, etc.


    8> Touch Screen Controll :Easy to controll and switch different settings, it features a user interface with guides.


    9> High Labelling Stablity :Labelling is straight and flat, no bubbles or creases.
