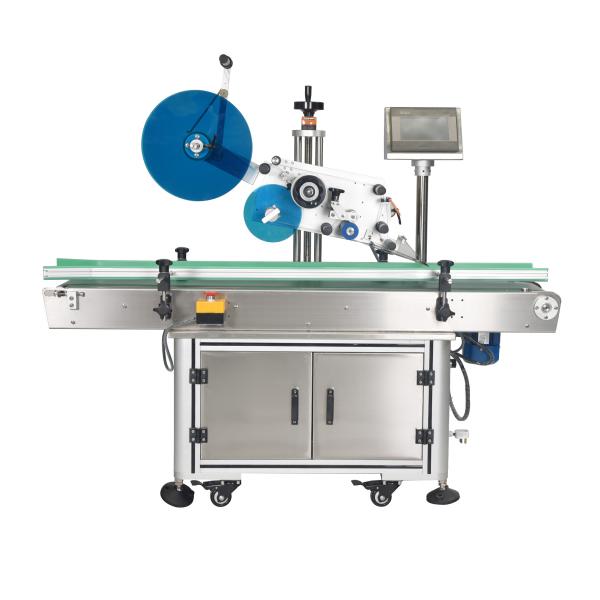

Top Flat Surface Labeling Machine For Box/Carton/Paper Sheet,
Bag/Pouch, Bottle/Jar/Can/Tin etc.
Ⅰ. Application:
Flat surface plane labeling machine can work for all kinds of
objects with plane, flat surface, side surface or large curvature
surface such as bags, paper, pouch, card, books, boxes, jar, cans,
tray etc.Widely used in food, medicine, daily chemical, electronic,
metal, plastics and other industries. It has optional date coding
device, realize date coding on stickers.
Ⅱ. Features You Can Not Ignor:
1. It can label for any products with flat surface. More flexible
arrangement for manufacturing schedule.
2. The labeling head convenient to adjust, the labeling speed is
automatically synchronous with the conveyor belt speed to ensure
precise labeling.

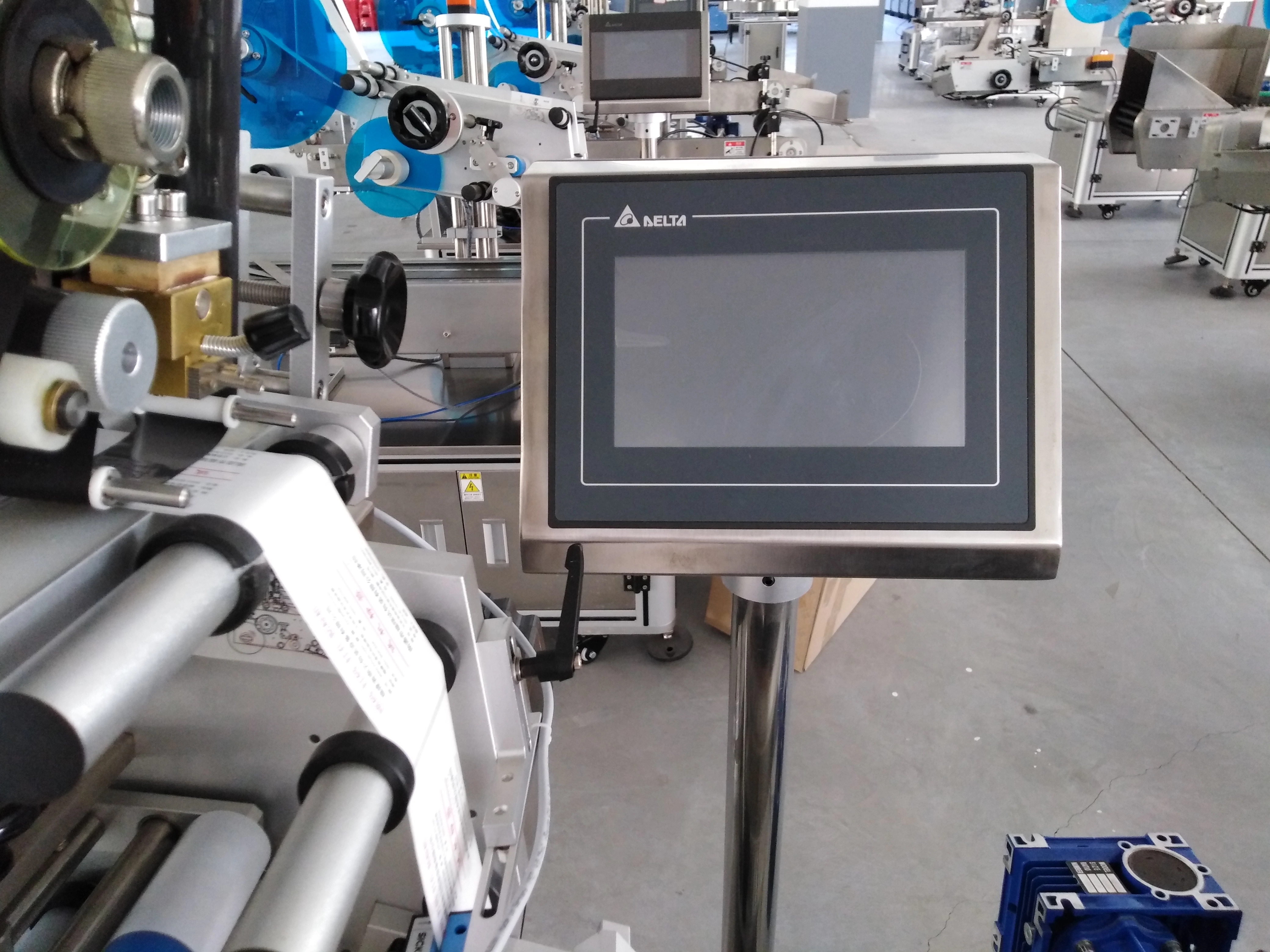

3. The speed of conveyor line, the speed of pressure belt and the
speed of label output can be set and changed by the PLC human
interface.
4. Use famous brand PLC, stepping or servo motor, driver, sensor,
etc, good quality components' configuration.
Ⅲ. Other Corollary Equipment Introduction:
1. Different labeling solutions for flat surface, round labeling,
taper wraping labeling can be supplied. One product can accomplish
one sticker, two stickers or more stickers labeling, also can one
sticker to finish one side, two sides, three sides or more sides
labeling.
2. We can supply you the optional rotary table bottle unscrambler
machine, which can be connected directly before the labeling
machine, the operators can put the bottles on the rotary table,
then the rotary table will send the bottles to the labeling machine
to the labeling machine automatically.
3. It also can match with weight checker, metal detector, bottle
filling machine, capping machine, can seaming machine, cover
impressing machine, inkjet /laser / TTO printer etc.
Remark: The flat top labeling machine also can match with paging system,
then work for all kinds of objects with plane, flat surface such as
card, bags, books, unshaped boxes, cartons, paper,pouch and other
packaging bag etc. Adopts automatically separate stacks of
packaging bags and convey single piece onto the conveyor belt so as
to facilitate labeling machine to stick each sticker onto objects
and thus reduce the trifles of manual paging to improve labeling
efficiency. Labeling samples as below:
