Product Description
This shrink sleeve labelling machine can used for bottle
neck&body in the same time.

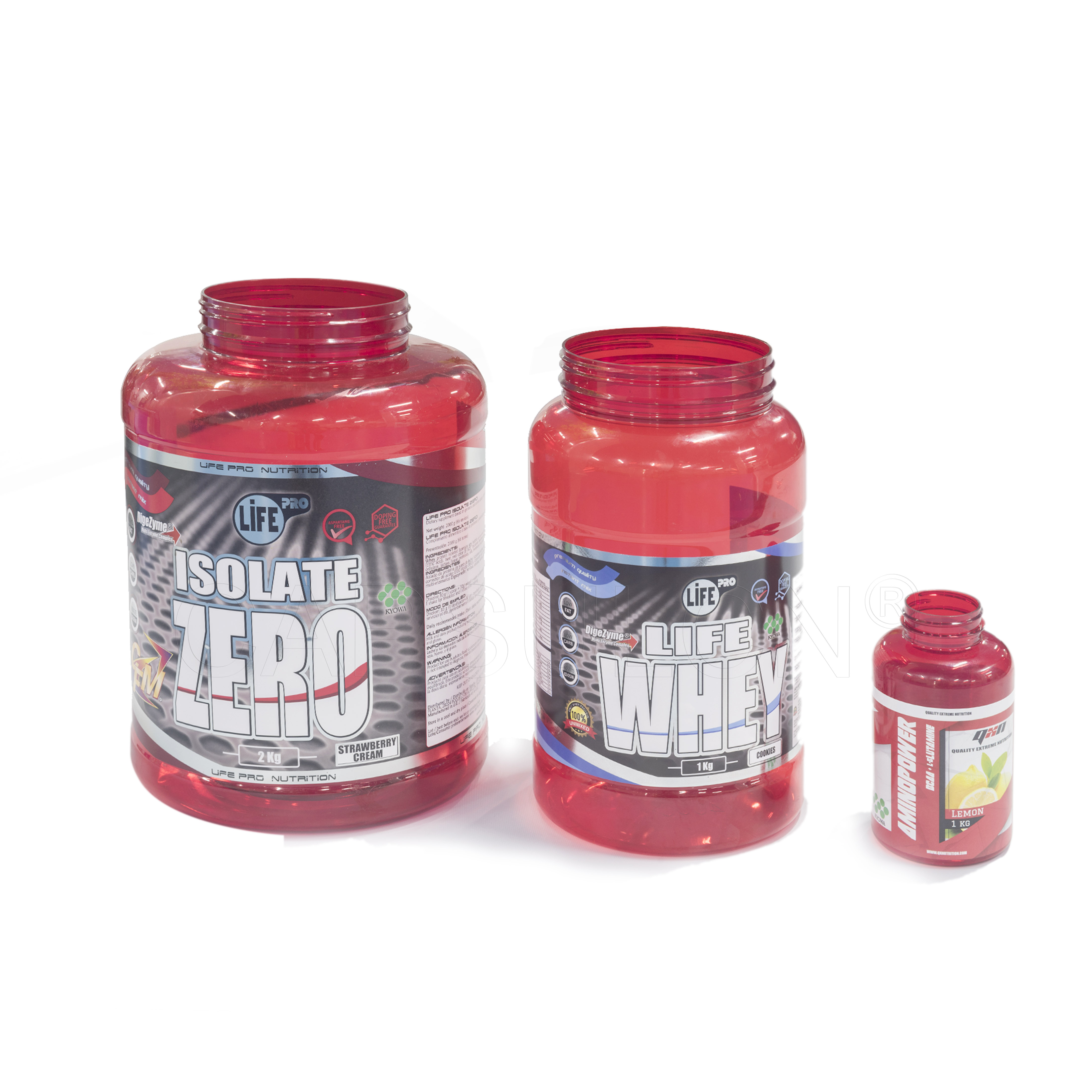

Various kind of bottle types, for example : round bottle, square
bottle, flat bottle, curved bottle and cup-shaped, etc.
- Electrical Appliance Configuration Specification
It adopts PLC programmable controller, imported servo motor, servo
driver, frequency converter and transducer,besides, it adopts the
positioning module to ensure casting label precise, rapid and
stable
Applications:
1.This machine is used for using the Taiwan touching type of PLC
control or knob control.
It is made up of photoelectricity equipment of Japan OMRON.
Synchronization electrical,timing electrical, conveyer belt. Import
strap etc correlative part.
2.The design of mainframe part absorbed label transmit of import
machine and solved the unsteady ingredient of homemade common
label.
3.The machine is suitable for various specifications of bottles.
Its operation is easy and it can be finished in a short time.
4.The quick printer adopts the motor drive, gas drive. The words in
the ribbon are clear and clean.
5.The whole machine is designed to meet GMP standard.
6.This machine is suitable for processing the big round label of
medicine, chemical, food, commodity etc.
Specifications:
| Production | 50-130bottle/min |
| Label Specifications | Glassine paper, adhesive sticker opaque label |
| Labeling accuracy | ±1mm (subject to the roughness of the plane) |
| The application of label | Object customizing |
| The application of label | Height 20-70mm Length 25-120mm |
| The inner diameter of label | Roll 76mm |
| The outer diameter of label | Roll 350mm |
| Driving mode | Servo motor |
| Power of motor | 500w |
| Voltage | AC 220V 50/60Hz Single phase |
| Overall dimension | 2200×1000×1800mm |
Advantages
* Super large touch screen, easy to operate;
* Imported Microcomputer control system;
* Servo motor is adopted, and the labeling precision is enhanced
when the speed is increased. The machine performance is more
stable;
* More than 100 groups of labeling parameter memories can realize
fast sample changing;
* The whole machine is made of high class stainless steel and
aluminum alloy using anodizing treatment, it will never rust, which
conforms to GMP requirements.
