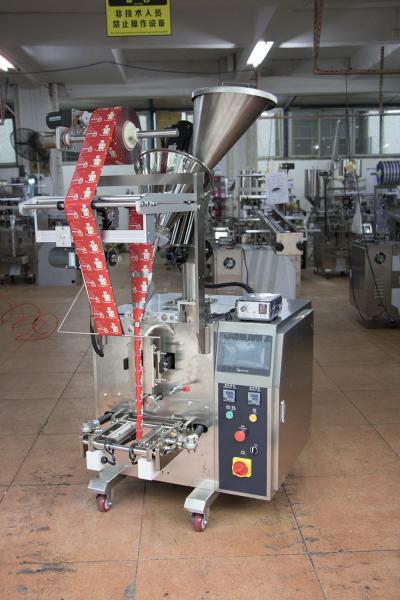

Pillow 150mm Small Tea Packing Machine 50g Automatic Sachet Filling Machine

LeadTop Pharmaceutical Machinery Co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Pillow 150mm Small Tea Packing Machine 50g Automatic Sachet Filling Machine from wholesalers

    Buy cheap Pillow 150mm Small Tea Packing Machine 50g Automatic Sachet Filling Machine from wholesalers
    • Buy cheap Pillow 150mm Small Tea Packing Machine 50g Automatic Sachet Filling Machine from wholesalers
    • Buy cheap Pillow 150mm Small Tea Packing Machine 50g Automatic Sachet Filling Machine from wholesalers
    • Buy cheap Pillow 150mm Small Tea Packing Machine 50g Automatic Sachet Filling Machine from wholesalers
    • Buy cheap Pillow 150mm Small Tea Packing Machine 50g Automatic Sachet Filling Machine from wholesalers

    Pillow 150mm Small Tea Packing Machine 50g Automatic Sachet Filling Machine

    Ask Lasest Price
    Brand Name : LTPM CHINA
    Model Number : DXD-Series
    Certification : CE, GMP, SGS, BV
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, MoneyGram
    Supply Ability : 45 sets/month
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    Pillow 150mm Small Tea Packing Machine 50g Automatic Sachet Filling Machine


    POWDER PACKAGING MACHINE
    Apply for the packaging of Herbal powder, Chemical powder,Nutrition powder,food powder such as milk powder,coffee powder,protein powder,cocoa powder,spices powder.




    Application


    It's suitable for automatic packing of various kinds of grain such as candy, confection, chocolate bean, peanuts, bean, tea, spice, rice, snack, seeds, small toys etc


    Technical Feature


    1. Adopting PLC from Japan or Germany to make machine run stable. Touch screen from Tai Wan to make operation easy.

    2. Sophisticated design on electronic and pneumatic control system makes the machine with high level of precision, reliability and stability.

    3. Step motor control the film moving smoothly, easy and accurate to set the bag length.

    4. The machine completes the whole procedure of filling, bagging, date printing, charging (exhausting) automatically.

    5. Adopting intellectual temperature controller,the temperature is controlled to ensure neat sealing.

    6. Machine makes pillow bag, Punching bag, linked bag.


    Technical Parameters

    Items / Model
    DXD-350K
    DXD-500K
    DXD-900K
    Pouch length
    50-250mm(L) (adjustable)
    50~160mm
    50~120mm( Pouch length can change)
    Pouch width
    50-85mm(W)
    50~105mm
    50~105mm
    Packing speed
    30-50times/min depend on pouch size and material
    20~50times/nim(depend on pouch size and material)
    80times/nim(depend on pouch size & material)
    Measuring range
    1-50ml
    1~80ml
    1~80ml
    Applicable film
    PET/AL/PE PET/PE NY/AL/PE NY/PE
    PET/AL/PE PET/PE NY/AL/PE NY/PE
    PET/AL/PE PET/PE NY/AL/PE NY/PE
    Max width of film roll
    350mm
    500mm
    900mm
    Max film roll diameter
    300mm
    420mm
    Φ300mm
    Film roll core diameter
    75mm
    75mm
    Φ75mm
    Power voltage
    220V/ 50HZ(do as customer’s request)
    380V50Hz 3P 4W
    380V 50Hz (do as customer's request)
    Power
    5.5kw
    12 Kw
    12 Kw
    Gross Weight
    650kg
    1200kg
    1200kg
    Package size
    (L)1400mm×(W)1000mm×(H)1700mm
    1680x1280x2050mm
    1500x1540x2200mm(L x W x H)

    Working process

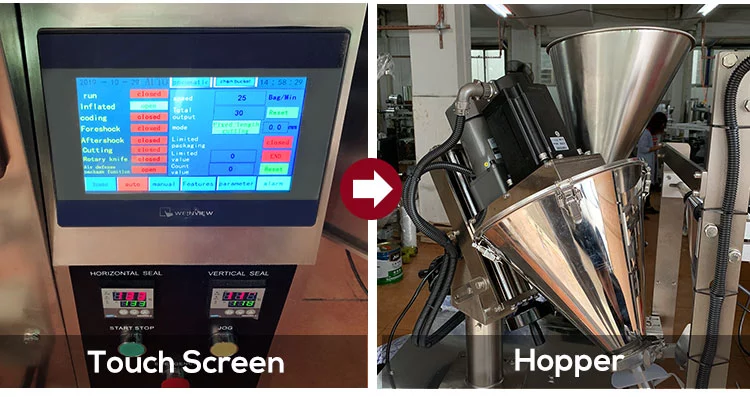

    1. Turn on the machine waiting the temperature to setting numerical vaule, and set the parameter on the touch screen.

    2.Put the material to the hopper.

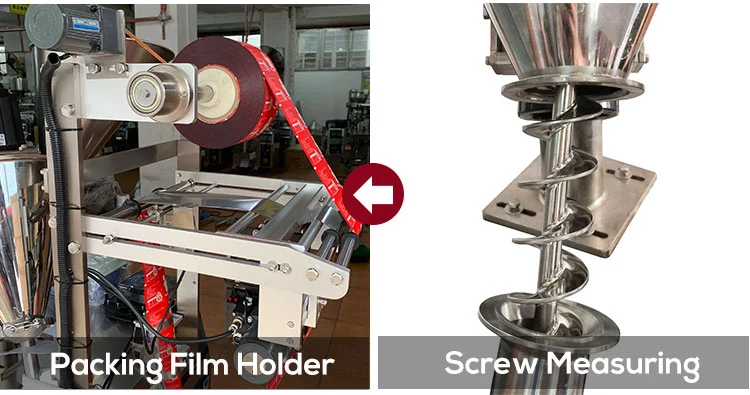

    3.Set the Packaging film to packing machine and test the packing machine working.

    4.Automatic auger measuring material and auto bagging

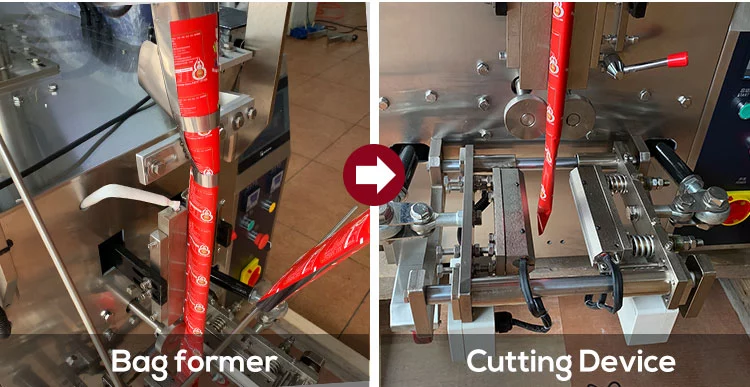

    5.Bag former auto bag making, the bag automatic sealing.
    6.After bag sealing,finished product will auto cutting by cutting device, finished product put out.
