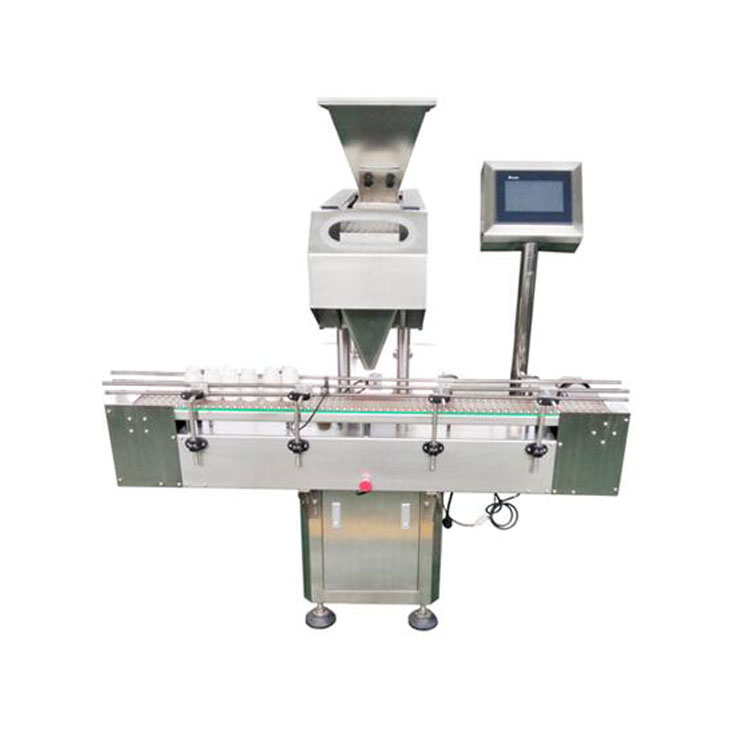

Full Automatic Capsule/Tablet Counter Machine performance:
1. High efficiency and low cost.
2. Fully automatic control and high hygienic design.
3. Excellent and stable product quality.
4. Saving work space and manpower for users.
5. Easy maintenance and high safety standard.
This machine is widely used in pharmaceutical, foods &chemistry
industry etc, It can count/fill automatically sphericity, pills
&soft/hard capsules/tables or slicing articles.
Main Features
1.High accuracy. The accuracy rate of several canned grains is more
than 99.5, which is higher than the industry standard.
2.The flip-flop subassembly mechanism obtains the national patent,
does not damage the material when opening and closing.
3.Good stability. Using the electronic counting technology of high
dust resistance, it can still operate normally in high dust
environment.
4.Strong compatibility, wide scope of application. All kinds of
tablets, capsules (transparent or opaque hard capsules, soft
capsules, pills, etc.) can be counted and filled.
5. Multi stage vibration design. Large size, irregular, high
viscosity materials can be effectively separated.
6. High intelligence. With the bottle, materials and other online
fault monitoring function, and automatic alarm.
7. High integration. Can be based on the size of the customer site,
output, front and back of the process line control, improve
efficiency, save labor.
8.Easy to use. Small area, easy to remove and clear without any
tools.
9.low running cost .High cost-performance products, low cost of use
and maintenance, with one year's worn parts.
10.For easy clogging and special feeding varieties, it can be
customized according to actual needs.(optional)
11.The quality is reliable. The machine adopts stainless steel 304,
material contact part uses stainless steel 316 material.
12.Equipped with dust collection box, centralized dust collection,
reduce pollution.
Product detail
1.This feeding structure can make the capsules in order, helping to
feed capsules faster. It can be customized according to capsules'
size.
2.It is designed for detecting bottles. When they pass by, the
fixing component will stretch out to stop bottle from moving, and
the machine will begin to fill it. Ensure fling accuracy.
3.The width of the feed inlet can be adjusted according to the size
of the bottles. The diameter of the bottles should be within 115mm.
4.It is used to adjust the flow of the capsules, making the filling
speed adjustable.
5.When the bottles pass by, the same number of capsules will be
filled into the bottles automatically. Improve work efficiency.
Application
Main Technical Data
| Model | LTEC-12 | LTEC-16 | LTEC-24 | LTEC-32 |
| Slide wheel | 12 Channels | 16 Channels | 24 Channels | 32 Channels |
| Size of Object | Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule |
| Size of bottles | 20-300ml |
| The diameter for bottles mouth | 20-80mm |
| Output | 4,000pcs/min | 6,000pcs/min | 8,000pcs/min | 10,000pcs/min |
| Capacity | 40bottles/min | 60bottles/min | 80bottle/min | 100bottles/min |
| Power | 0.9KW | 0.9KW | 1.35KW | 1.35KW |
| Power supply | 220V 60HZ |
| Air pressure | 6kgs/c |
| Overall dimensions(mm) | 1700×1700×1900 | 2000×1700×1900 | 2800×1700×1900 | 3200×1700×1900 |
