Automatic Electronic Counting Machine is mainly used for bottle
packing of tablets (including abnormal tablets), capsules, gels
(including transparent gels and opaque gels) pills and similar
solid granules. Highly accurate counting.

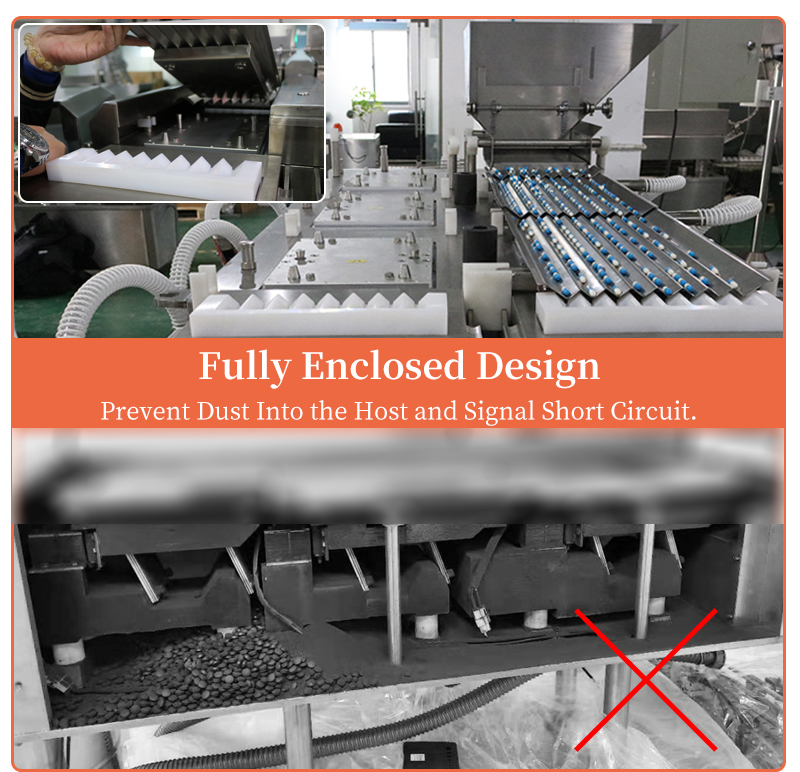

Using our own original high anti-dust sensor technology, the
machine works accurately with good stability in heavy dust
conditions.
Feeding evenly with quiver, special patent filling part protects
materials from harm.
No bottle under the filling hopper, no materiel in the supply
hopper, or the photoelectric sensor box is abnormal, the machine
makes alarm.
The special filling hopper avoids the materials jam, small mouth
bottle can quickly bottling. (Available as an option)
You can choose the advanced device of getting rid of powder and the
device of getting rid of static electricity. (Available as an
option)
Sound and light alarm. (Available as an option)
Detection options include: lack of products in the supply hopper,
damaged tablet, weighing systems online. (Available as an option)
Fully compliant to GMP regulations.
Main performance and structure features:
1.Grain counting completely correct .
2. With precounting function, it can continue to count grain at the
same time of filling,save time.

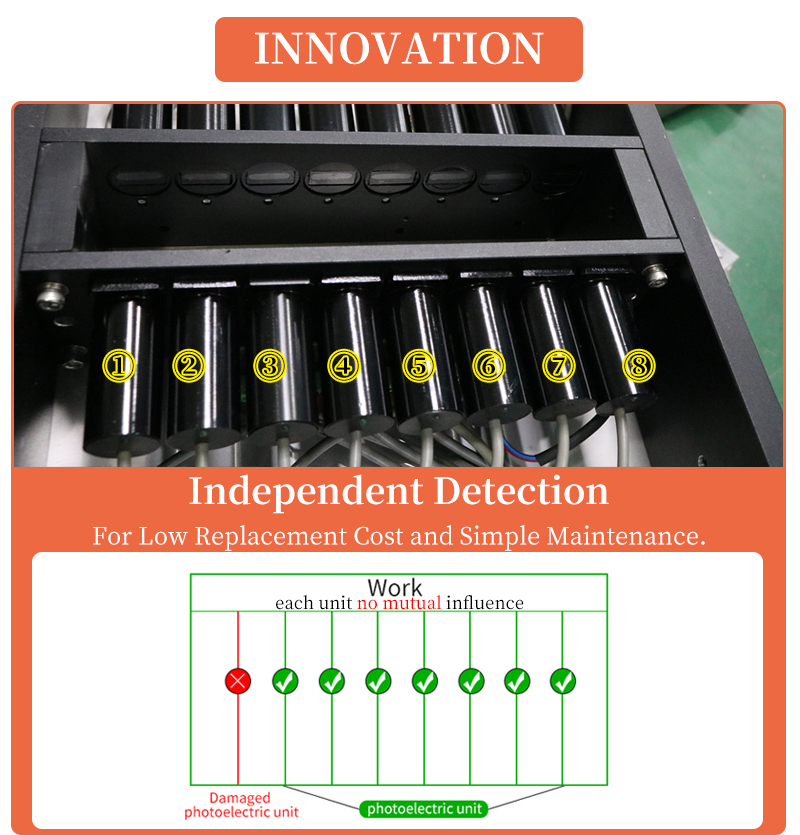

3.Special design of the 3 D counting electric eye,distinguish
overlap medicine granule and the fragment.
4.The 3 level vibrator is made from German Binder original imports,
vibration faster , stable performance
5.Easy to operate, touching screen can store 50 different drug
parameters, when replacing the drug, the drug directly call the
corresponding parameters.
6.The machine all adopt the stainless material, parts adopts 316
material machine main device for the overseas well-known brand .
Details:
1.PLC touch screen control
Siemens touch screen can set parrameters as required

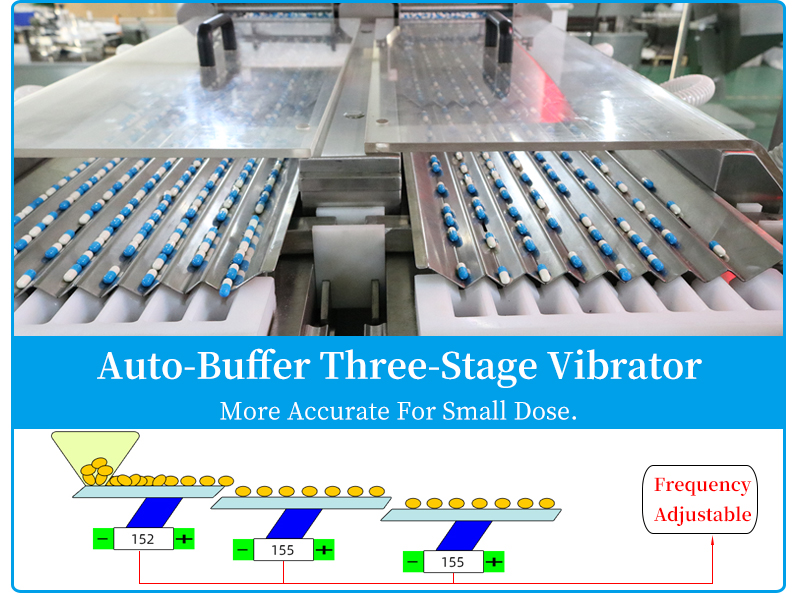

2.Multi-stage vibration channel accurate counting
Different shapes and sizes of materials count through the channel
vibration without changing any molds and components.
3.Lifting body design
It can adjust the appropriate height according to the actual
situation to adapt to different heights of the bottle.
4.Adjustable filling device
It can adjust the filling speed according to the customer
requirements,up to 15%.
Application
This Machine Suitable For Scientific Research Institutions,
Hospitals, Small And Medium-Sized Pharmaceutical Factories, Health
Products Factory Production Packaging
Main Technical Data
| Model | LTEC-12 | LTEC-16 | LTEC-24 | LTEC-32 |
| Slide wheel | 12 Channels | 16 Channels | 24 Channels | 32 Channels |
| Size of Object | Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule |
| Size of bottles | 20-300ml |
| The diameter for bottles mouth | 20-80mm |
| Output | 4,000pcs/min | 6,000pcs/min | 8,000pcs/min | 10,000pcs/min |
| Capacity | 40bottles/min | 60bottles/min | 80bottle/min | 100bottles/min |
| Power | 0.9KW | 0.9KW | 1.35KW | 1.35KW |
| Power supply | 220V 60HZ |
| Air pressure | 6kgs/c |
| Overall dimensions(mm) | 1700×1700×1900 | 2000×1700×1900 | 2800×1700×1900 | 3200×1700×1900 |
