Product Descrip

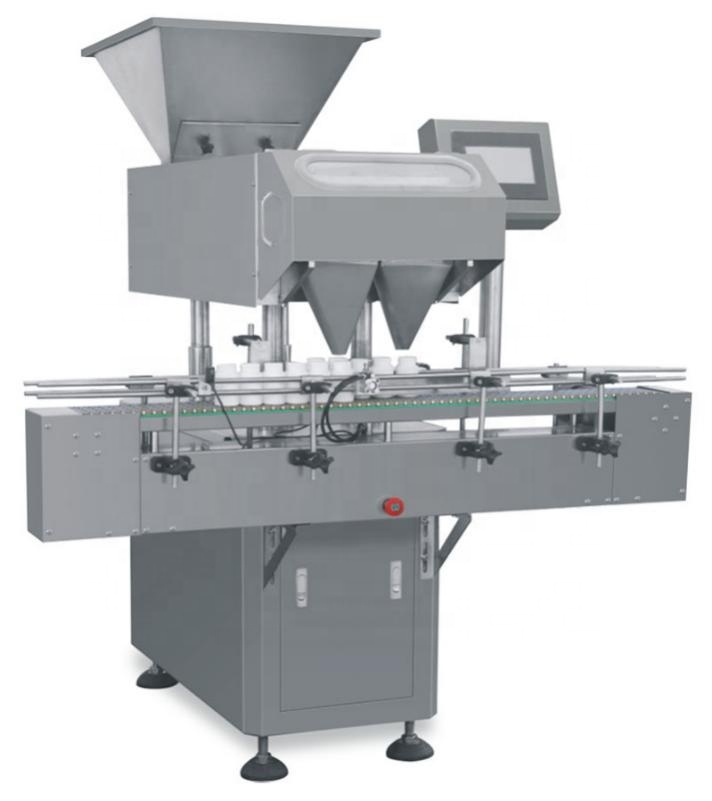

This series can pack all kinds of tablets and capsules (transparent
or opaque hard capsules, soft capsules, pills, etc.) in the range
of 3-20 mm. Meet the requirements of GMP, suitable for tablet or
capsule counting in scientific research institutions, hospitals,
small and medium-sized pharmaceutical factories, health products
factory.
Technical specifications
1: Times to change the mold: 5---8 minutes
2, Product capacity : 200000 pcs/hour
3, Capsule size : 000#,00L#,00#,0#,1#,2#,3#,4#, 5#
4 , Max bottle diameter 130mm
5, Power: 220V, 50Hz, 1 Phase
6, Total Power 1.2kw
7, Air pressure 0.03m3/min 0.7Mpa
8, Vacuum Pump: Absorb Rate : 40m3/h
9, Overall Size :(L×W×H): 1200×500×1400 mm
10, Packing Size:(L×W×H): 1280×600×1150m m
11, Net Weight : 90kg
12, Gross Wight: 140kg
Features
- Avoid the materials jam
Hopper mouth of the special structure, to prevent the materials
jam, small mouth bottle can quickly bottling.
- Protect materials from harm
Feeding and outputting all well-distributed and stable. Special
patent separate bottle structure, protect materials from harm.
Ensure accurate bottling.
- Detection function
Split charging abnormal filling bottles and eliminate a certain
size automatically. Self-diagnose errors and stop working to make
alarm at errors.
- Anti-dust
Using our own original high anti-dust sensor technology, accurately
with good stability in heavy dust conditions.
- Easy to use
Adopt intelligent design. Various operating parameters are set up
according to the need, which can store 10 sets of parameters, for
easy to transfer.
- Convenient to maintain
Operation personnel only need a simple training to operate, remove,
clean, replacement parts simple and convenient, don’t need tools.
- Seal dust
Equipped with dust abatement box to reduce dust pollution
Our electronic counting machine is suitable for tablets, capsules,
American health products, cod liver oil, soft capsules
