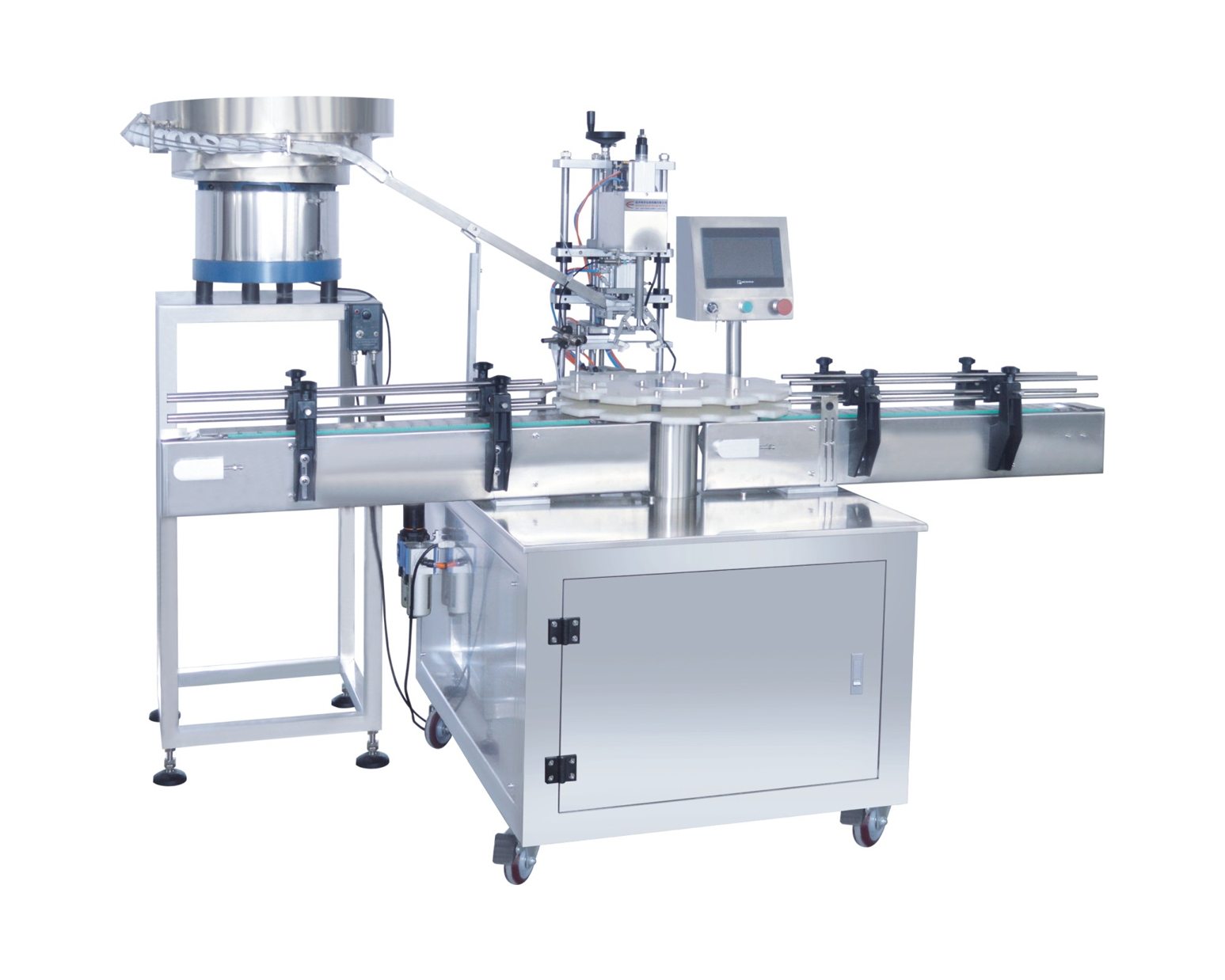

    Automatic Fruit Juice And Mineral Water Filling And Capping Production Line Product Feature

    Ask Lasest Price
    Brand Name : LEADTOP
    Model Number : LTXG-2/1
    Certification : CE Certificate
    Price : discuss personally
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 25 days/month
    Delivery Time : 25days
    • Product Details
    • Company Profile

    Automatic Fruit Juice And Mineral Water Filling And Capping Production Line Product Feature

    Product Feature

    This machine is a kind of microcomputer programmable control, photoelectric sensing, pneumatic execution in one of the high-tech filling equipment.

    This machine is specially used for food, such as: white wine, soy sauce, vinegar, seasoning, vegetable oil, syrup, water and other edible liquid and pesticide chemical liquid filling. The filling machine is accurate, without bubbles and dripping. Can be used for 50-1000ml of various bottle types (including special-shaped bottles) filling


    Technical Features

    1. Touch-screen operation interface

    2. Multi-branch up and down movement filling, limited to prevent foam generation

    3. The filling accuracy can reach about 1%

    4. The filling cylinder has been processed and ground, and the unique filling valve design has no leakage

    5. No bottle, no canning, automatic stop function of bottle accumulation

    6. Design different positioning devices according to the actual situation of bottles

    7. Equipment cleaning is convenient, hateful tool folding, can also be online cleaning or high temperature sterilization

    8. All main parts and components are made by well-known manufacturers at home and abroad

    9. The equipment shell is made of SUS304# stainless steel

    10. Equipped with glass protective cover conforming to health and safety standards

    Advanced technology:
    1. The machine is suitable for the filling of containers with different specifications, and the filling specifications can be switched within a few minutes.
    2. Short filling cycle and high production capacity.
    3. No need to add equipment to replace the filling specifications, only need to make adjustments to complete.
    4. The user can select the filling quantity according to his production capacity to determine the number of filling heads.
    5. The touch-operated color screen can display the production status, operation procedures, filling methods, etc.
    6. Each filling head is equipped with a bottle cap device to ensure accurate positioning of the injection material.


    Technical parameters:

    ModelLTXG-2/1
    Range5ml-100ml
    Speed

    30-40bottles/minute

    Measurement precision

    ±1%

    Rated power

    1.5KW

    Working voltage

    220V

    Net weight

    700kg

    Contour Sizes

    2400×1640×1580mm
