Full Automatic CE Standard 100ml-1l Liquid Piston Filler Soap Liquid Filling Machine For Bottle Pail

The automatic servo piston filling machine is extremely flexible filler, is capable of filling accurately and rapidly any viscous material,such as detergent liquid,shampoo, hand soap,dishwashing liquid, shower gel and so on.

MAIN FEATURE
304 Stainless steel construction and the material contact parts.
Controlled by panasonic servo motor
Schneider touch screen and PLC
Accuracy+0.2% for 1000ML
Three-step filling to prevent liquid foaming and splashing
Use anti-drip filling head to prevent the last drop after filling and with automatic drop collection tray double safety system

Specification

Machine Details

ESG Valve
1.Easy disassembly three way connectors
2.ESG long life valve and high performace
3.ESG valve to gurantee the shut off accuracy and more stably
4.Sutiable for thin to viscous liquid

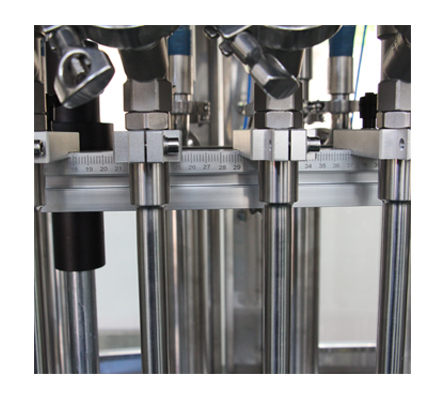

Tools Free Adjustment System
1.No need tools adjustment for different size of bottles
2.All adjustment parts with measurement and easy for record
3.Filling nozzles are easy for moving right and left for the slider system
4.Adjust the Filling Volume by one touch and operation by touch screen

High Quality Hose
Adapt world top brand of hose,such as TOYOX.
hose characteristics: With stand pressure With SUS316 reinforced coil and special reinforced structure, it has excellent stereotypes and is suitable for pressure and vacuum conveying High heat resistance It can withstand high-temperature fluids within 150 ℃, and can be used to clean the inside of food hoses and the floor (conditional restrictions)

No Dead Corner Top Tank.
1.The top tank is with round or semi round design no dead corner, more easy cleaning
2.Double jacket hopper optional
3.Mixing system optional
4.CIP system optional
5.304SS constuction material, 316SS for option

Automatic Piston Take Off System
1.Easy cleaning
2.No need tools to clean the pistons which guarantee the food grade,save time and labor.
3.CIP system is for option

Application
