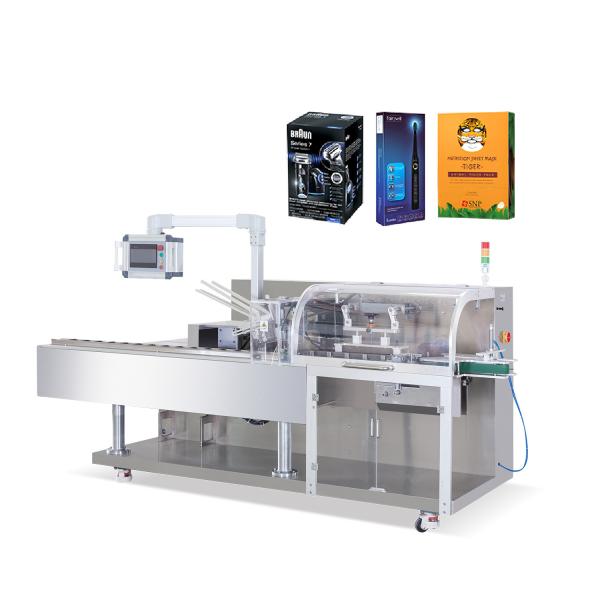

Automatic Cartoning Machine Pharmaceutical Blister Medicine
Cosmetic Toothpaste Boxing And Packaging Cartoner Machine
Automatic Box Cartoning Machine can achieve full automatic products
conveying feeding, box feeding, box opening, products pushing, box
folding, finished carton box package discharging. It is applied to
a variety of foods, toys, cosmetics, medicine, beverage,
electronics and daily necessities. It can save a lot of labour cost
which equals to 8-20 workers.

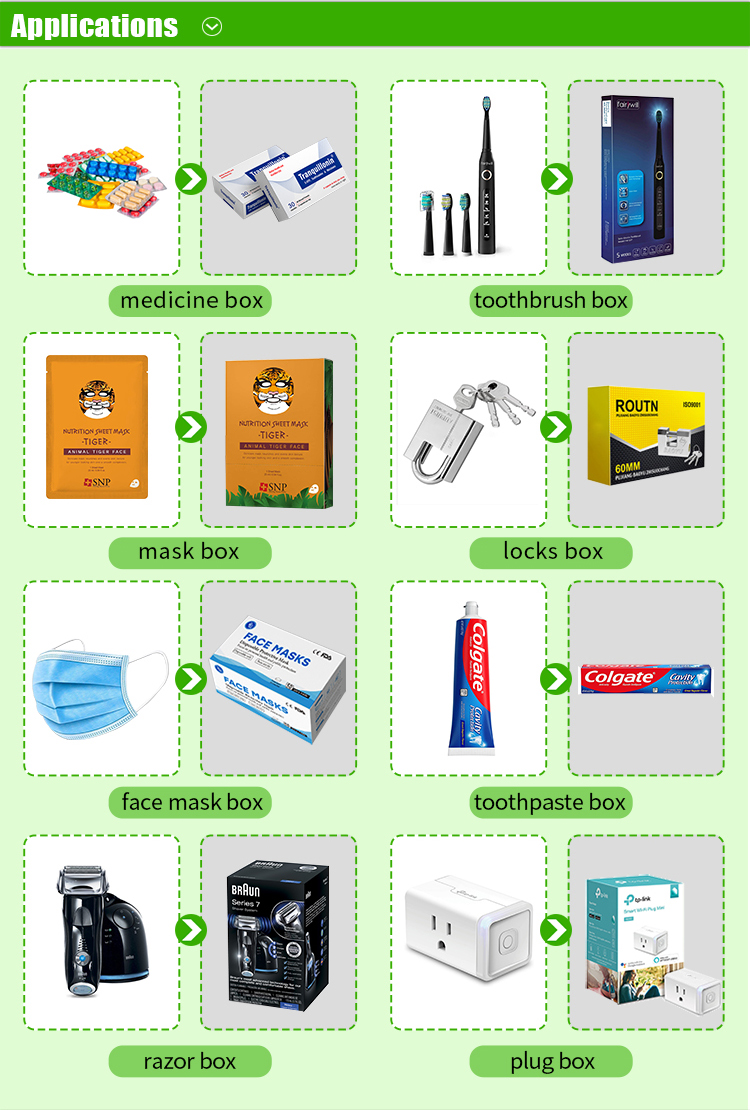

Applications:
1) Continuous mechanical feeding materials and carton, and working
of each function part are in harmony, stable and reliable.
2) When material do not reach correct position, the pusher has an
alarm and half facility for that, in order to ensure good quality
of carton packaging and safety in operation effectively.
3) Constantly moving carton-opening mechanism and pulling
carton-opening mechanism are more stable and reliable.
4) Vibrating material categorizing and feeding mechanism is stable
and reliable.
5) Half facility for air pressure and vacuum protection, when
caster opened, the halt facility will be checked automatically for
operating safety of the machine.
6) It is easy, convenient and quick to change and adjust product
size by hand wheel on instrument panel.
7) Variable frequency speed regulation, PLC automatic control,
Operating on the touch screen, words and numeric display, easy to
operate, stable coefficients in operation.
8) Overload protection for principal driving, indication of failure
diagnosis, and automatic halt of failure
Specifications:
| Model | ZH-120 |
| Weight in kg | 1100 |
| Steady production speed | 50-100 cartons/min |
| Grammage | Between 60-70g/m2 |
| Size range | (80-250) ×(90-170)mm (L×W) |
| Fold range | (1-4 )fold |
| Notice: The leaflet can be folded by the machine |
| Grammage | Between 250-350g/m2 |
| Carton Size mm | (65-125)×(30-85)×(12-50)mm |
| Standard power supply | 220V – 50Hz |
| Power consumption in KW | 0.75 |
| Air consumption | 120-160L/min |
| Compressed Air Pressure | 0.6MPa |
| Noise | <70 dB |
Competitive Advantage:
1. we have seven technicians who gets passport ready to travel all
over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine
problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor),
Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore
Machine Loading Job for shipment:
Clients' Site Traing and Adjusting Job:
Certification and Workshop:
