Automatic Cartoning Machine Model ZH-100 Packing For Blister Packaging​


Quick Detail:


1. Automatic Carton packing Machine passed CE Certification
2. Cartoner machine PLC and Touch Screen Control
3. Best Quality
4. It is adopted by programmed controller
5. With the windows operation interface


Description:


This machine is suitable for packing AL/PL Blister, bottle, Pillow Type Bags and other related similar content compact automatic leaflet folding, box opening and loading, batch number embossing as well as sealing technology processes. (Options hot-glue device extra)

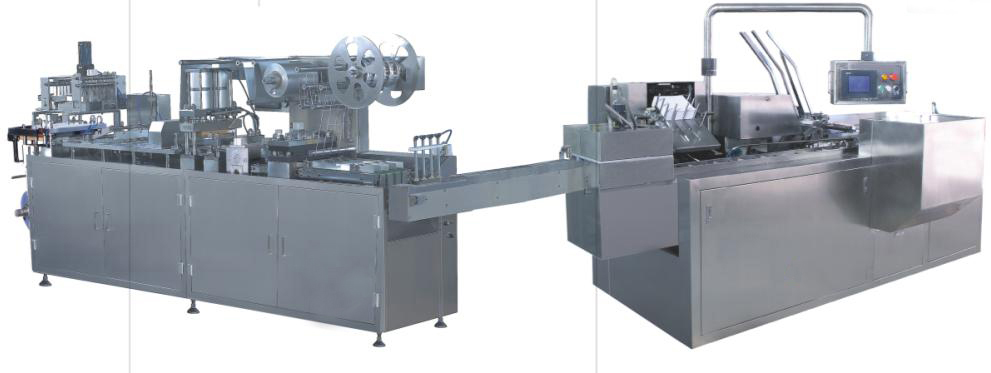

The machine adopts PLC Control. Optical detect every part of the machine. The machine will stop automatically and trouble display when machine running exceptional in order to solving trouble in time. This machine can be used separately and also connect with Blister Packaging Machine online.


Applications:


1) Continuous mechanical feeding materials and carton, and working of each function part are in harmony, stable and reliable.
2) When material do not reach correct position, the pusher has an alarm and half facility for that, in order to ensure good quality of carton packaging and safety in operation effectively.
3) Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable.
4) Vibrating material categorizing and feeding mechanism is stable and reliable.
5) Half facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.
6) It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.
7) Variable frequency speed regulation, PLC automatic control, Operating on the touch screen, words and numeric display, easy to operate, stable coefficients in operation.
8) Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure


Specifications:

Competitive Advantage:


1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho

Service Center All Over world:

Headquarter China: LTPM CHINA

Add:28th,Jiuan Rd,Jiuli Industrial Zone,Shangwang. Ruian city,Zhejiang,CHINA

America:
Exclusive Agent and Service center in USA:
JRH Pharma R&D Services
River Falls, WI,USA

Pakistan:
Multi Link
Add.:Karachi
Raki Trader
Add.: Lahore
Philippines:
Payo Manufacturing
Add: Davao
Colombia:
LTPM Colombia
Add: Bogota
Latino America:
LTPM Dominican Republic
Add: Domican republic

Our company is recognized as a major pharmaceutical equipment manufacturer and a distributor of packaging materials and pharmaceutical chemicals. Our company is founded in Rui'an, China, with 18 years' (Opened on 1996 year) experience in pharmaceutical industry. This allows us to expand our business in a well-planned manner. We now offer a comprehensive whole production line of quality pharmaceutical machines,packing materials and APIs at competitive prices. Our main products includes:
Fluid Bed Dryer
Spray Drying Machine
Powder Mixing Machine
Granulating Machine
Capsule filling machine
Blister Packing Machine
Cartoning machine
Tablet Pressing Machine
Bottling Machinery
Liquid Production Line
All kinds of lamination films for pharma packaging
Several kinds of APIs

Our Faith: Your Best Pharmaceutical Production Solution!

We offer whole pharmaceutical Production solutions from raw material processing to finished products. We manufacture and distribute different pharmaceutical machinery,packing materials and APIs with our own engineering teams and after-sales service teams.

Based on our experienced engineering team, we produce top quality machines, paking materials and APIs and also help customers select the best quality suppliers. Our company is a technology-driven company and focuses on producing high quality machinery. We employ 15 engineers on machinery design and technology improvement. Each engineer has at least ten years' machining and packaging area experience. We are your extra technical consultant center.

Quality Control:
Our company owns a quality control department to verify each product at different phases, from the procurement of parts to finished products. In order to offer clients the best quality products, we manufacture products in accordance with international standards, such as FDA, GMP and cGMP.

We are your best pharmaceutical production solution!
