Jelly Stick Blister Packing Machine For Liquid 6.2Kw 3500 Editions/Hour

Ask Lasest Price
Brand Name :	LTPM CHINA
Model Number :	DPP-Series
Certification :	CE
Price :	Negotiation
Payment Terms :	30% TT as deposit and 70% before shipping
Supply Ability :	25 sets
Delivery Time :	In 25 days after receiving the deposit

Add to Cart

Product Details
Company Profile

Jelly Stick Blister Packing Machine For Liquid 6.2Kw 3500 Editions/Hour

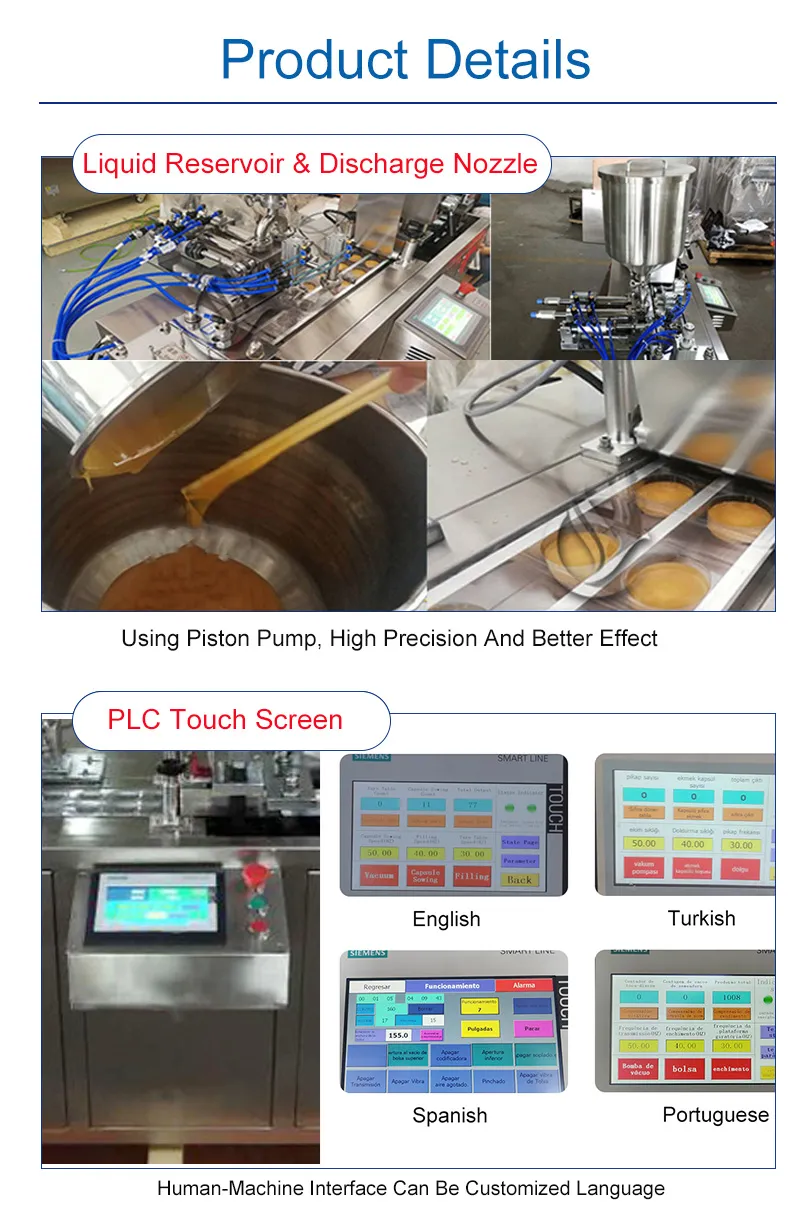

1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.

2. Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement. It adopts imported frequency inverter.

3. It adopts photoelectrical controlling system to make PS, PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.

4. It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.

Punch frequency	6-50times/min
Production capacity	35000-23000pcs/hour
Max. Forming area & Depth	240x70x26mm
Max. Forming area & Depth
Standard Stroke range	40-160mm
Standard plate size	80x57mm
Air pressure	0.4-0.6Mpa
Compressed air required	Air compressor>0.3m3/min
Total power supply	380V220v 50Hz 6.2Kw
Main motor	1.5KW
PVC hard Film	0.15-0.5x 160mm
PTP Aluminum film	0.02-0.035 x 250mm
Mould cooling	Tap water or recycling water
Overall Dimension(LxWxH)	3000x730x1600mm
Weight	1400kg
Noise	<75dBA

Company Profile

Our Company
- Since year 1996, LTPM CHINA had started manufacturing
Pharmaceutical and food packaging machines such as Capsule Filling
Machine, Ampoule Filling and Sealing Machine, Blister Packaging
Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag
Packaging Machine, Liquid Filling and Capping Machine etc. - LTPM
CHINA designs different types of packaging lines for customers,
including standard or non-standard models. - LTPM CHINA's machinery
= high automation + high precision + more energy saving +
satisfactory warranty and after-sales service + trusted brand
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Sales Team
Our Customers
FAQ
Q: What is the warranty period for your machine?A: 5 years free warranty.

Q: Are you a real factory/manufacturer?
A: Of course. Our factory is inspected by third party. We much
welcome you to visit us and free to pick you up form hotel. You
don't have time? We can use live video and you can visit us on
line.

Q: Is engineer available to serve oversea?
A: Yes, we can send engineers to your factory but all the fee will
be on buyers. In order to save your cost, we will send you a video
of full details machine installation and assist you till the end.

Q: How can we make sure about the machine quality after placing the
order?
A: Before delivery, we will running half hour of the machine to
checking the stability and sending you the testing video until you
sastisfy. We will setting all the parameters well. And also you can
arrange for quality checking by yourself or by your contacts in
China.

Q: We are afraid you won't send us the machine after we send you
the money?
A: We have our business license and certificate. And it is
available for us to use alibaba trade assurance service, protect
your money, machine qulaity and delivery are guaranted.
